HP Digital Sender Flow 8500 fn1 Document Capture Workstation series User Manual
Page 89
2.

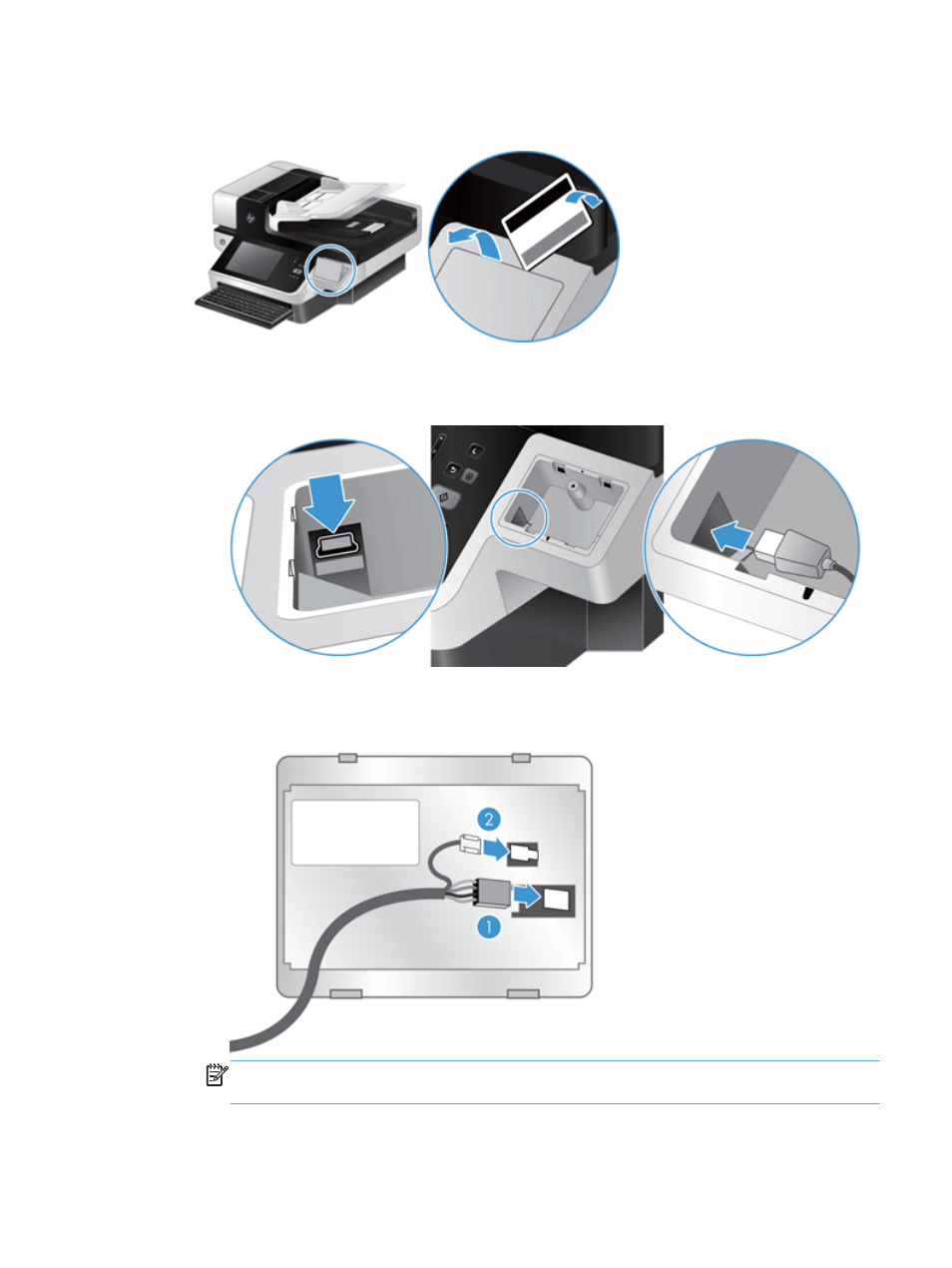

Insert the edge of a credit card into the groove at the top of the HIP cover and gently pry the cover
free; set the cover aside.
3.
Remove the HIP accessory from its packaging and install the accessory into the HIP.
a. Connect the accessory's USB cable into the connector on the left side of the HIP enclosure.
b. Connect the USB cable to the cable connector on the accessory (1), and then connect the
grounding connector to the grounding strip on the accessory, if applicable (2).
NOTE:
The connectors shown are for a proximity card reader. The cable connector for
your accessory might be slightly different, and might not include a ground connector.
ENWW
Install an accessory into the hardware integration pocket
81
