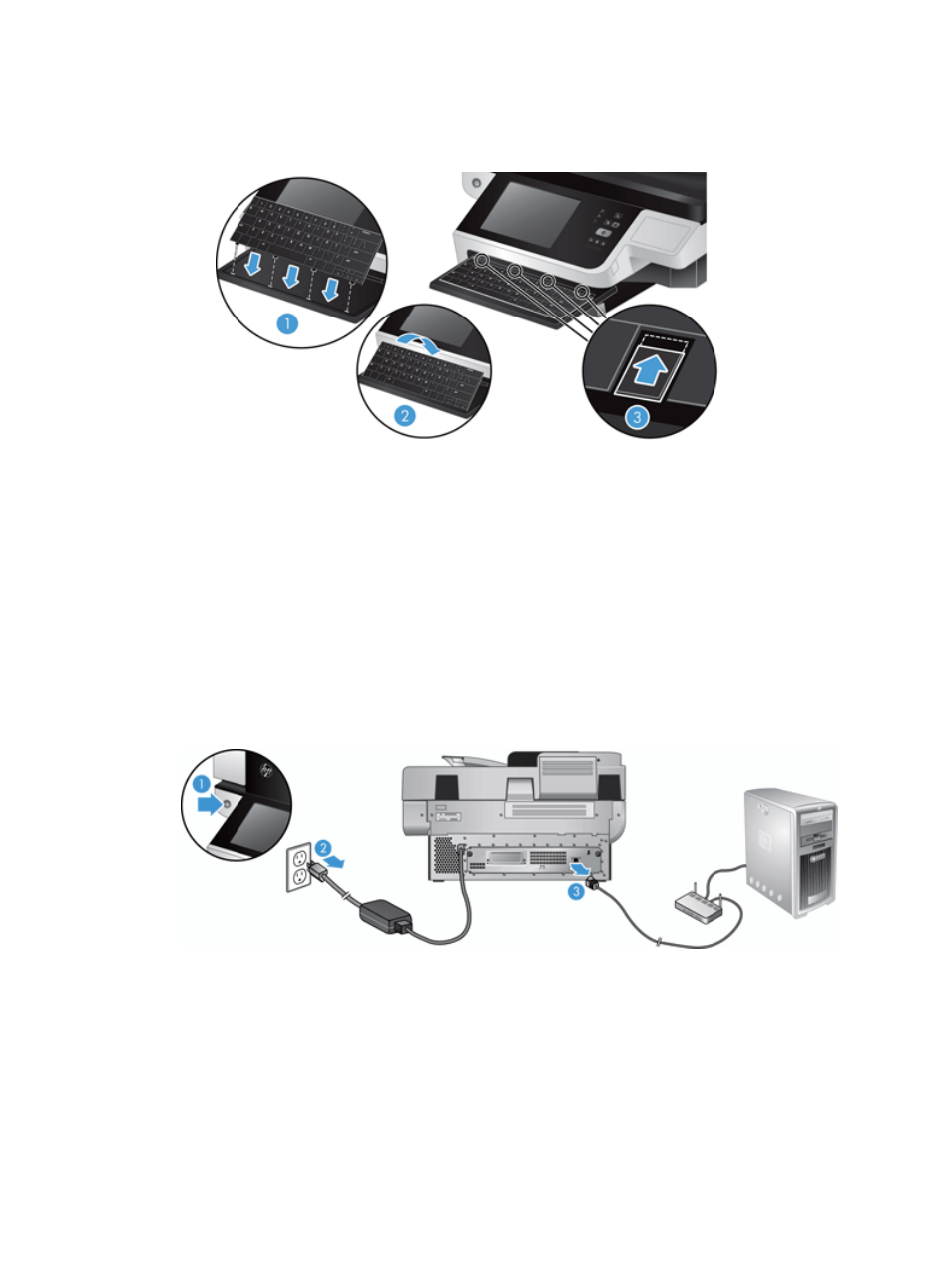

b. Position the new keyboard over the keyboard frame so the fixed tabs on the keyboard align
with the tab slots on the frame (1), gently push the keyboard against the keyboard frame (2),
and then push the four sliding tabs in to secure the keyboard (3).
4. Reconnect the power supply to the product, and then press the Power button to turn on the
product.
Replace the hard drive
HP recommends doing routine, scheduled backups as a best practice. Doing routine backups will
minimize data loss in the event of a hard drive failure.
To replace the hard drive, follow these steps.
1. Press the Power button to turn off the product (1), disconnect power from the product (2), and then
disconnect the Ethernet cable (3).
If used, remove the cable-style lock (sometimes called a “Kensington lock”).
76 Chapter 8 Replace and install components ENWW
