• A list of the volumes in the storage tier and details of the volumes (such as the name of the migration
group to which the volume belongs, the array group to which the volume belongs, and the RAID Level
and emulation type of the volume).
To view the storage tier properties:
1. In the navigation frame, select the Storage Tier Name object for which you want to view properties.
You can also select the Show Properties method in the method frame.
The Show Properties-Storage Tier Name subwindow displays, as shown in Figure 9-2.

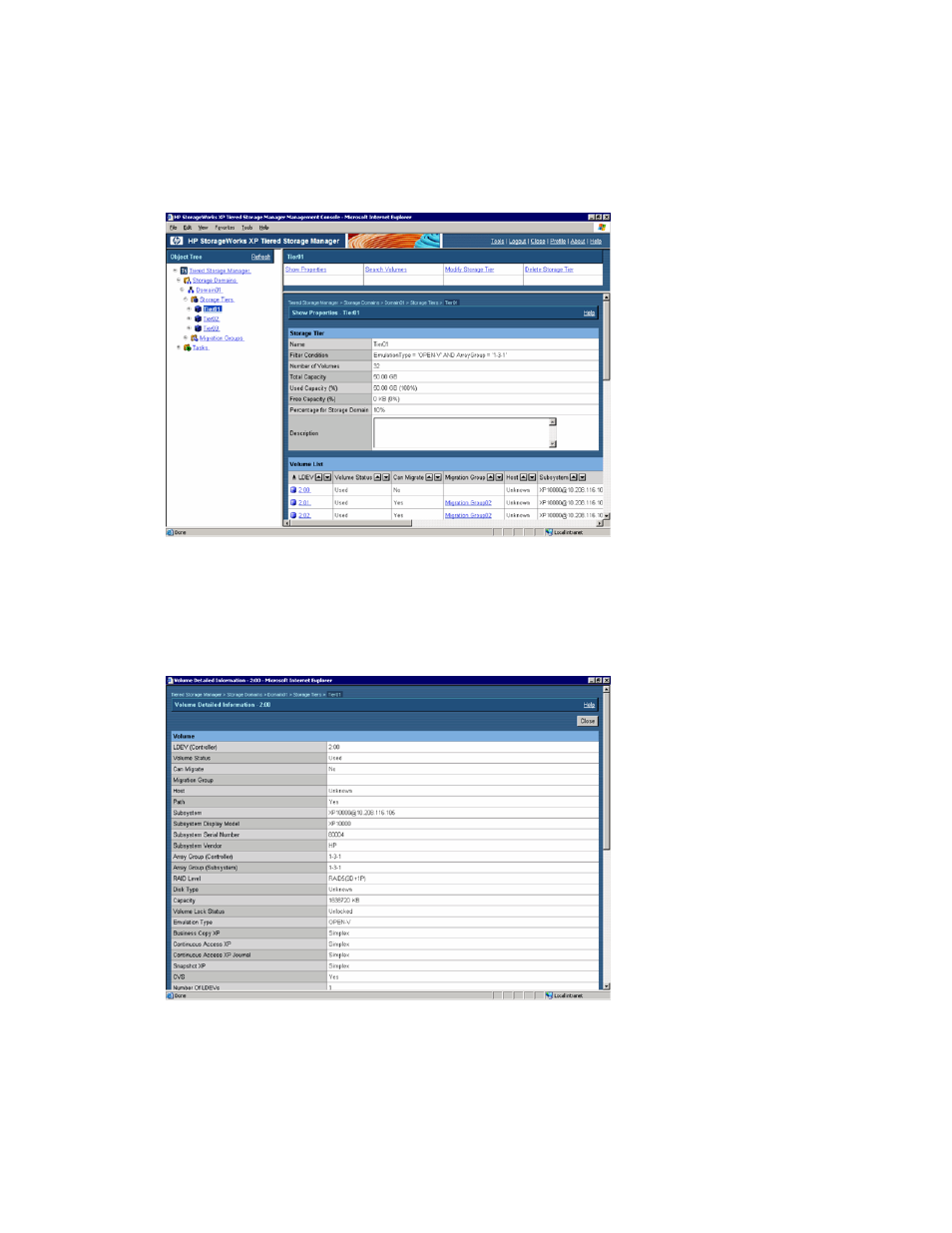

Figure 9-2 Show Properties-Storage Tier Name Subwindow
You can check the following information from the Show Properties-Storage Tier Name subwindow.
• Detailed information on the selected volume:
When you select LDEV in the Volume List, you can check the detailed information on the volume
(such as Array Group, RAID Level, and LDEV) in the Volume Detailed Information-Storage Tier Name
pop-up window, as shown in Figure 9-3.
Figure 9-3 Volume Detailed Information- Device Number Pop-up Window
• Detailed information on the selected migration group:
When you select Migration Group Name in the Volume List, you can check the detailed information
on the migration group that contains the selected volume, in the Migration Group Detailed
Information-Storage Tier Name pop-up window, as shown in Figure 9-4. You can also perform
operations such as adding and deleting volumes for the displayed migration group in this window.
