Figure 2-2 Main Window with List Objects Subwindow
2. Select the function you want to use from the list in the List Objects subwindow (in the Information frame
on the right) or from the list in the Object Tree (in the Navigation frame on the left).
2-6 Using Tiered Storage Manager Windows
This section describes the components of the Tiered Storage Manager windows and their associated tasks
(see Figure 2-3).

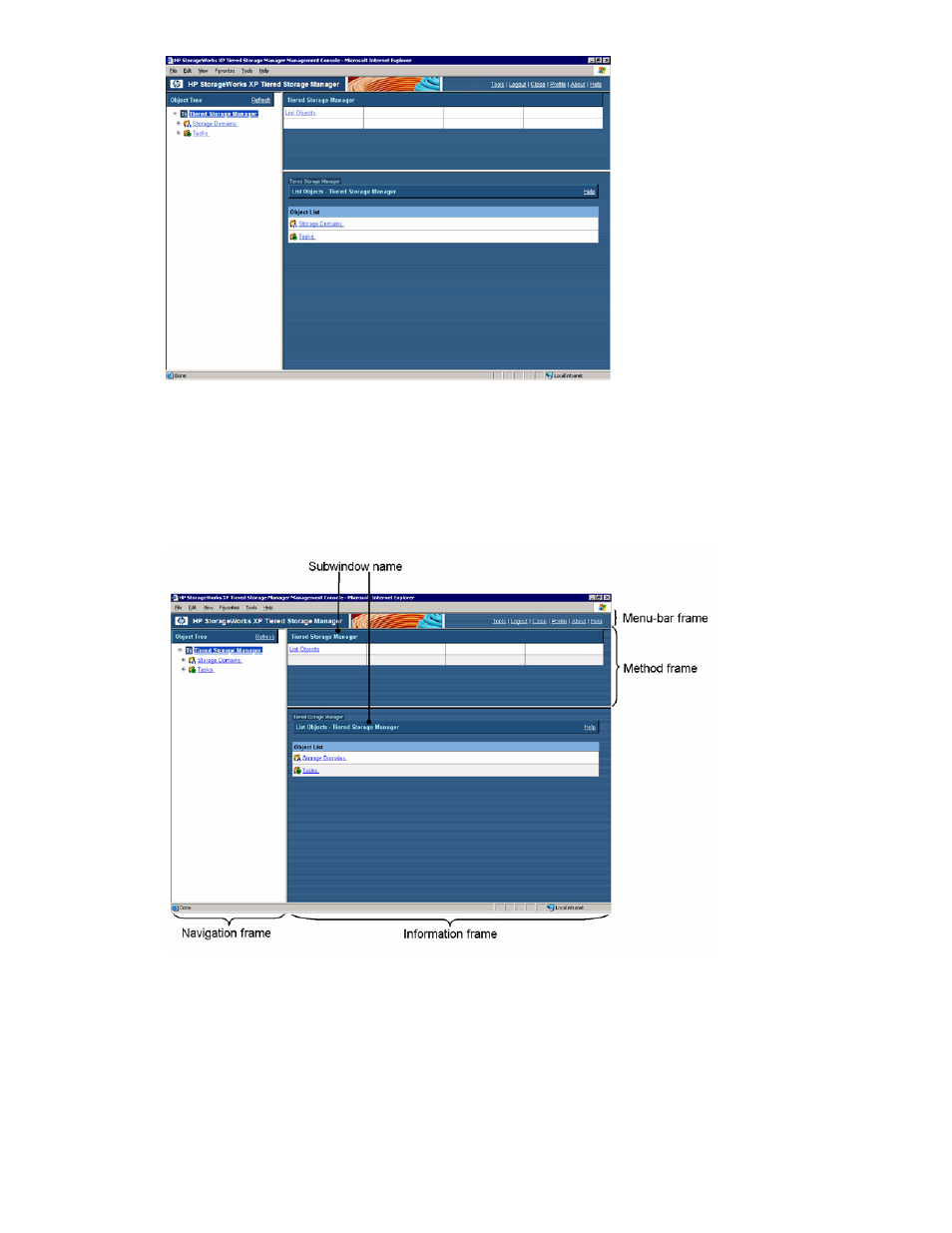

Figure 2-3 Tiered Storage Manager Window Frames
The Tiered Storage Manager windows include the following components, including frames, pop-up boxes and
subwindows. (In this manual, a panel displayed in a frame is called a subwindow.)
Menu-bar Frame (section 2-6-1 )
Use the Menu-bar frame to perform operations that affect Tiered Storage Manager as a whole, such as
logging out or displaying version information. When you select an item in this frame, the dialog box
associated with the selected item pops up.
Navigation Frame (section 2-6-2 )
