60

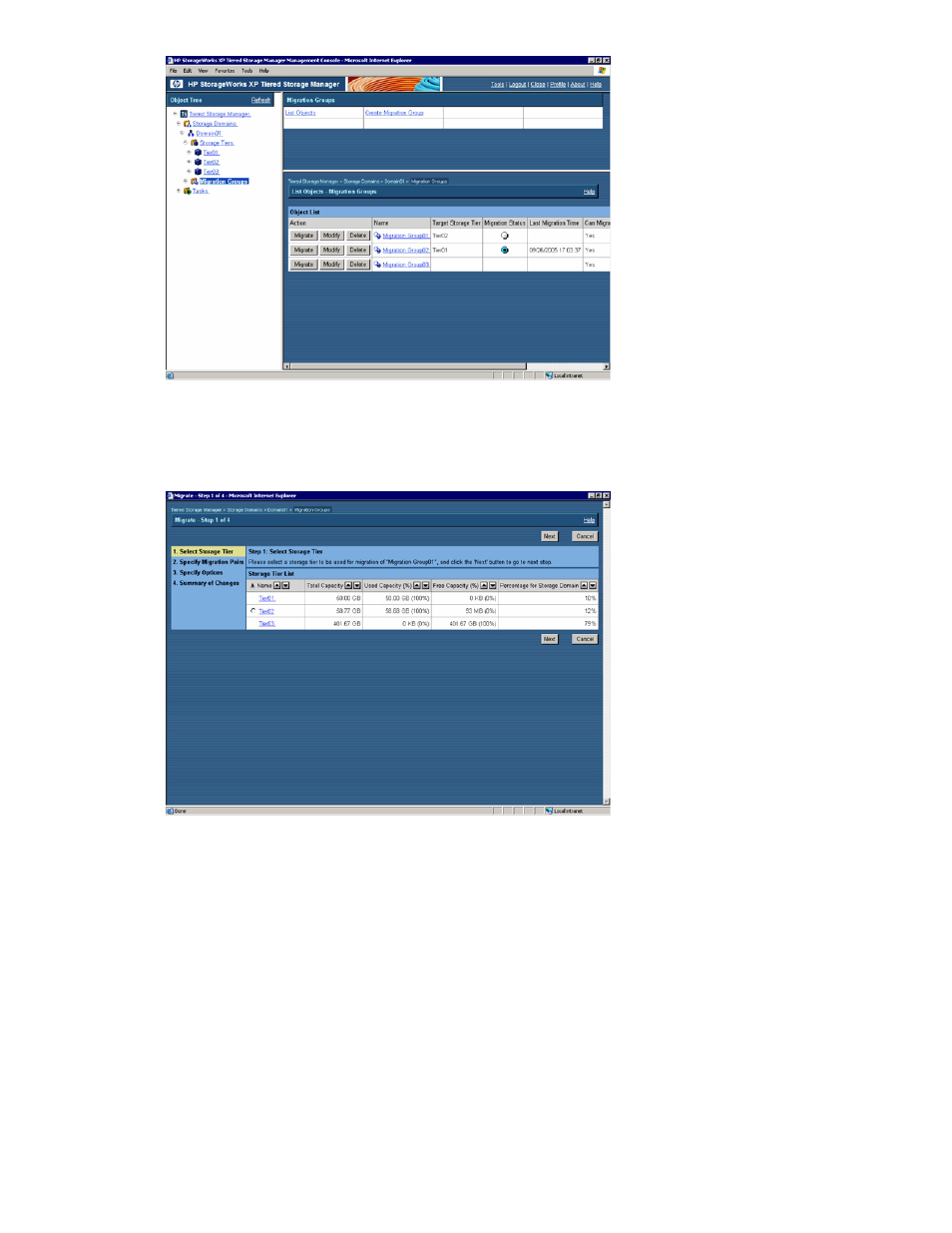

Figure 7-3 List Objects-Migration Groups Subwindow
2. Click the Migration button to the left of the name of the migration group you are migrating.
The Migrate-Step 1 of 4 pop-up window displays, as shown in Figure 7-4 below, allowing you to select a
migration target storage tier.
Figure 7-4 Migrate-Step 1 of 4 Pop-up Window
3. Select the target storage tier.
In the Migrate-Step 1 of 4 pop-up window, select the radio button that corresponds to the target storage
tier name.
4. In the Migrate-Step 1 of 4 pop-up window, click the Next button.
The Migrate-Step 2 of 4 pop-up window displays, as shown in Figure 7-5 below, allowing you to select
volume pairs of migration source and migration target volumes.
