Cabling 86

•

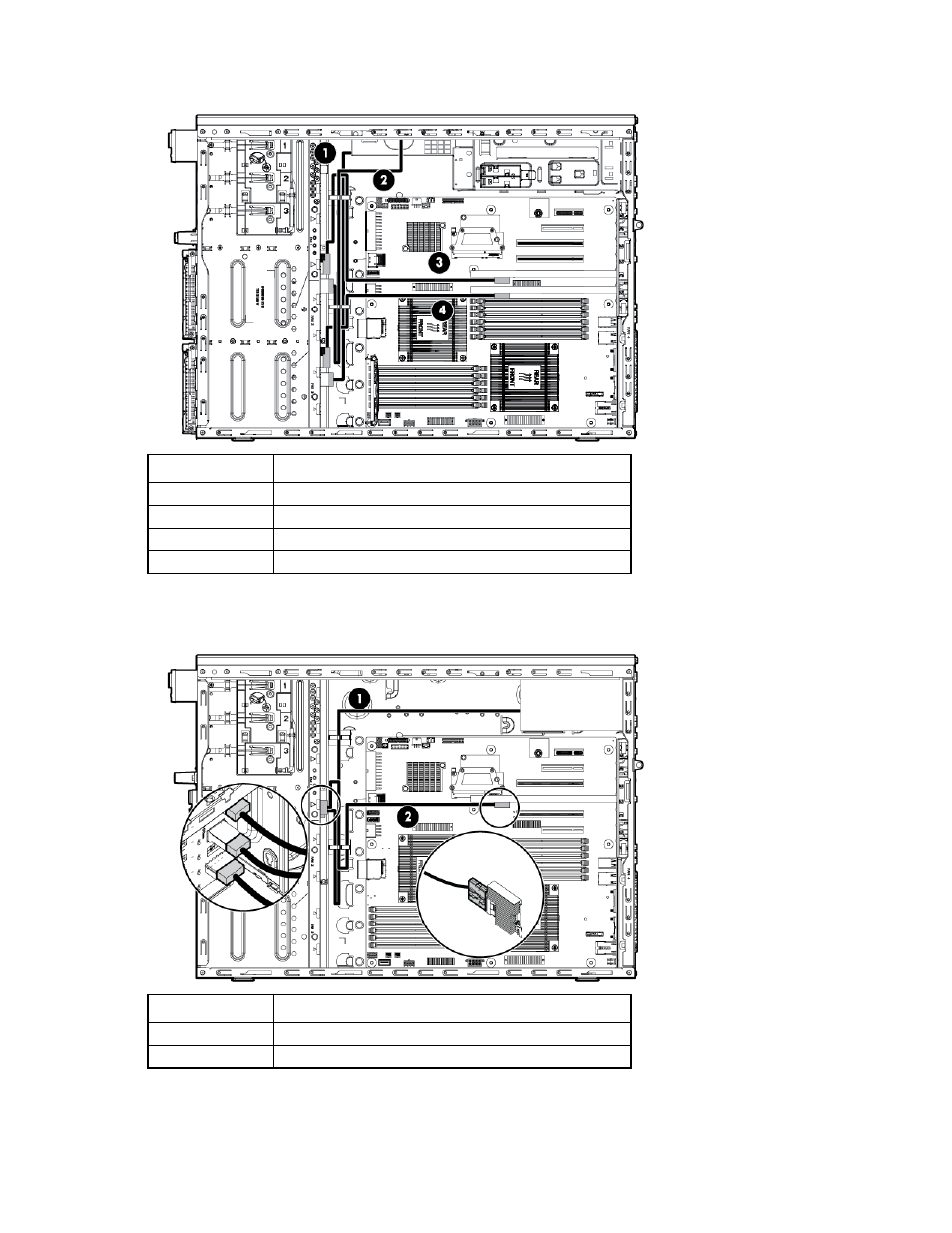

Four-bay + four-bay LFF drive cabling with two P222 controller cards

Item

Description

1

Box 2 power cable

2

Box 1 power cable

3

Box 1 Mini-SAS cable to storage controller

4

Box 2 Mini-SAS cable to storage controller

Hot-plug, eight-bay SFF drive cabling

Item

Description

1

Power cable

2

Mini-SAS Y-cable to storage controller
