Eight-bay SFF drive cage option
Install the optional eight-bay SFF drive cage in drive box 1 or box 2.
To install an eight-bay SFF drive cage, an optional Smart Array controller is required. If installing a second
eight-bay SFF drive cage option, the redundant power supply is also required. To obtain the options, contact
an HP authorized reseller.
To install the component:
1. Power down the server (on page 23 ).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Remove the front bezel (on page 24 ).
4. Place the server on its side.
5. Remove the access panel (on page 25 ).
6. If installed, remove the PCI air baffle (on page 27 ).
7. Remove the system air baffle (on page 28 ).
8. Remove any installed full-length PCI expansion cards (" Remove the full-length expansion board " on
page 29 ).
9. Remove the fan modules and the fan blank (on page 30 ).
10. Disconnect the drive cage cables:
a. Disconnect the Mini-SAS cable from the system board or from the storage controller option.
b. Disconnect the drive power cable from the drive cage power connector.

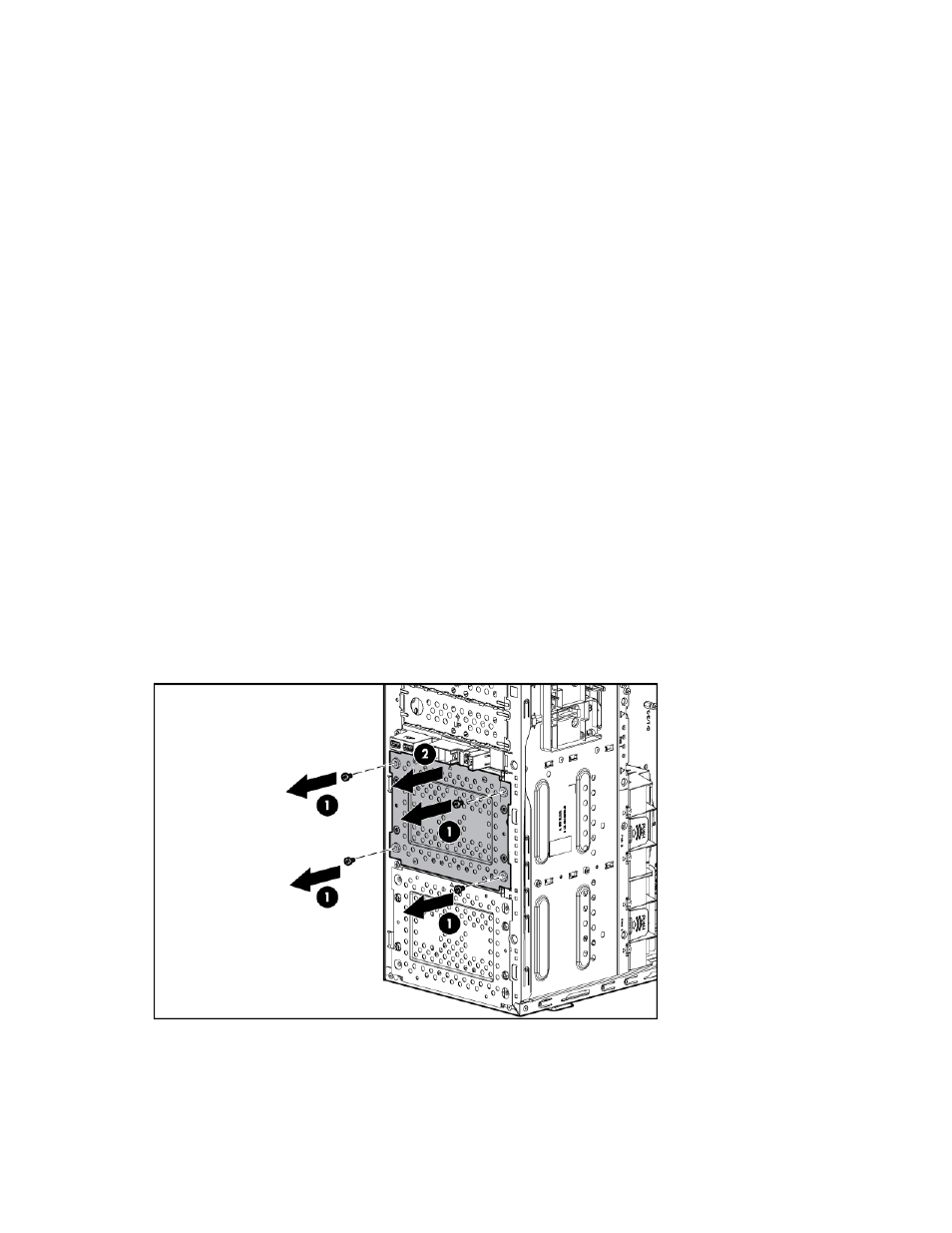

11. Remove the LFF non-hot-plug drive cage assembly.
12. Install the SFF hot-plug drive cage assembly:
