Hardware options installation 71

—

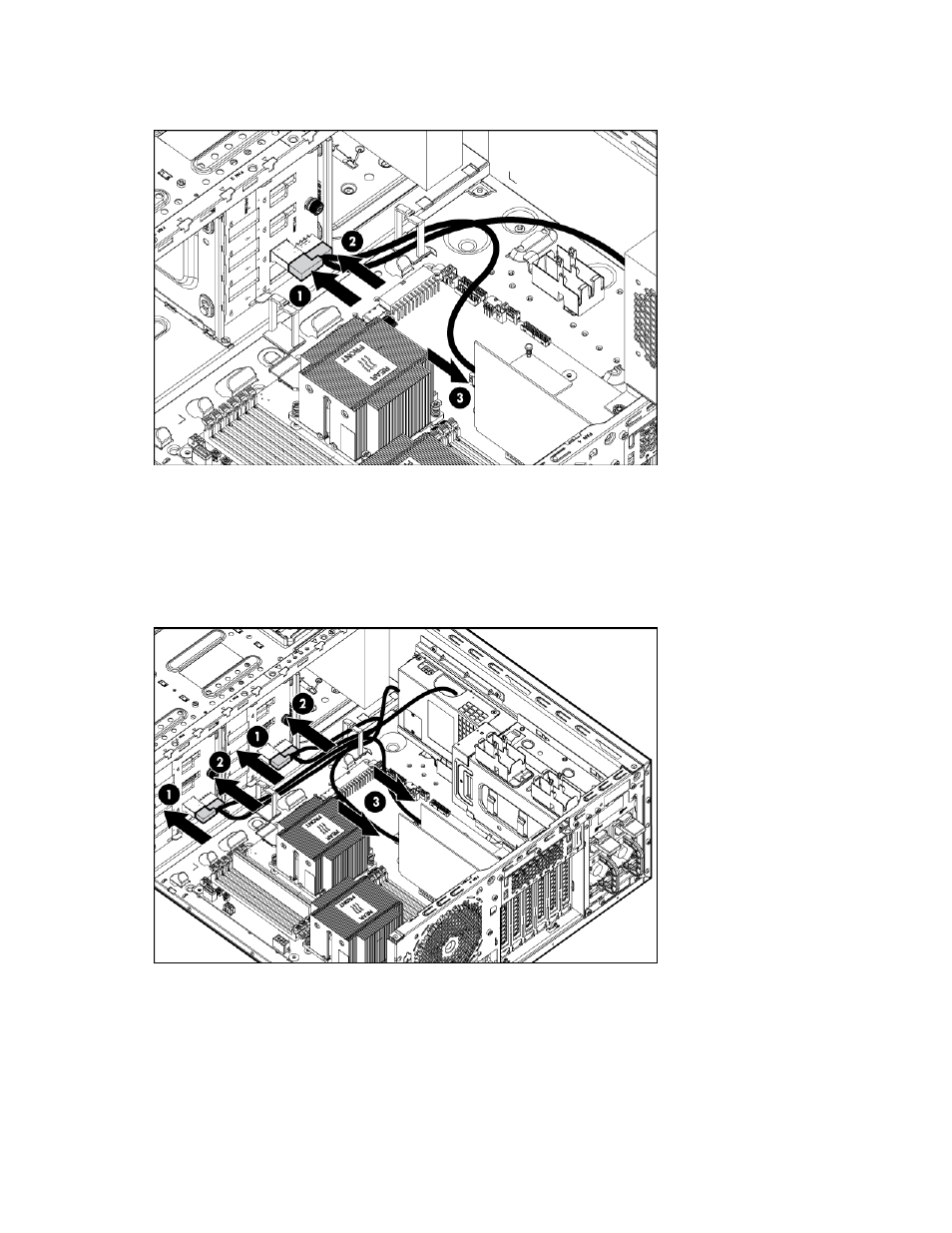

Route the opposite end of the Mini-SAS cable through the cable management clip, and then

connect the cable to the connector on the storage controller.

14.

If box 2 is installed, connect the drive cage cables to box 1 and box 2:

a.

Connect the Mini-SAS cable to the drive cage backplane.

b.

Route the drive cage power cable through the cable management clip, and then connect the cable
to the drive cage backplane.

c.

Route the opposite ends of the Mini-SAS cables through the cable management clip, and then
connect the cables to the connector on the storage controllers.
