Rear panel components – HP ProLiant ML350e Gen8 v2-Server User Manual
Page 10

Component identification 10

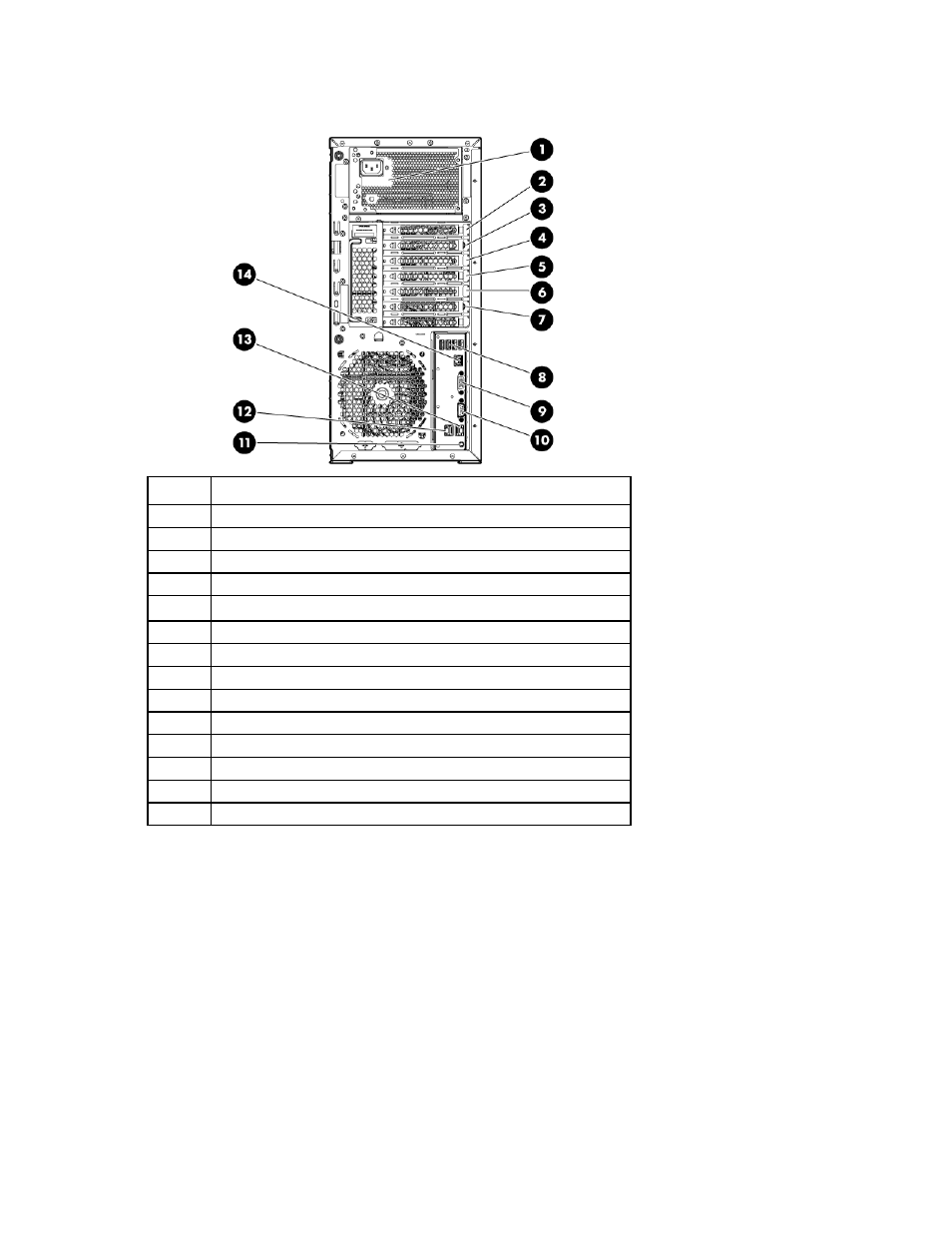

Rear panel components
Item
Description
1
Integrated power supply
2
Slot 6 PCIe2 x4(1) for processor 1
3
Slot 5 PCIe2 x8(4,1) for processor 1
4
Slot 4 PCIe3 x16(8,4,1) for processor 2
5
Slot 3 PCIe3 x16(16,8,4,1) for processor 2
6
Slot 2 PCIe3x16 (16,8,4,1) for processor 1
7
Slot 1 PCIe3 x8 (4,1) for processor 1
8
USB 2.0 connectors (4)
9
Video connector
10
Serial connector
11
UID/LED button
12
NIC connector 2
13
NIC connector 1
14
iLO connector
