Component identification 21

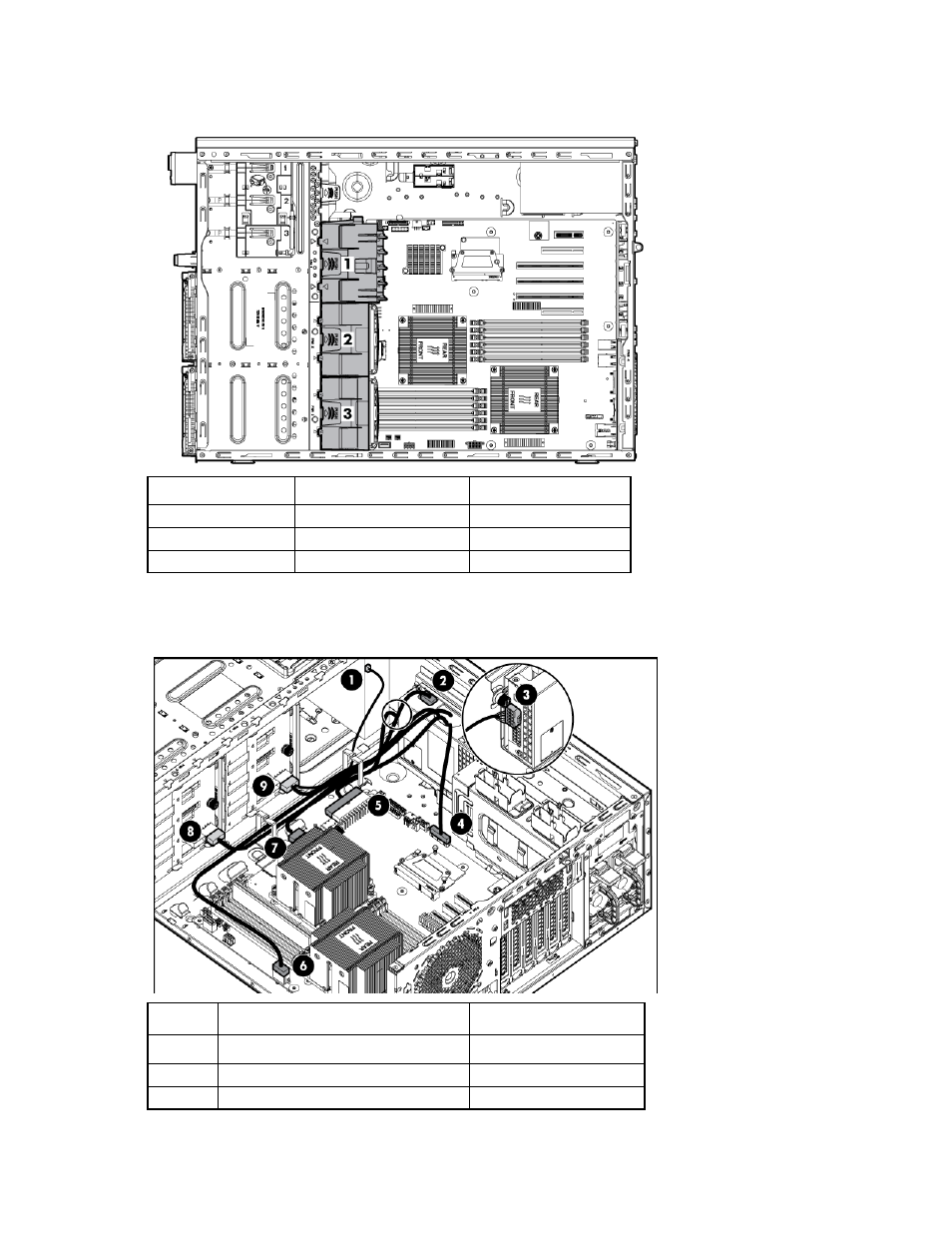

Fan locations

Item

Description

Configuration

1

Fan 1

Primary

2

Fan 2

Primary

3

Fan 3

Optional

Redundant power supply connectors

Item

Description

Connector identifier

1

Optical drive power connector

P7, P8, P9, P10

2

Processor 2 RPS backplane connector

P3

3

Box 2 RPS backplane connector

P5
