Hardware options installation 77
5. Remove the access panel (on page 25 ).
6. If installed, remove the PCI air baffle (on page 27 ).
7. Remove the system air baffle (on page 28 ).
8. Remove any installed full-length PCI expansion cards (" Remove the full-length expansion board " on
page 29 ).
9. Remove the fan modules and the fan blank (on page 30 ).
10. Install the Smart Array controller (" Installing an expansion board " on page 63 ).
11. Connect the common end of the Mini-SAS Y-cable to the controller option.
o For 4+4 LFF configuration, use the right-angle connector cable
o For 8 SFF configuration, use the straight connector cable
12. Route the two ends of the Mini-SAS Y-cable through the cable management clips, and then connect them
to the drive backplane.

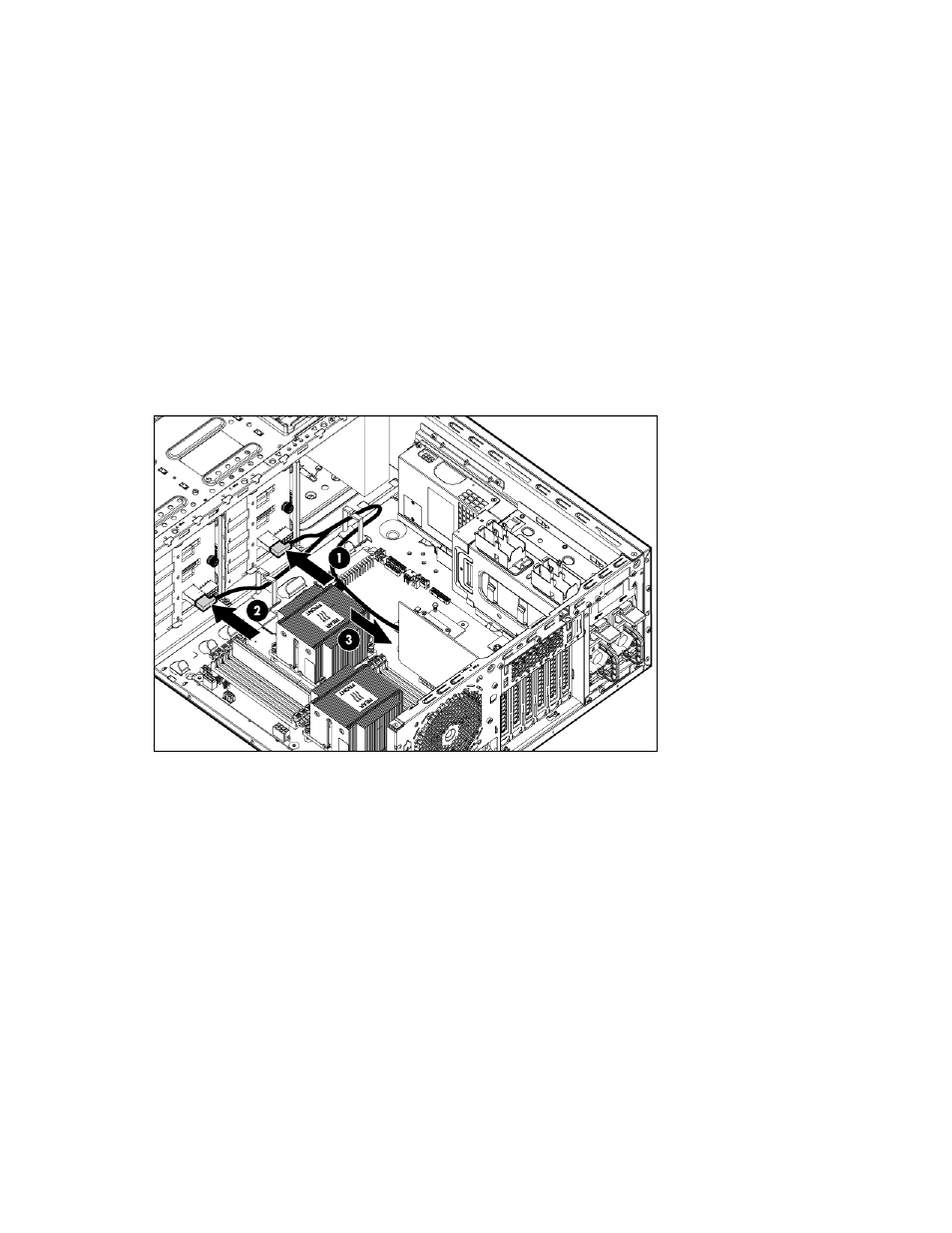

o Four-bay + four-bay LFF cable routing to boxes 1 and 2
