Hardware options installation 75

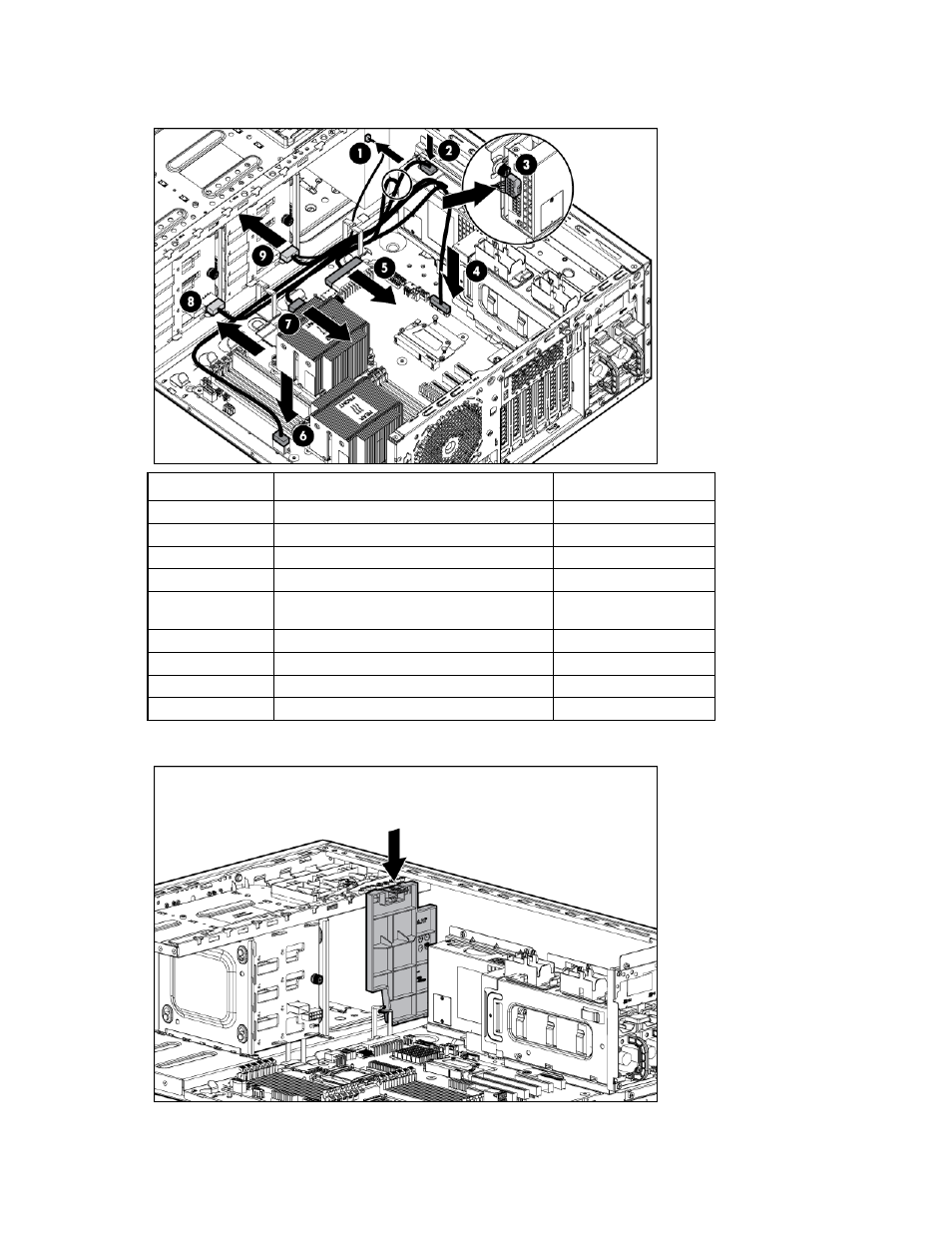

15. Route and connect the redundant power supply, drive cage, and optical drive power cables to the
system board.
Item Cables and connectors Connector identifier
1 Optical drive power cable connector P7, P8, P9, P10
2 Processor 2 RPS backplane connector P3
3 Box 2 RPS backplane connector P5
4
2x13 RPS control cable connector N/A
5 2x12 pin system board power cable
connector
P1
6 2x4 pin processor 2 power cable connector P3M
7 2x4 pin processor 1 power cable connector P2
8 2x5 pin box 2 power cable connector P5H
9
2x5 pin box 1 power cable connector BP1
16. Install the redundant hot-plug power supply cage rear blank.
