Connecting DisplayPort (480p/576p/720p/1080i/1080p)
1.
Connect the DisplayPort cable to the DP IN port on the display and to the DisplayPort OUT port on
the media player/computer, and then connect the display power cord.

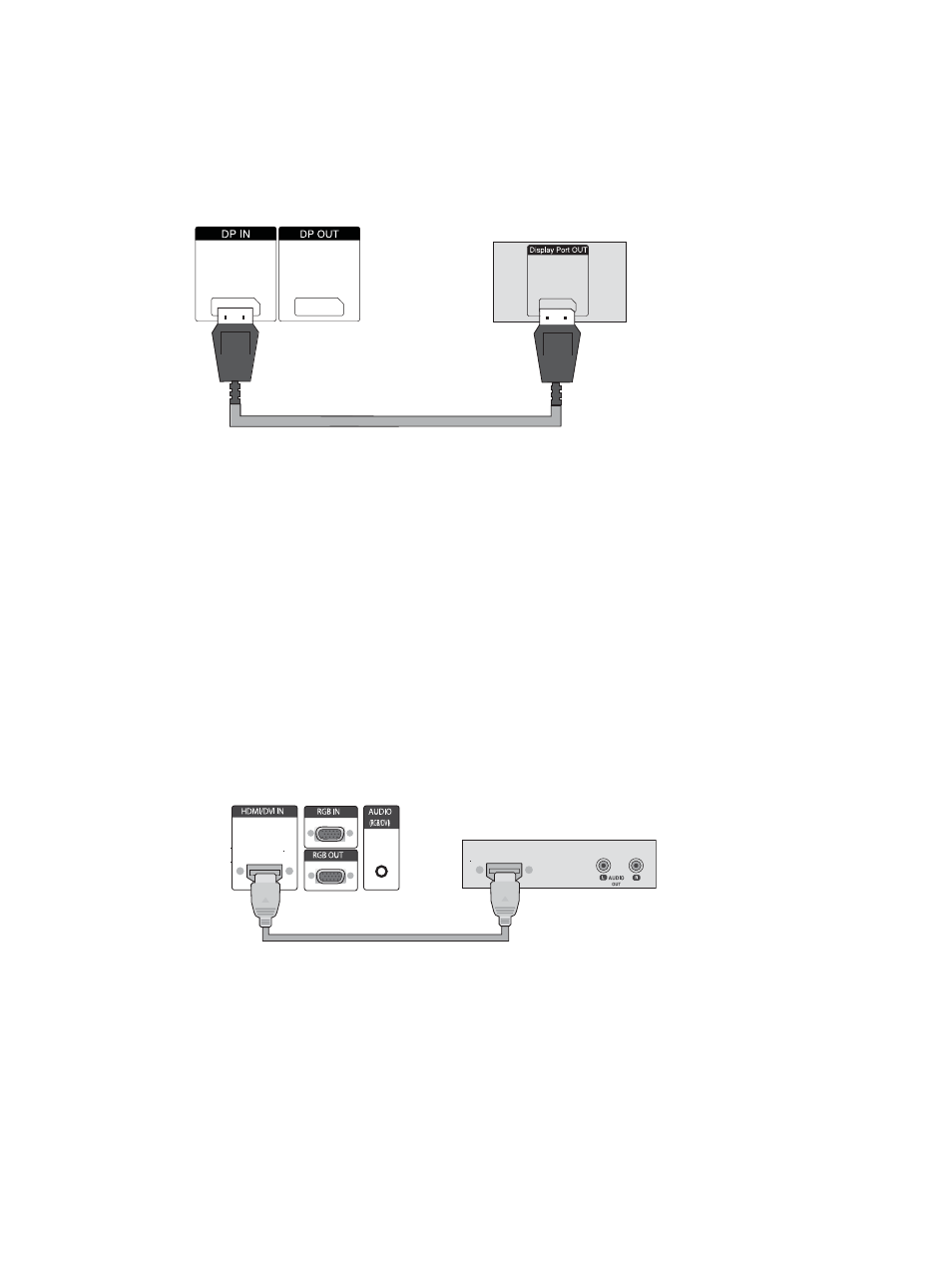

Figure 3-28
Connecting DisplayPort input to a media player/computer
2.
Select an input signal.
Press the INPUT button on the remote control, select the DP input signal, and then press the OK
button to save.
Or, press the
INPUT
button on the back of the display, select the DP input signal from the Input
List, and then press the
AUTO/SET
button to save.
Connecting HDMI (480p/576p/720p/1080i/1080p)
HDMI supports High Definition Input and HDCP. Some devices require HDCP in order to display HD
signals.
1.
Use one of the following examples to connect the HDMI input:
●
Connect an HDMI signal cable to the HDMI/DVI port on the display and to the HDMI port on
the media player/computer, and then connect the display power cord.
Figure 3-29
Connecting the HDMI to HDMI signal cable
