Identifying display components

The components of the display and their functions are identified in the following sections.

Display components

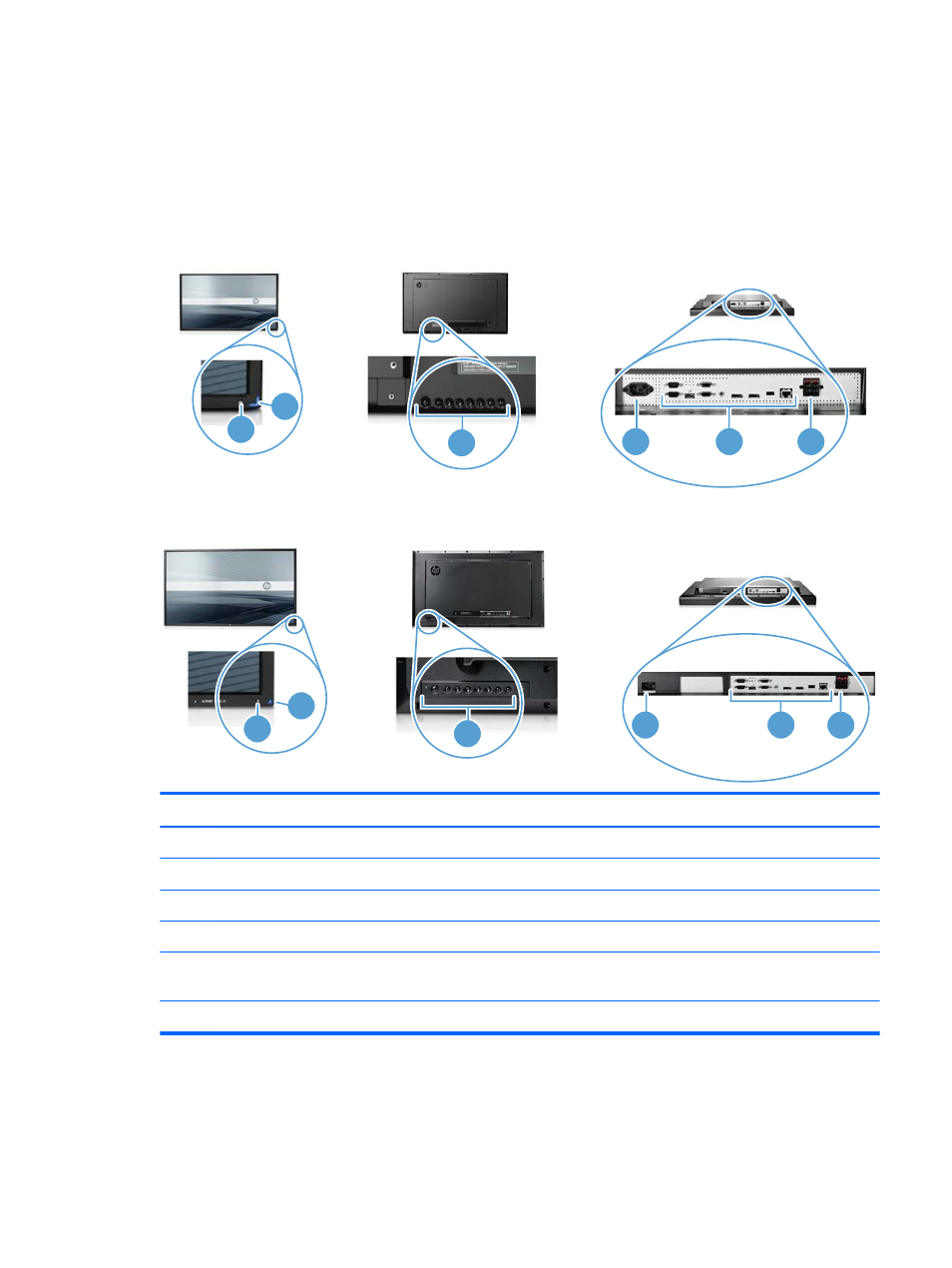

Figure 3-15

HP LD4201 and HP LD4210—Display components

2

4

5

6

1

3

Figure 3-16

HP LD4710—Display components

2

4

5

6

1

3

Component

Function

1

IR receiver

Receives signals from the remote control

2

LED indicator light

Light is blue when display is on, amber when display is in power saving mode

3

Display control buttons

Power and OSD control buttons

4

Power cord receptacle

Power cord receptacle to connect the display to an electrical outlet

5

Display signal ports

RGB IN/OUT, HDMI/DVI, RS-232-C IN/OUT, Audio IN, DisplayPort IN/OUT,
USB, LAN (HP LD4210 and HP LD4710 only)

6

External speaker connections

Connections for external speakers
