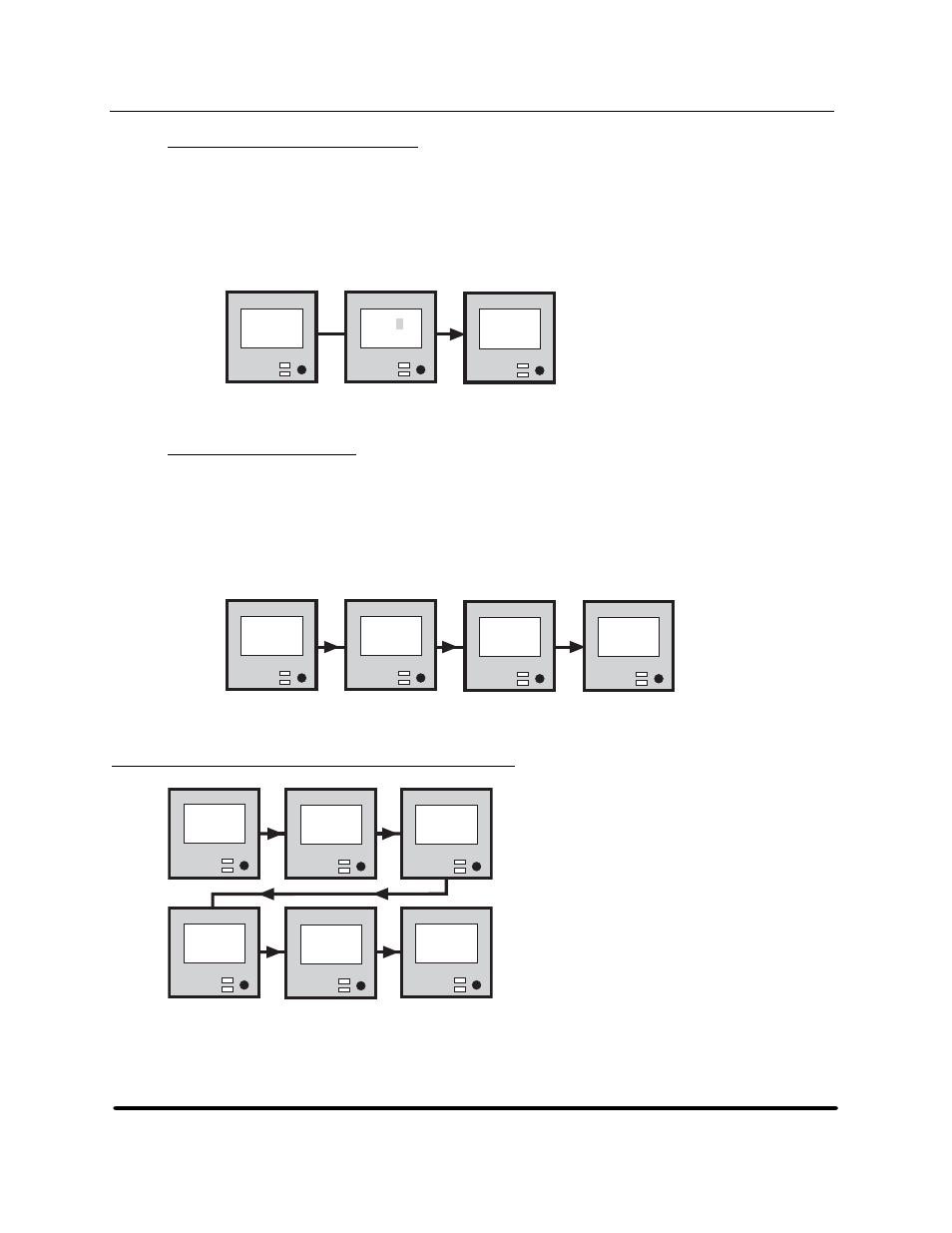

Chapter Five - SCSI Bridge Electronics

5.12.2 Configuring the options setting

If your configuration or host environment requires unique settings or special configurations, HP
can provide assistance and firmware configurations for specific platforms, software, or drives
through the use of this menu item. This setting is configured at

00001400

and should not be

changed by the user. As described, special situations may require that this setting be changed, but
you should consult the GCSC for technical assistance before changing this setting. Use the
Numeric Entry Method to enter the 8-digit hex value.

Options
00001400

PRESS to

Done

Options
00001400

PRESS to

Alter

Options
00001200

PRESS to

Alter


Figure 36

Options setting


5.12.3 Selecting a Baud rate


Four different baud rates are available for connecting to a serial terminal or terminal emulator.
Other communication parameters are:

No parity, 8 data bits, 1 stop bit

and

xon/xoff

flow control. The 3-pin serial connector on the back of the unit allows connection

to a PC serial port by using an extension cable. A communication package such as PRO-
COMM (with

xon/xoff

enabled) allows you to upgrade the flash firmware serially. Select a

baud rate by using the

Pick Entry method.

BaudRate
9600 bps

PRESS to

Alter

BaudRate
19K2 bps

PRESS to

Done

BaudRate
2400 bps

PRESS to

Scroll

BaudRate
1200 bps

PRESS to

Scroll


Figure 37

Baud rate

5.13 Setup 3 Offline Utilities Display Format Items

Hdwr
Test

PRESS to
Run

Enter
Set-Up 3

PRESS to
Select

Drive

Test

PRESS to
Run

Exit
Set-Up 3

PRESS to
Select

Load a
CodeTape

PRESS to
Run

Create a
CodeTape

PRESS to
Run

Figure 38

Setup 3 configuration items


HP StorageWorks DAT 72 (Model 5242-2SE) User's Guide

24

HP Part Number 528297-003 July 2005
