Chapter Three - Controls and Indicators
•
Steady green means a tape is loaded.
•
Fast flashing green means read or write operations are occurring.
3.2.2
The Media Caution LED (number 2 in Figure 7) is amber, indicating a fault condition:
•
Slow flashing amber indicates that the tape drive heads need to be cleaned or the tape
cartridge is wearing out.
•
Steady amber indicates a hard fault. The unit should be replaced. Call the HP Global
Customer Support Center.
3.2.3
Additional LED patterns
Any
Any
Activity – load
or unload
Activity – read
or write
Cartridge loaded
Cleaning Needed
signal
Fault
Power-on (starts with
two steady lights
Key
Off
Green
Amber
Flash Green
(1/2s on, 1/2s off)
Flash Amber
(1/2s on, 1/2s off)
Fast Flash Green
(1/4s on, 1/4s off)

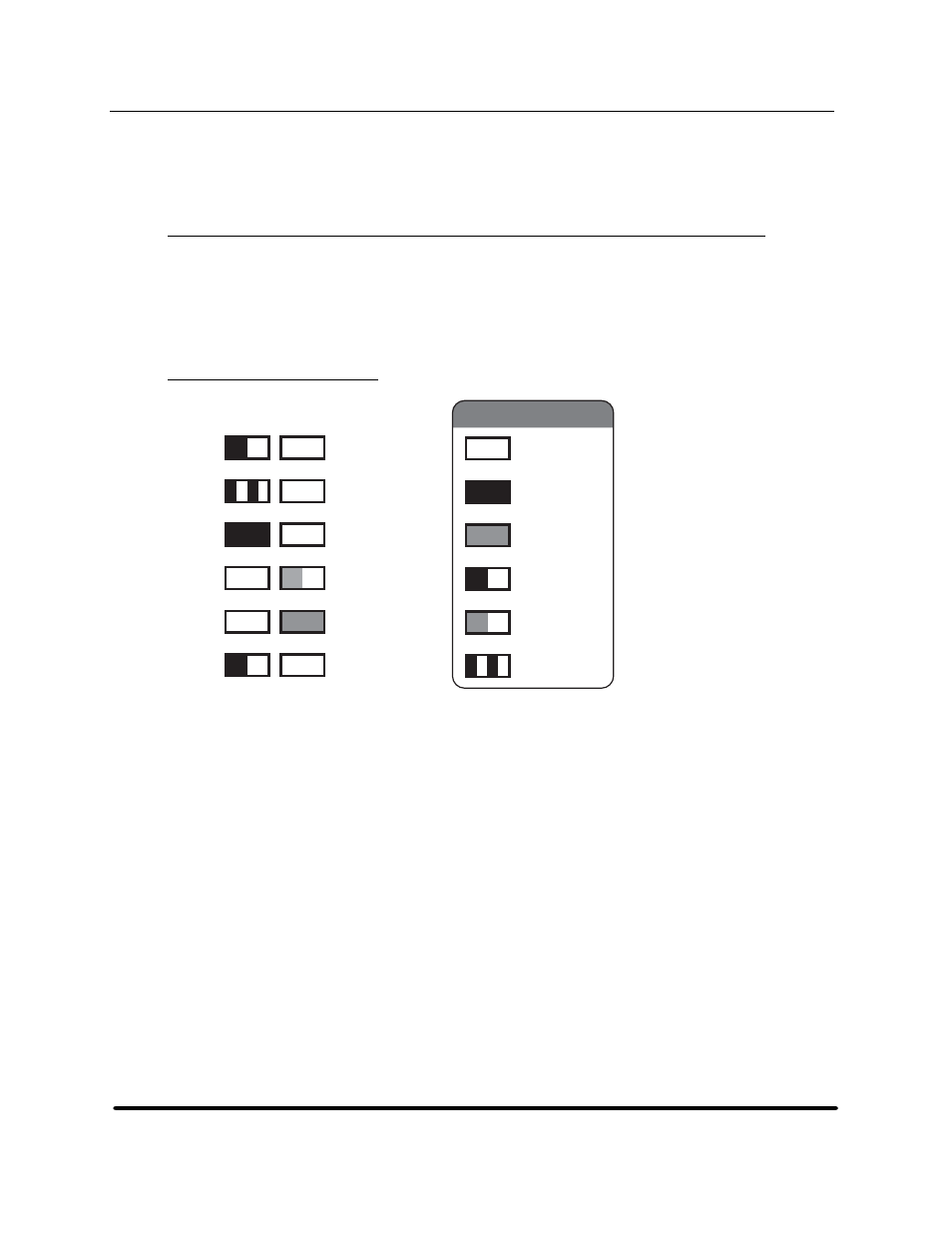

Figure 8
Additional 5242-2SE LED patterns
HP StorageWorks DAT 72 (Model 5242-2SE) User's Guide
9 HP Part Number 528297-003 July 2005
