6 American Dryer Corporation 450126 - 8

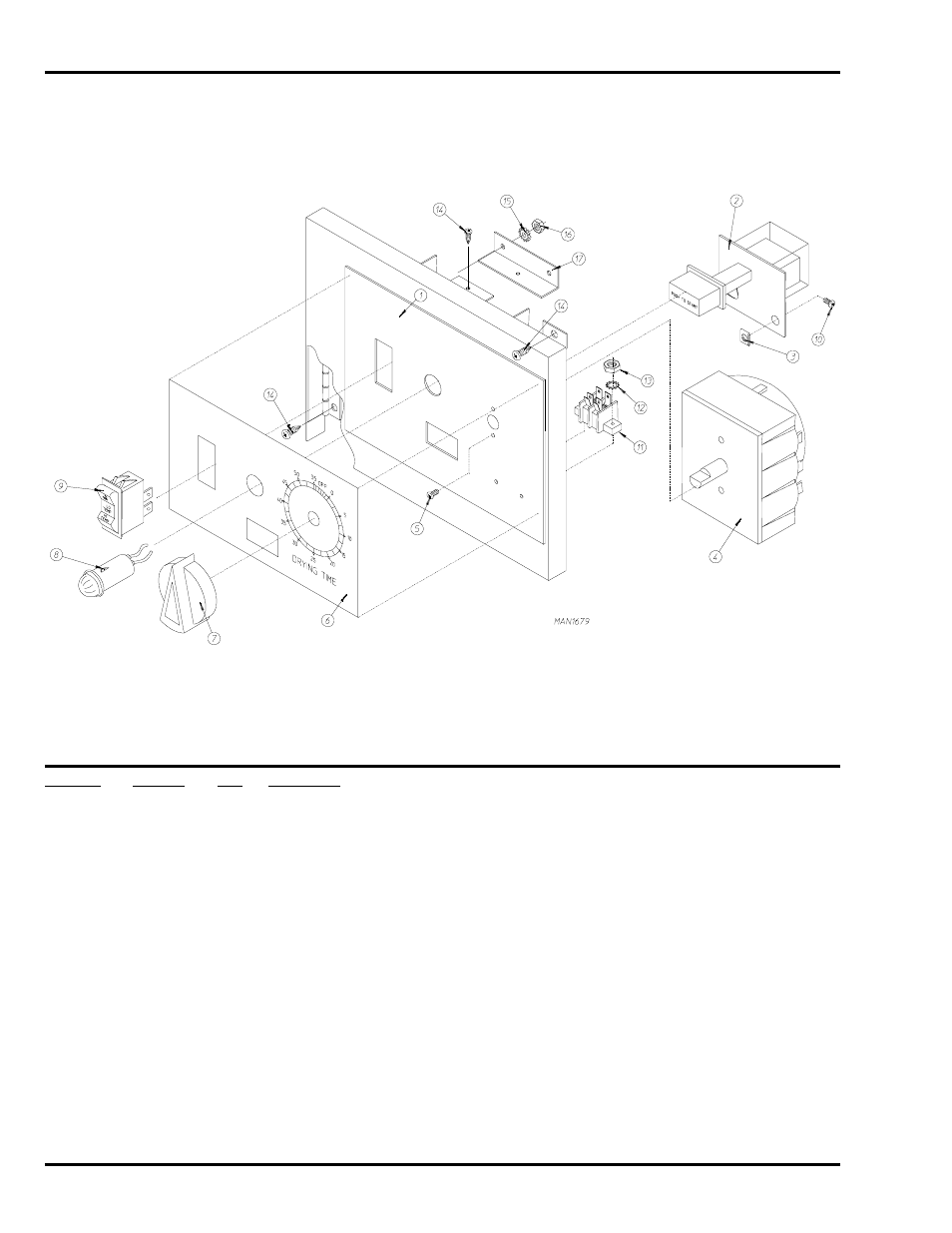

Single Timer Control Panel Assembly
Illus. No. Part No. Qty. Description
1 880940 1 Single Timer Control Panel Assembly Complete
(includes illus. nos. 1 through 17)
821015 1 Single Timer Control Panel ONLY
2 131917 1 Push-to-Start Relay – 24 VAC
3 154001 2 #10-24 Speed Nut
4 124025 1 60 Minute Timer – 24 VAC
5 150110 2 #8-32 x 1/4” Phillips Round Head Screw
6 112048 1 Single Timer Label
7 124103 1 Arrow Timer Knob
8 123005 1 Red Light Indicator – 24 VAC
9 122400 1 Rocker Heat Selector Switch
10 150207 2 #10-24 x 1/2” Round Head Machine Screw
11 120707 1 Terminal Strip
12 153010 2 #6 Star Washer
13 152000 2 #6-32 Hex Nut
14 150301 5 #8-18 x 7/16” Phillips Pan Head TEK Screw
15 153012 2 #8 Star Washer
16 152001 2 #8-32 Hex Nut
17 332257 1 Single Timer Drawer Stop
