4 American Dryer Corporation 450126 - 8

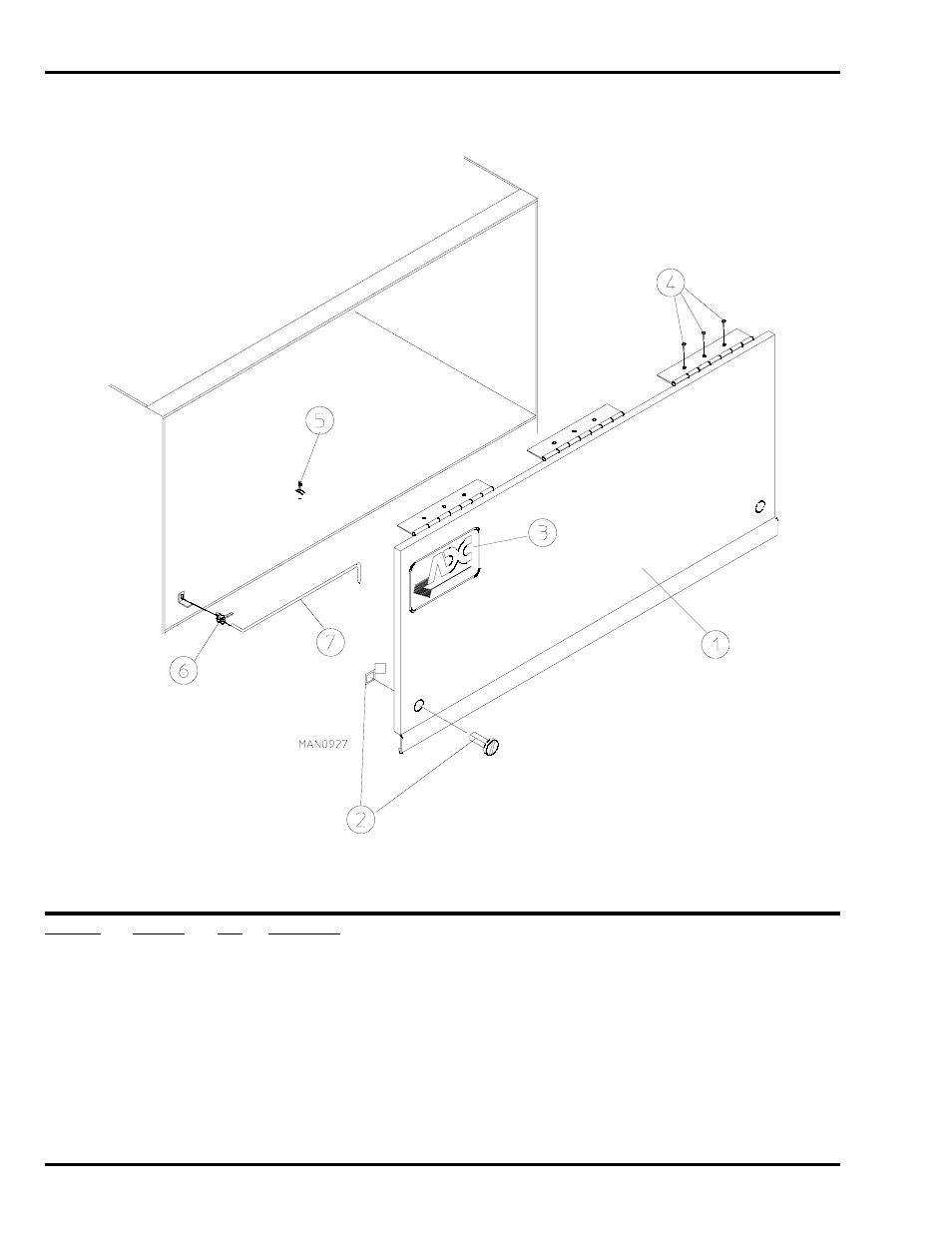

Control Door Assembly
Illus. No. Part No. Qty. Description
1* 820944 1 Control Door Assembly ONLY (for Gas Models Only)
820963 1 Short Control Door ONLY (for Steam Models Only)
2 160005 2 Spring Turn Latch (2-piece)
3 112360** 1 ADC Logo ONLY
870011 1 Logo Double Tape Kit
4 150415 9 #10-16 x 1/2” Phillips Round Head Crimptite Screw
5 102600 1 Control Door Support Rod Catch
6 102601 1 Control Door Rod Retainer Clip
7 102505 1 Control Door Support Rod
* Specify color when ordering.
** Logo tape kit not included and must be ordered separately.
