12 American Dryer Corporation 450126 - 8

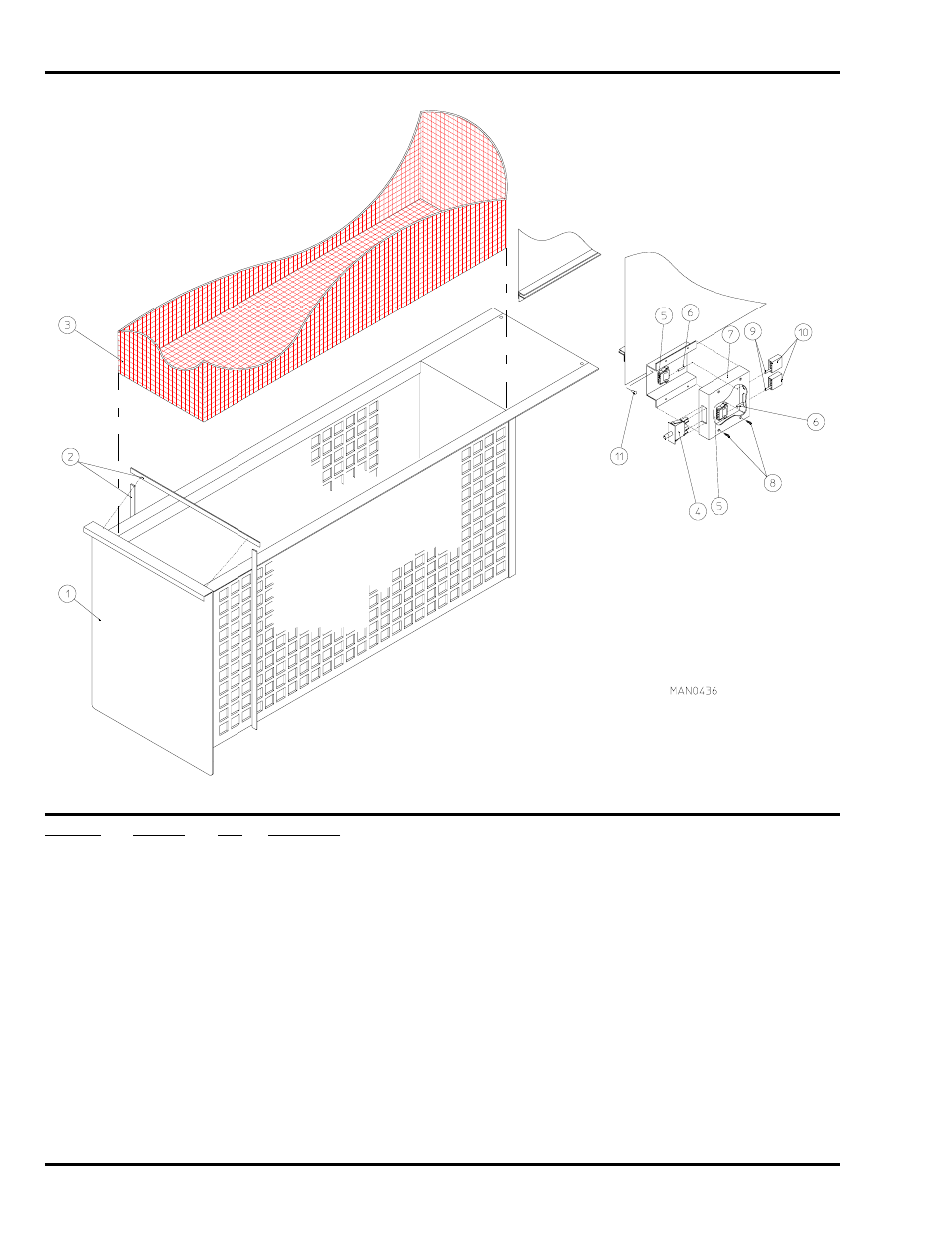

Lint Drawer / Lint Drawer Switch Box Assemblies
Illus. No. Part No. Qty. Description
1* 820955 1 Lint Drawer Assembly Complete
(includes illus. nos. 1 and 2)
2 117602 7 Noise Suppressor Tape (sold by the foot)
3 820925 1 Lint Screen Assembly
4 122116 1 Lint Drawer Switch
5 122605 2 4-Pin Socket Connector
6 122701 8 Socket Terminal
122801 1 Pin / Socket Extraction Tool
7 800264 1 Lint Drawer Switch Box Assembly Complete
(includes illus. nos. 4 through 7)
304034 1 Lint Drawer Switch Box ONLY
8 150301 4 #8-18 x 7/16” Phillips Pan Head TEK Screw
9 122700 8 Pin Terminal
10 122604 2 4-Pin Connector
11 150301 2 #8-18 x 7/16” Phillips Pan Head TEK Screw
* Specify color when ordering.
