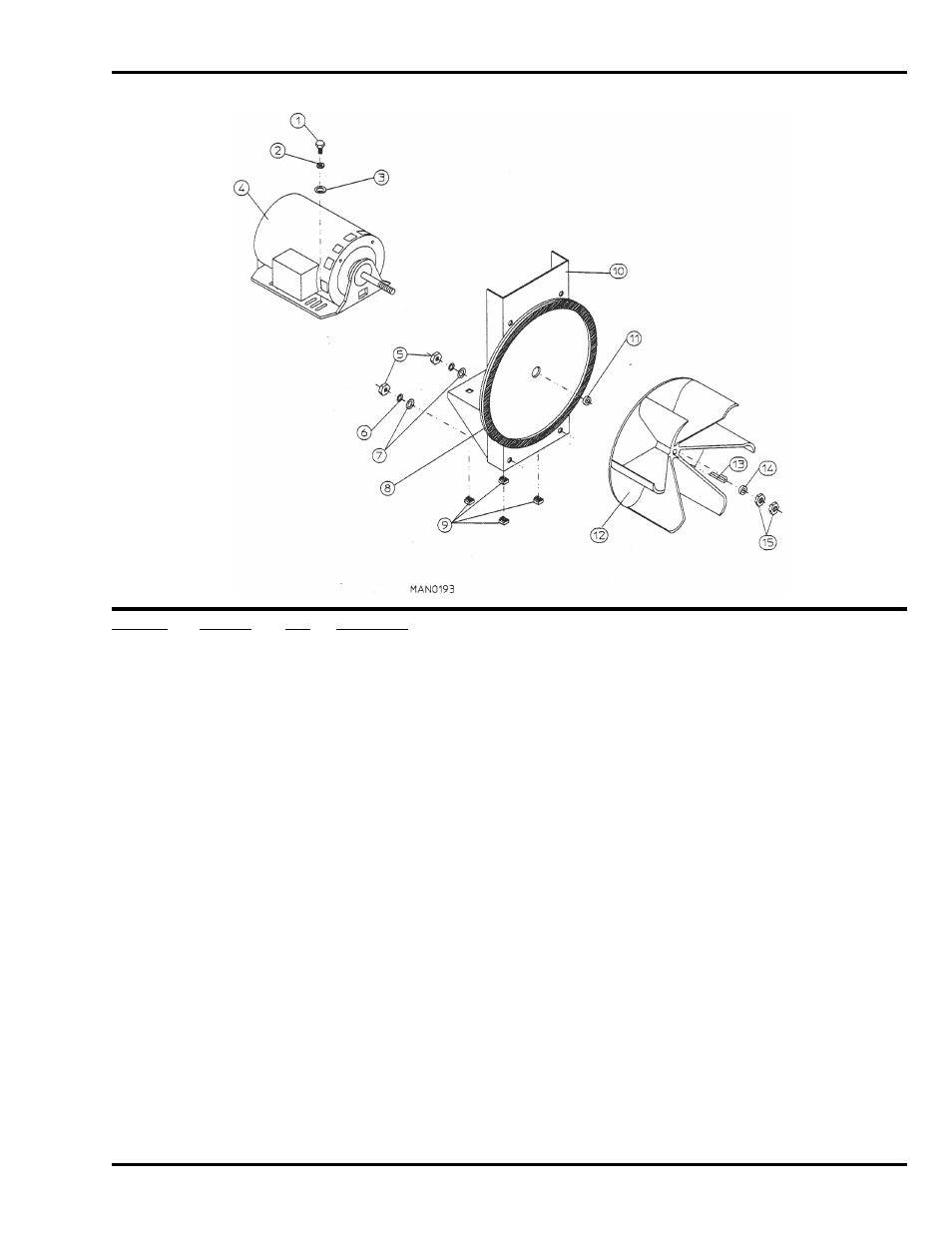

Blower Motor Mount Assembly
For 60 Hz Gas Models ONLY
Illus. No. Part No. Qty. Description
1 150501 4 5/16-18 x 3/4” Hex Head Machine Bolt
2 153002 4 5/16” Lock Washer
3 153001 4 5/16” Flat Washer
4 100051 1 3 hp 208 / 230 / 460 / 3ø / 50 / 60 Hz Motor (56Z frame)
5 152004 4 5/16-18 Hex Nut
6 153002 4 5/16” Lock Washer
7 153001 4 5/16” Flat Washer
8 117600 4 Noise Suppressor Tape (sold by the foot)
9 154000 4 5/16-18 Tinnerman Nut
10 880828 1 3 hp Blower Motor Mount ONLY (56Z frame)
(for models mfd. as of September 11, 1992)
820924 1 3 hp Blower Motor Mount ONLY (56Z frame)
(for models mfd. prior to September 11, 1992)
880829 1 3 hp Blower Motor Mount Assembly Complete
(for models mfd. as of September 11, 1992)
(includes illus. nos. 1 through 4 and 8 through 15)
820942 1 3 hp Blower Motor Mount Assembly Complete
(for models mfd. prior to September 11, 1992)
(includes illus. nos. 1 through 4 and 8 through 15)
11 153063 1 Motor Washer
12 100609 1 20” Aluminum Impellor (Fan / Blower)
13 100703 1 1/2” x 1/2” x 2” Key
14 153063 * 5/8” Motor Washer
15 152006 2 1/2-20 Left-Hand Jam Nut
* Replace in matched sets (both belts).
IMPORTANT: For voltages higher than 460v, contact the factory for correct part number of motor or motor mount assembly.
