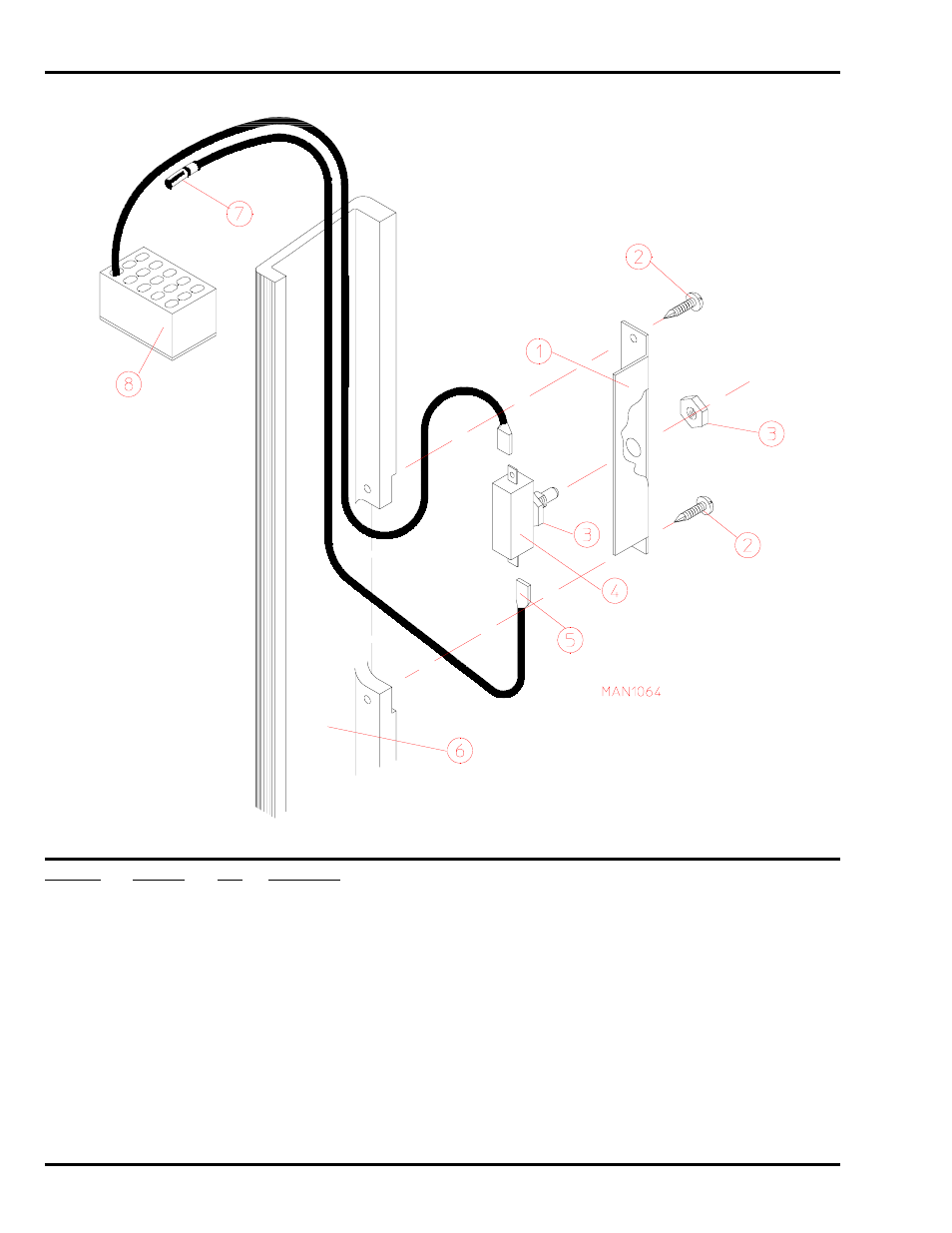

Main Door Switch Assembly
Illus. No. Part No. Qty. Description
1 313208 1 Door Switch Bracket
2 150415 2 #10-16 x 1/2” Phillips Round Head Crimptite Screw
3 152003 2 3/8-32 x 1/2” x 1/16” Door Switch Nut
4 136995 1 Door Switch
(for models mfd. as of June 26, 1992)
137006 1 Door Switch
(for models mfd. prior to June 26, 1992)
5 121028 2 1/4” x .032 Insulated Terminal
6 180156 1 35” Granite Main Door Hinge Block
(for models mfd. as of March 8, 1993)
180155 1 35” Gray Main Door Hinge Block
(for models mfd. prior to March 8, 1993)
7 122705 2 Socket Mate to Split Pin
8 122626 1 15-Pin Cap Housing ONLY (M / L)
