30 American Dryer Corporation 450126 - 8

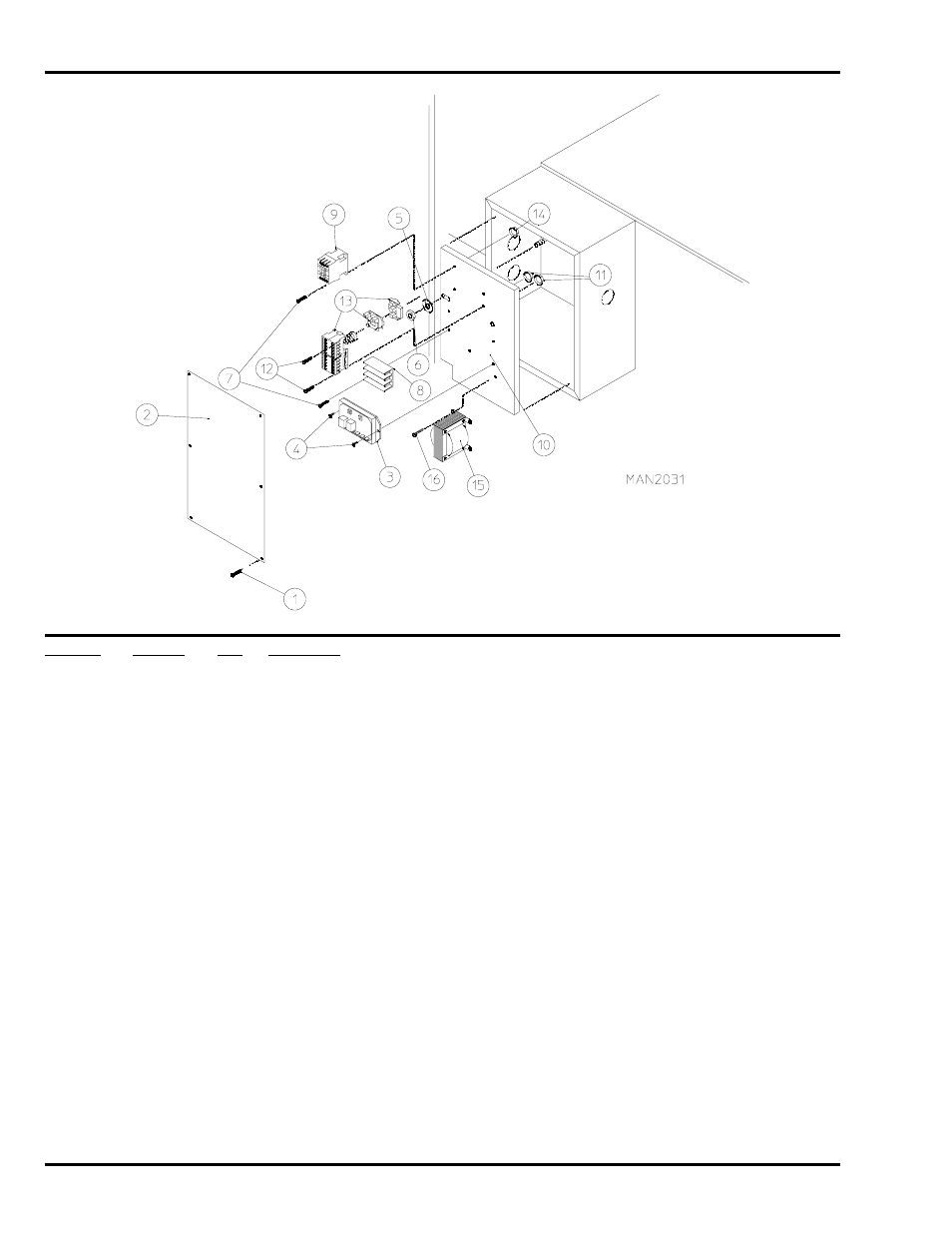

Timer Reversing Control Box Assembly
Illus. No. Part No. Qty. Description
1 150301 6 #8-18 x 7/16” Phillips Pan Head TEK Screw
2 322815 1 Control Box Cover Plate (8-1/2” x 15-1/2”)
(for models mfd. as of January 4, 1993)
322808 1 Control Box Cover Plate (8-1/2” x 12”)
(for models mfd. prior to January 4, 1993)
3 132198 1 Reversing Timer (50/60 Hz) – 24 VAC
4 150108 2 #8-32 x 1/2” Pan Head Machine Screw
5 153002 1 5/16” Lock Washer
6 152004 1 5/16-18 Hex Nut
7 150108 4 #8-32 x 1/2” Pan Head Machine Screw
8 120704 1 3-Position Power Distribution Block
9 132445 1 Impellor (Fan / Blower) Contactor
10 322816 1 Contactor Mounting Panel (7” x 15-1/2”)
(for models mfd. as of January 4, 1993)
322807 1 Contactor Mounting Panel (7” x 10-1/2”)
(for models mfd. prior to January 4, 1993)
11 151001 4 #8-32 Pal Nut
12 150108 4 #8-32 x 1/2” Pan Head Machine Screw
13 132431 1 Reversing Contactor – 24 VAC
132432 1 Contactor Replacement Coil – 24 VAC
14 151001 4 #8-32 Pal Nut
15 132023 1 208-240 Volt Step Down Transformer – 24 VAC
132059 1 380 Volt Step Down Transformer – 24 VAC
132062 1 416 Volt Step Down Transformer – 24 VAC
132053 1 460 / 480 Volt Step Down Transformer – 24 VAC
16 150300 2 #10 x 1/2” Hex Washer TEK Screw
