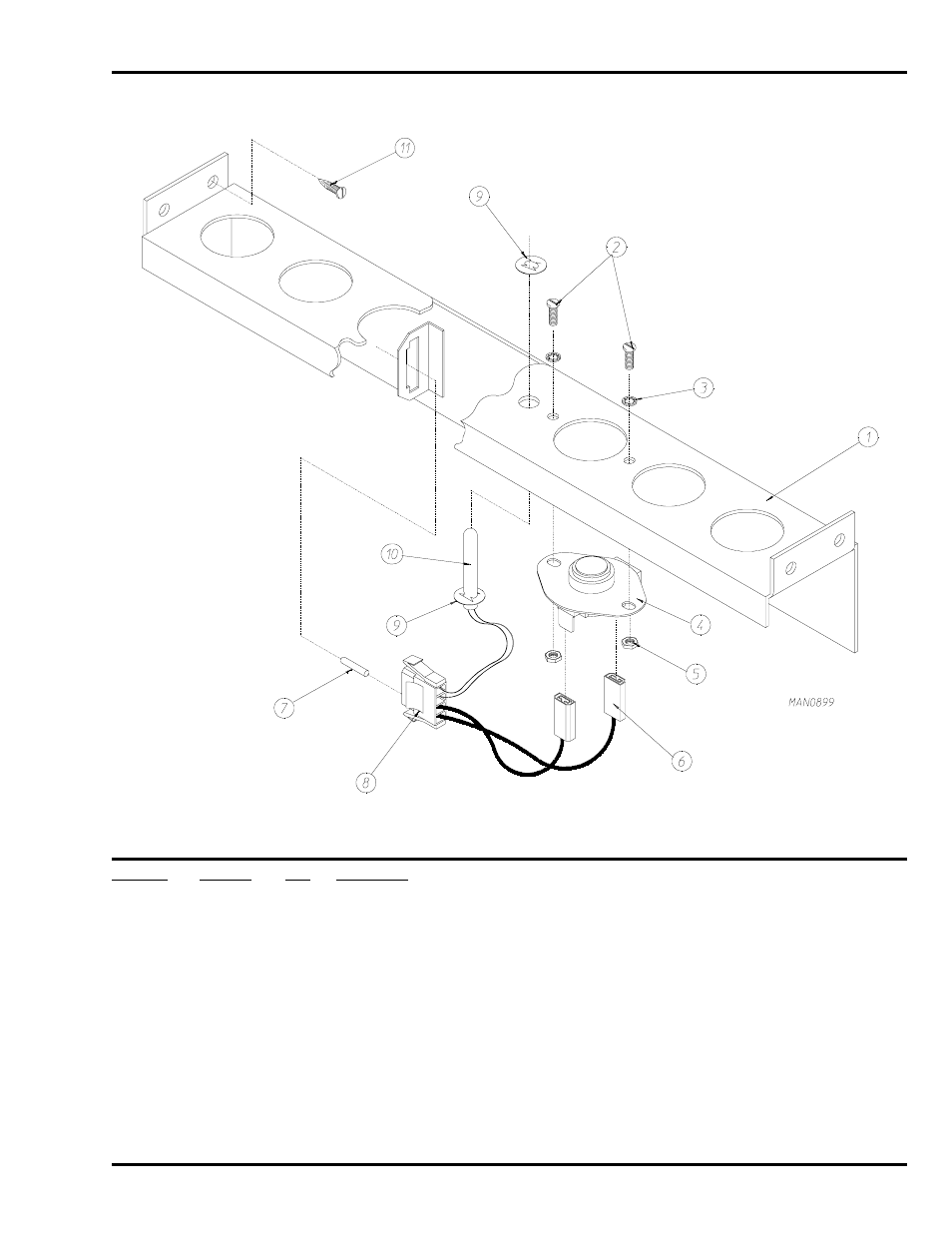

Microprocessor Temperature Sensor Bracket Assembly
Illus. No.
Part No.
Qty.
Description
1
820968
1
Microprocessor Temperature Sensor Bracket Complete
(includes illus. nos. 1 through 10)
820967
1
Temperature Sensor Bracket ONLY
2
150000
2
#6-32 x 1/4” Round Head Machine Screw
3
153010
2
#6 Star Washer
4
130112
1
225° Large Automatic Reset Thermostat (Side Terminals)
5
152000
2
#6-32 Hex Nut
6
121028
2
1/4” x .032 Insulated Terminal
7
122701
4
Socket Terminal
8
122605
1
4-Pin Socket Connector
9
154007
2
1/4” Push-On Fastener
10
880251
1
1/4” Temperature Sensor Probe Assembly
(includes illus. nos. 6 through 10)
11
150301
4
#8-18 x 7/16” Phillips Pan Head TEK Screw
