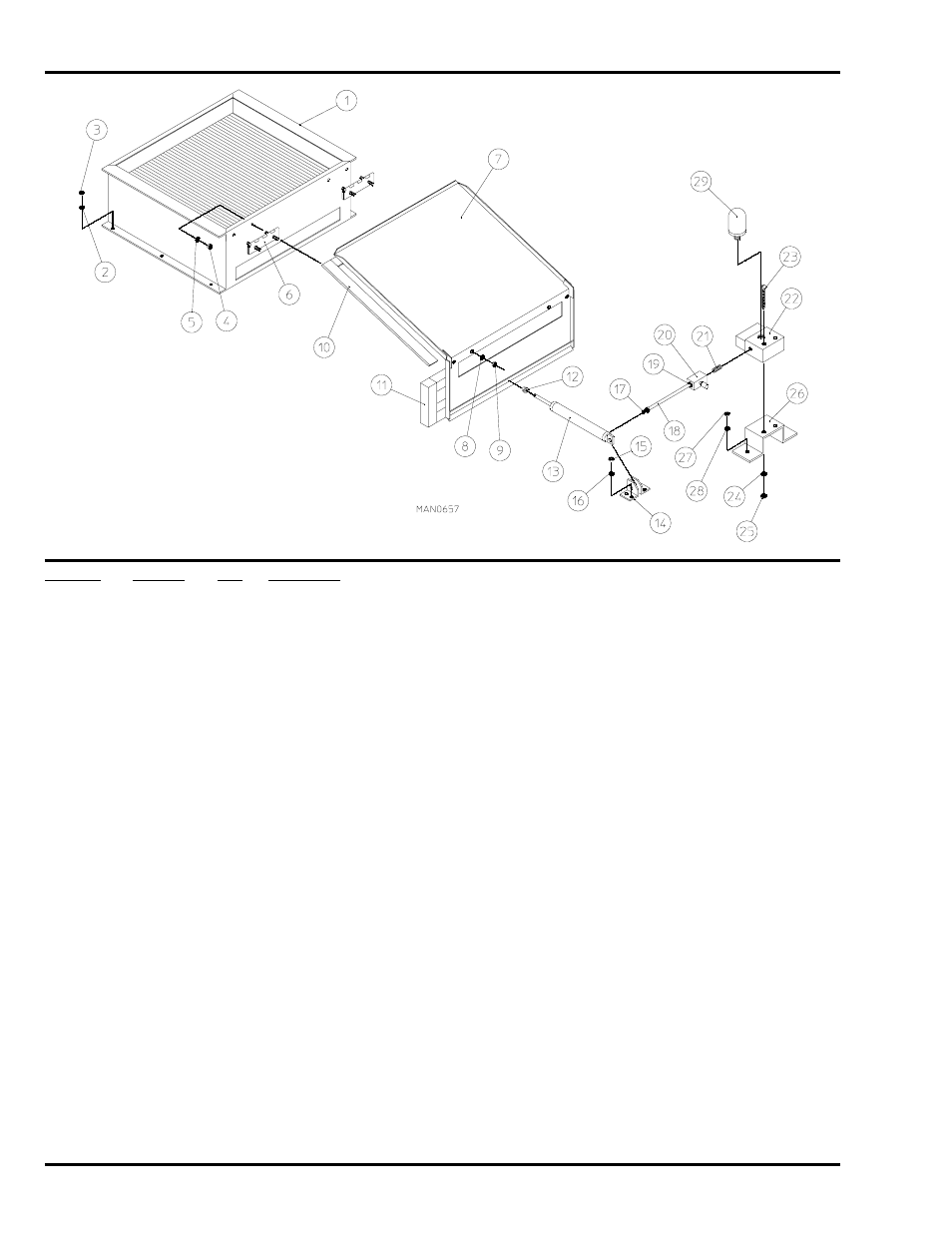

Steam Damper Assembly
Illus. No. Part No. Qty. Description
1 165017 1 Steam Coil Assembly
2 153002 6 5/16” Lock Washer
3 152004 6 5/16-18 Hex Nut
4 152002 4 1/4-20 Hex Nut
5 153007 4 1/4” Lock Washer
6 820321 2 Steam Damper Hinge Assembly
7 820994 1 Steam Damper Assembly
(includes illus. nos. 7, 10, and 11)
8 153007 4 1/4” Lock Washer
9 152002 4 1/4-20 Hex Nut
10 115995 96 Steam Damper Gasket (sold by the inch)
11 102350 1 Steam Damper Foam (68-1/2” length)
12 151007 1 7/16-20 Stainless Steel Acorn Nut
13 100499 1 1-1/2” Bore x 3” Stroke Piston
14 100500 1 Piston Support Bracket
15 152002 4 1/4-20 Hex Nut
16 153007 4 1/4” Lock Washer
17 100472 1 1/4” x 1/8” Connector
18 143110 1 1/4” Tubing (sold by the foot)
19 100472 1 1/4” x 1/8” Connector
20 100496 1 1/8” Needle Valve
21 143238 1 1/8” Close Nipple
22 100498 1 3-Way Micro Valve – 24 VAC
23 150002 2 #6-32 x 1” Slotted Machine Screw
24 153010 2 #6 Star Washer
25 152000 2 #6-32 Hex Nut
26 330987 1 Micro Valve Support Bracket
27 152002 2 1/4-20 Hex Nut
28 153007 2 1/4” Lock Washer
29 100520 1 1/8” N.P.T. Silencer (muffler)
