ADC Phase 5 Microprocessor AD-170 - Manual (Page 13)

450126 - 8 www.amdry.com 13

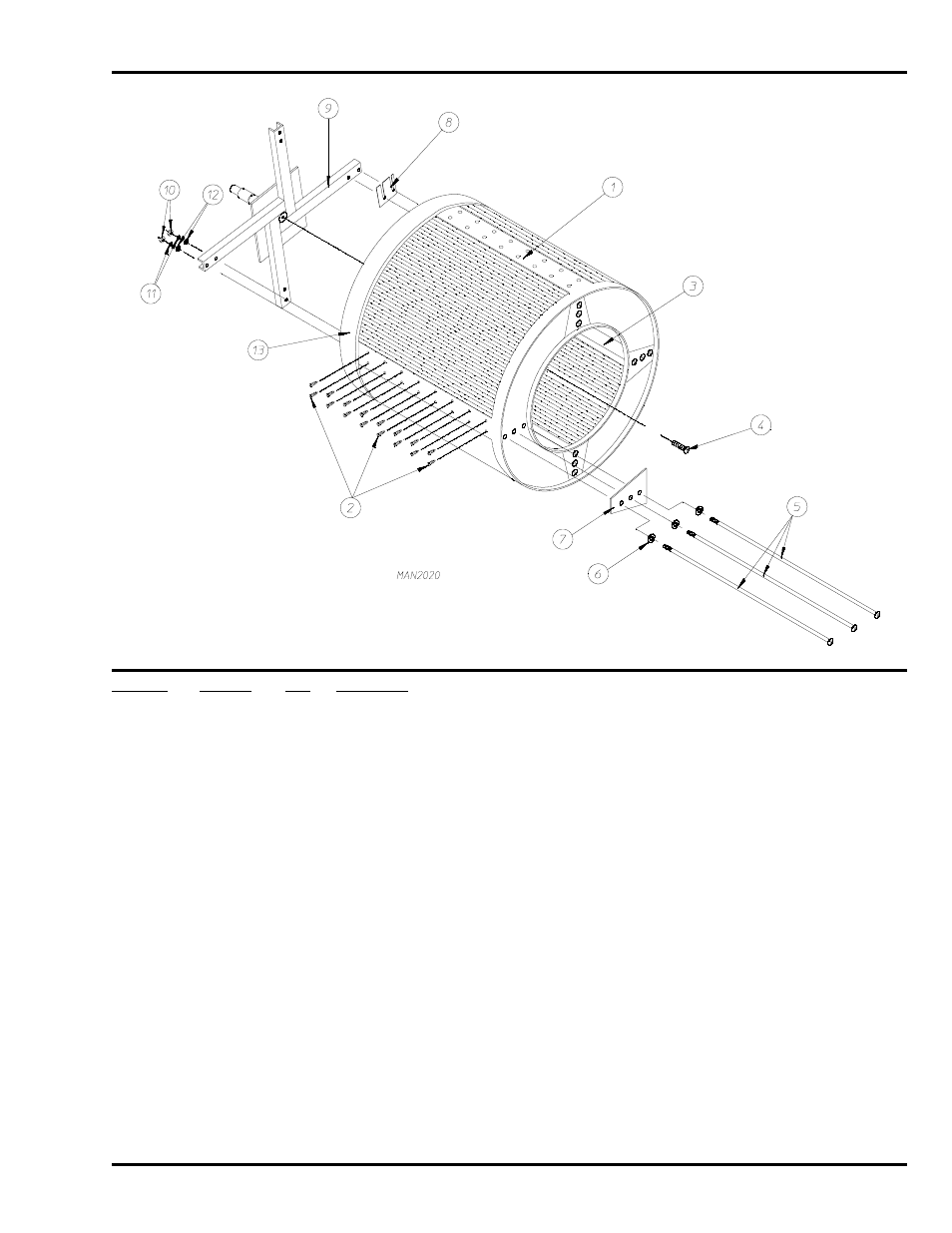

Tumbler / Support Assemblies
Illus. No. Part No. Qty. Description
1 820979* 1 Tumbler ONLY without Felt Collar
821001 1 Tumbler and Support Assembly Complete with Rotational Sensor Option
(for models mfd. as of March 1, 1993)
(includes illus. nos. 1 through 13)
820927 1 Tumbler and Support Assembly Complete without Rotational Sensor Option
(includes illus. nos. 1 through 13)
2 150415 64 #10-16 x 1/2” Phillips Round Head Crimptite Screw
3 332140 4 Tumbler Rib
4 150500 1 5/16-18 x 3/4” Socket Button Head Screw
5 880967 12 1/2-13 x 44” Tie Rod Kit with Hardware
(includes 1 each ONLY of illus. nos. 5, 6, 10, and 11)
6 153011 12 9/16” Flat Washer
7 332139 4 Basket Reinforcing Plate
8 332177 ** Tumbler Shim
9 821000 1 Tumbler Support with Rotational Sensor Option
(for models mfd. as of March 1, 1993)
820909 1 Tumbler Support without Rotational Sensor Option
10 152011 12 1/2-13 Hex Nut
11 153026 12 1/2” Lock Washer
12 153014 12 7/16” Flat Washer
13 116007 1 Felt Collar
— 401010 1 #847 Adhesive for Felt Collar
* Felt collar not included and must be ordered separately.
** As required.
