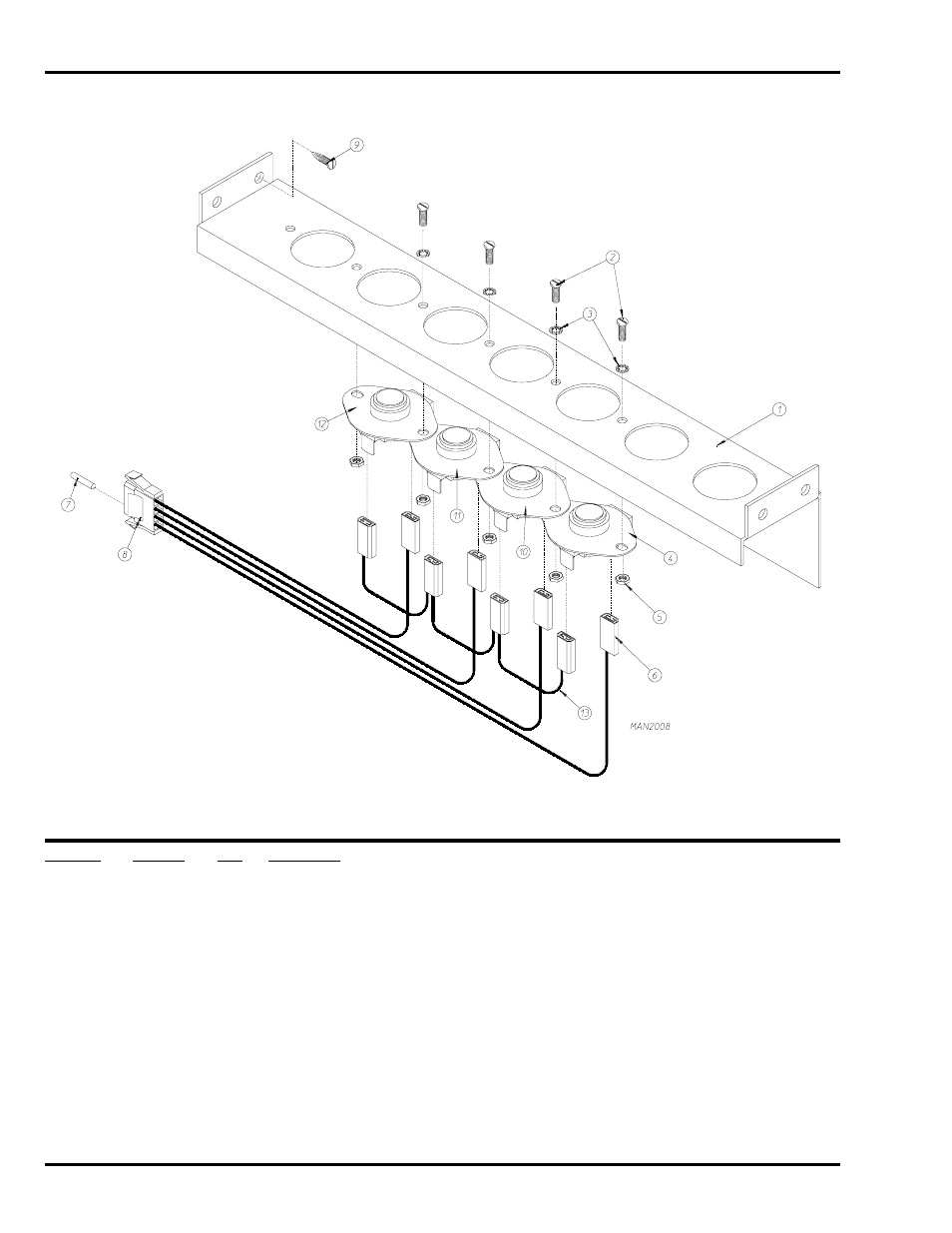

Timer Temperature Sensor Bracket Assembly
Illus. No. Part No. Qty. Description
1 821016 1 Timer Temperature Sensor Bracket Complete
(includes illus. nos. 1 through 13)
820999 1 Timer Temperature Sensor Bracket ONLY
2 150005 5 #6-32 x 1/4” Round Head Machine Screw
3 153010 5 #6 Star Washer
4 130101 1 180° Large Thermostat
5 152000 2 #6-32 Hex Nut
6 121028 4 1/4” x .032 Insulated Terminal
7 122701 4 Socket Terminal
8 122605 1 4-Pin Socket Connector
9 150301 4 #8-18 x 7/16” Phillips Pan Head TEK Screw
10 130109 1 140° Large Thermostat
11 130107 1 160° Large Thermostat
12 130103 1 225° Large Automatic Reset Thermostat
13 831701 1 Sensor Jumper (4)
