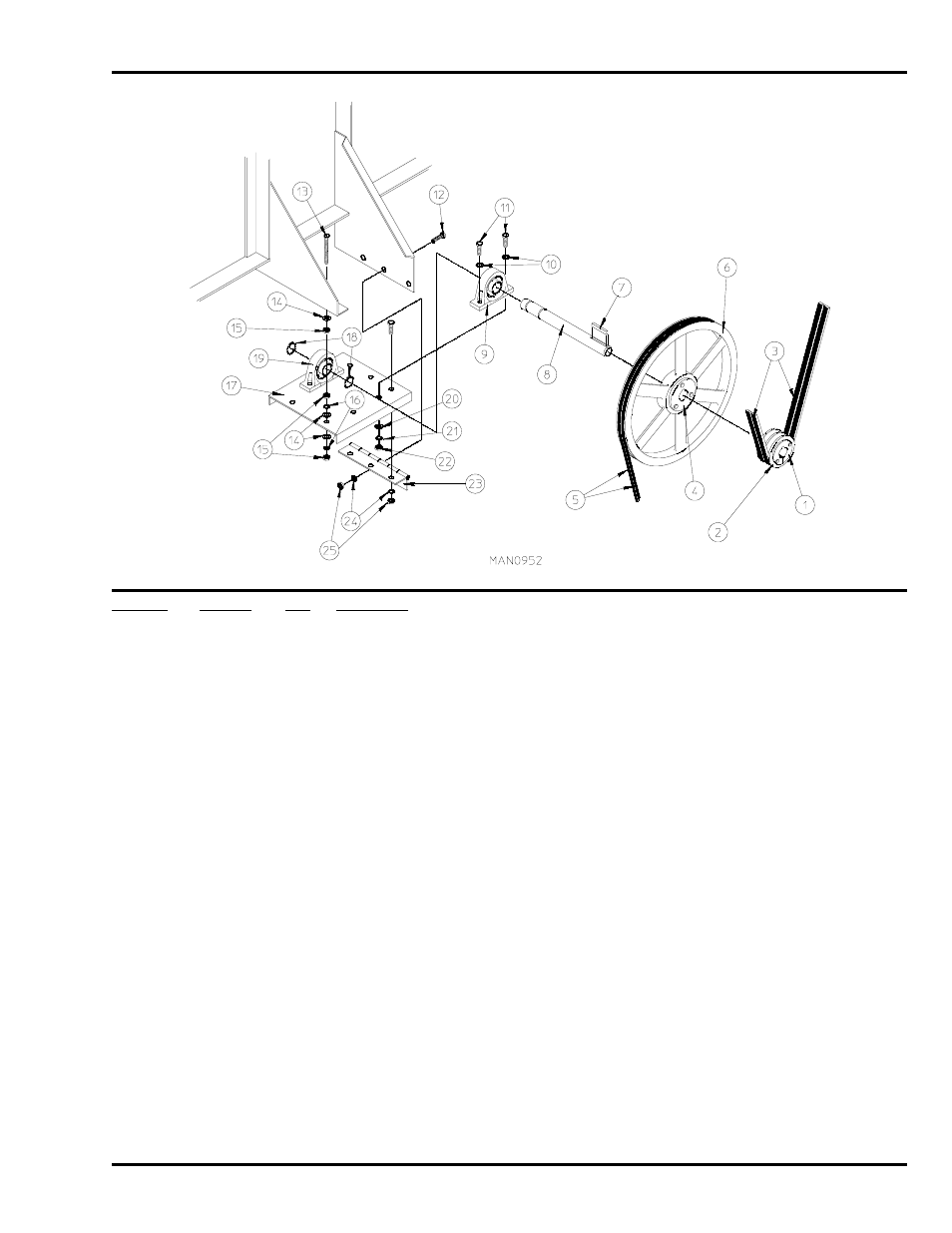

Idler Bearing Mount Assembly
Illus. No. Part No. Qty. Description
1 101152 1 SH x 1-3/8” Bushing
2 101143 1 2B 3.8 SH Pulley
3* 100137 2 AB91 V-Belt
4 101184 1 SK x 1-3/8” Bore Bushing
5* 100102 2 3V740 V-Belt
6 101112 1 19” Idler Pulley
7 100730 1 1/4” x 1/4” x 4-5/8” Key
8 332152 1 Idler Shaft
9 880879 1 1-3/8” Pillow Block Bearing with Setscrews and Grease Fitting
10 153004 4 3/8” Flat Washer
11 150600 4 3/8-16 x 1-1/2” Hex Head Machine Bolt
12 150504 6 1/4-20 x 1/2” Hex Head Machine Bolt
13 150509 2 5/16-18 x 3” Hex Head Machine Bolt
14 153001 6 5/16” Flat Washer
15 152004 6 5/16-18 Hex Nut
16 153002 8 5/16” Lock Washer
17 820932 1 Idler Bearing Mount Assembly Complete
(includes illus. nos. 8 through 11 and 17 through 25)
332151 1 Idler Bearing Mount ONLY
18 100802 2 1-3/8” Retaining Ring
19 880879 1 1-3/8” Pillow Block Bearing with Setscrews and Grease Fitting
20 153004 4 3/8” Flat Washer
21 153005 4 3/8” Lock Washer
22 152005 4 3/8-16 Hex Nut
23 103005 1 Idler Adjustment Hinge
24 153002 6 1/4” Lock Washer
25 152004 6 1/4-20 Hex Nut
* Replace in matched sets (both belts).
