16 American Dryer Corporation 450126 - 8

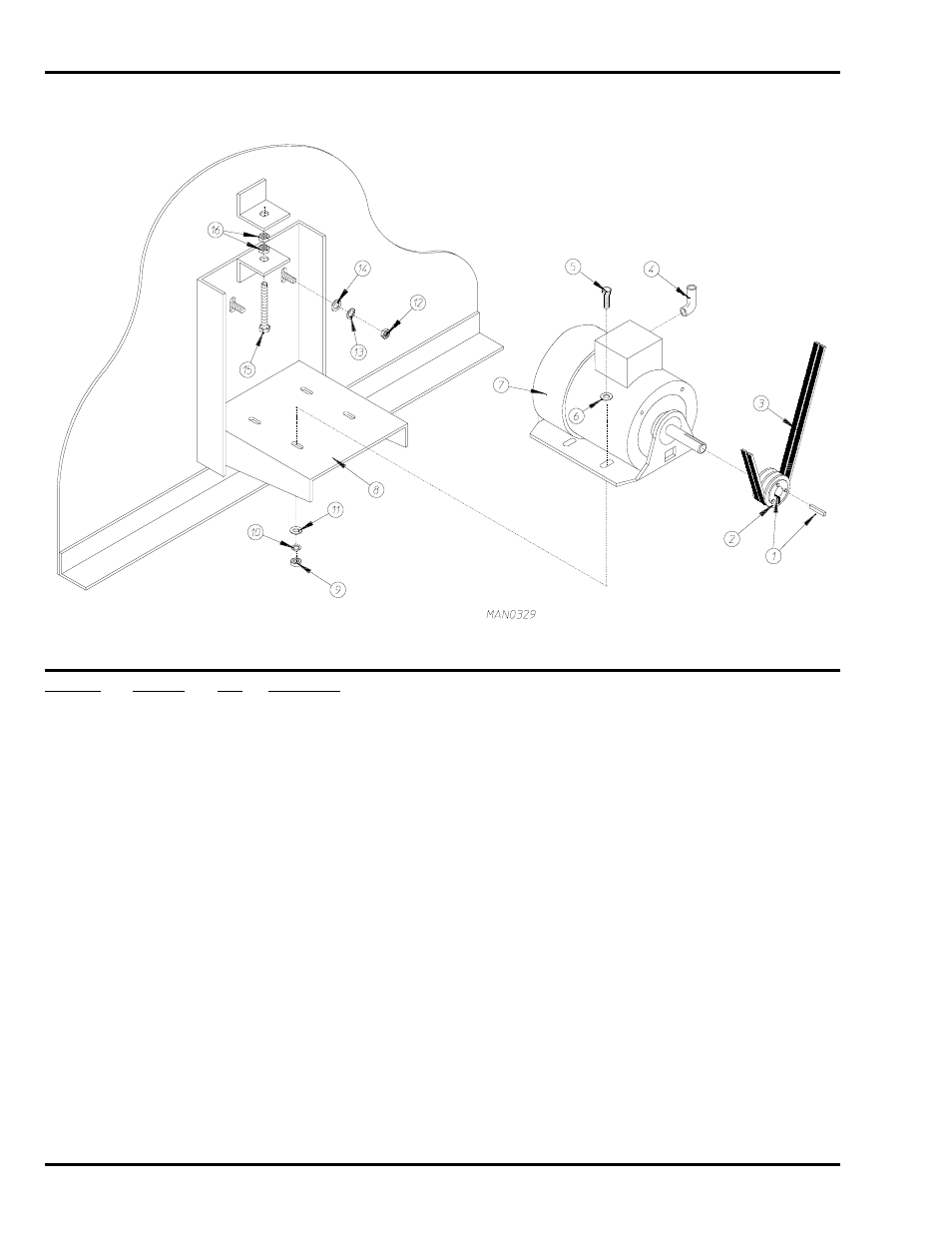

Totally Enclosed, Fan-Cooled Tumbler Motor Mount Assembly
Illus. No. Part No. Qty. Description
1 101121 1 5/8” SK Bushing
2 101114 1 2.65” Pulley (for 60 Hz Models Only)
101120 1 3.15” Pulley (for 50 Hz Models Only)
3* 100102 2 3V740 V-Belt
4 120200 1 3/8” x 90° Connector
5 150501 4 5/16-18 x 3/4” Hex Head Machine Bolt
6 153001 4 5/16” Flat Washer
7 100050 1 1 hp 208 / 230 / 380 / 460v 50 / 60 Hz 3ø Totally Enclosed, Fan-Cooled Motor (56Z frame)
8 800952 1 Tumbler Motor Mount ONLY (56Z frame)
820941** 1 50 / 60 Hz Totally Enclosed, Fan-Cooled Tumbler Motor Mount Assembly Complete
(includes illus. nos. 1 and 4 through 11)
NOTE: Motor Pulley Must Be Ordered Separately
9 152004 4 5/16-18 Hex Nut
10 153002 4 5/16” Lock Washer
11 153001 4 5/16” Flat Washer
12 152004 4 5/16-18 Hex Nut
13 153002 4 5/16” Lock Washer
14 153001 4 5/16” Flat Washer
15 150619 1 3/8-16 x 3” Hex Head Machine Bolt
16 152005 2 3/8-16 Hex Nut
* Replace in matched sets (both belts).
** Specify voltage when ordering.
IMPORTANT: For voltages higher than 460v / contact the factory for correct part number of motor or motor mount assembly.
