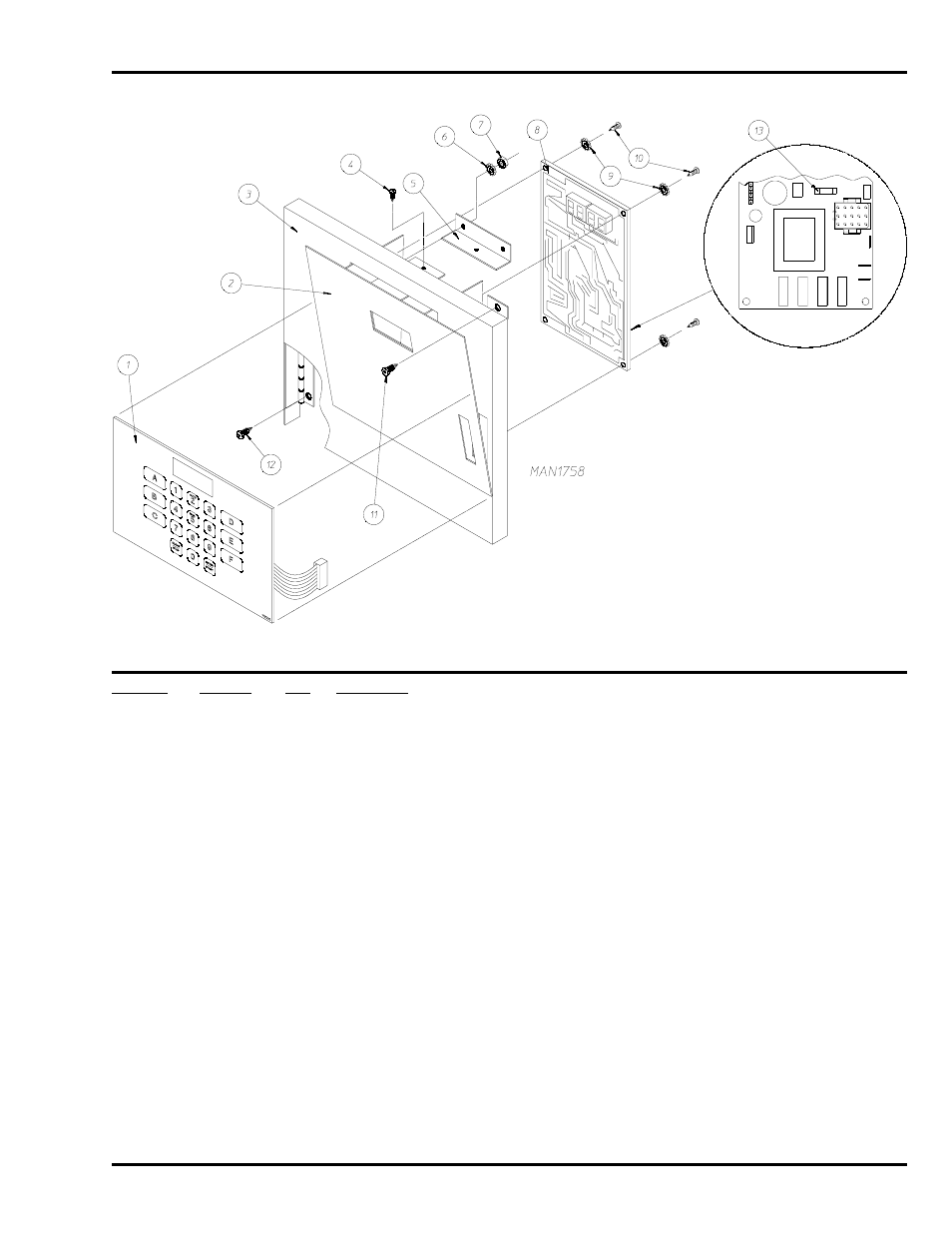

Microprocessor Control Panel Assembly
Illus. No.
Part No.
Qty.
Description
1
112535
1
Non-Coin English Keypad Label Assembly
112276
1
Non-Coin Stick-On Labels
(English Only) … Not Illustrated
112275
1
Non-Coin Stick-On Labels
(Spanish, Italian, and Hebrew) … Not Illustrated
112277
1
3-Language Non-Coin Stick-On Labels
(English, Spanish, and Hebrew) … Not Illustrated
112278
1
5-Language Non-Coin Stick-On Labels
(Italian, Dutch, French, German, and Chinese) … Not Illustrated
2
820935
1
Swing Out Computer Drawer Complete
(includes illus. nos. 1 through 10 and 13)
3
820912
1
Control Box Door
4
150000
1
#6-32 x 1/4” Slotted Round Head Screw
5
332200
1
Computer Drawer Angle
6
153010
2
#6 Star Washer
7
152010
2
#6-32 Hex Nut
8
137231
1
Phase 5 Non-Coin Reversing Microprocessor Controller ONLY
9
153010
4
#6 Star Washer
10
150005
4
#6-32 x 1/4” Phillips Round Head Machine Screw
11
150000
1
#6-32 x 1/4” Slotted Round Head Machine Screw
12
150000
3
#6-32 x 1/4” Slotted Round Head Machine Screw
13
136048
1
1/8-Amp (Slo-Blo) Fuse
IMPORTANT: Check label on computer chip to verify correct part number.
