5 Photography Auxiliary Functions
1

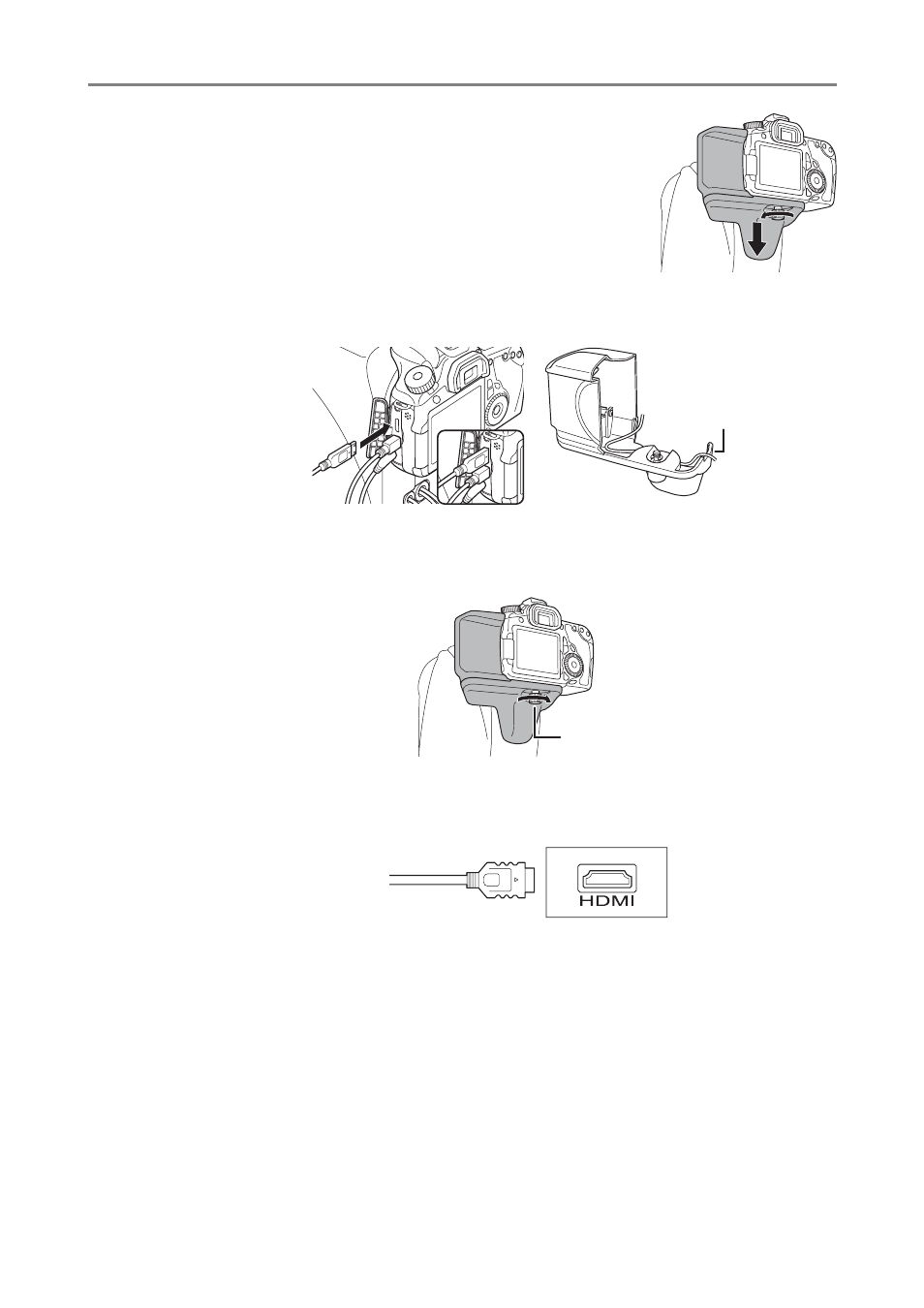

Remove the digital camera cover.
2
Connect the HDMI cable to the digital camera.
1. Securely insert the HDMI cable into the mini HDMI output terminal on the digital camera.
2. Fit the HDMI cable into the space in the cover, and place the video cable in the notch.
Notch
3
Attach the digital camera cover.
1. Hook the digital camera cover hook onto the strap mount of the digital camera.
2. While taking care to avoid pinching the HDMI cable, insert the cover screw to secure the digital
camera cover.
Cover screw
4
Connect the HDMI cable to the external monitor.
Connect the HDMI cable to the HDMI input terminal on the external monitor. Turn on the external
monitor, and select the input using the monitor’s input switch.
5
Turn on the power to the external monitor and the retinal camera.
The image is displayed on the external observation monitor. No image is displayed on the observation
monitor of the retinal camera.
