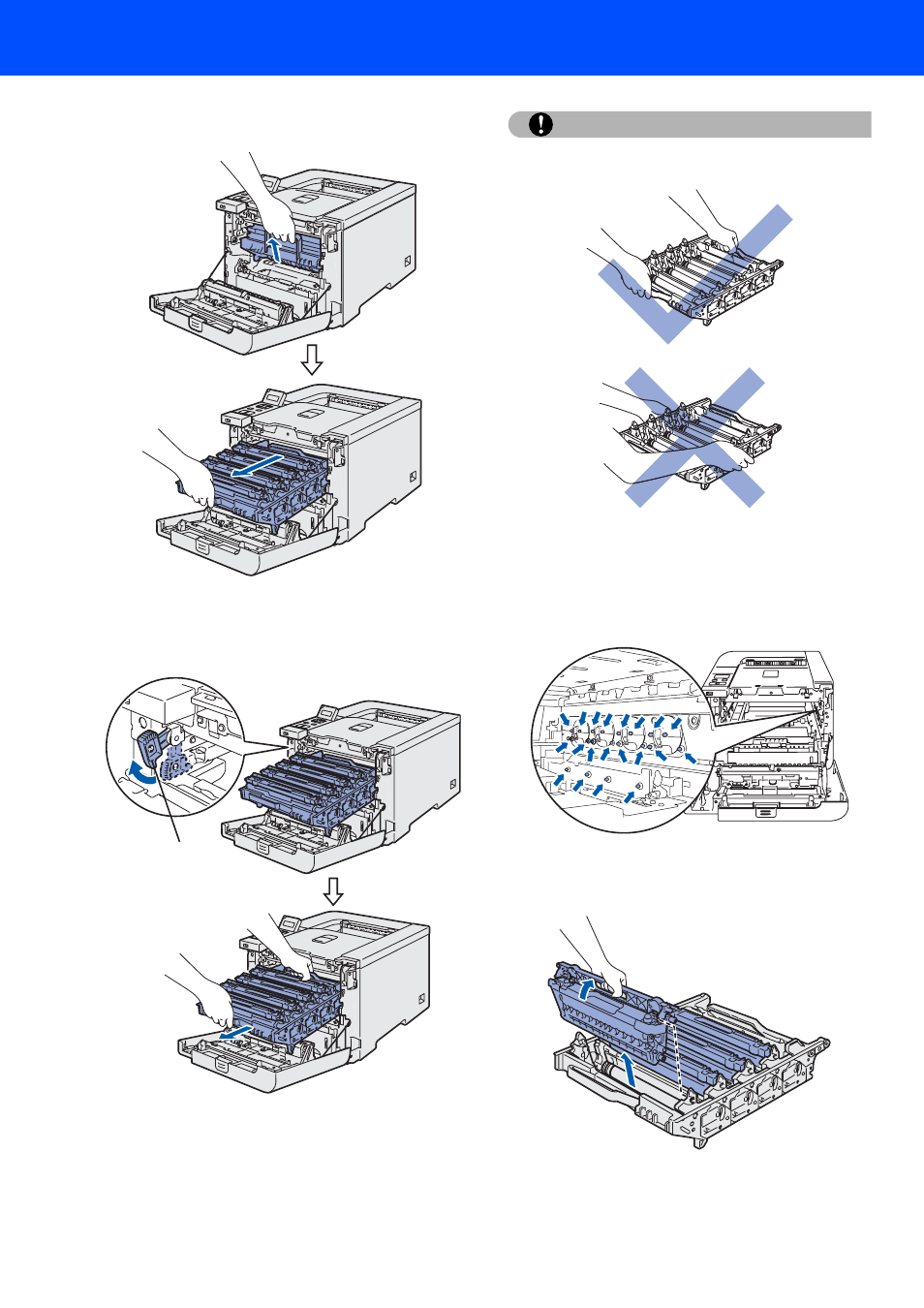

Hold the green handle of the drum unit. Lift the
drum unit up and then pull it out until it stops.
4
Release the gray lock lever (1) that is on the left
side of the printer. Pull the drum unit
completely out using the green handles on the
drum unit.
Caution
• Hold the green handles of the drum unit when you
carry it. DO NOT hold the sides of the drum unit.
• We recommend that you place the drum unit on a
clean, flat surface with a piece of disposable paper
underneath it in case you accidentally spill or
scatter toner.
• To prevent damage to the printer from static
electricity, DO NOT touch the electrodes shown in
the illustration.
5
Hold the handle of the toner cartridge and pull
it out of the drum unit. Repeat this for all the
toner cartridges.
1
