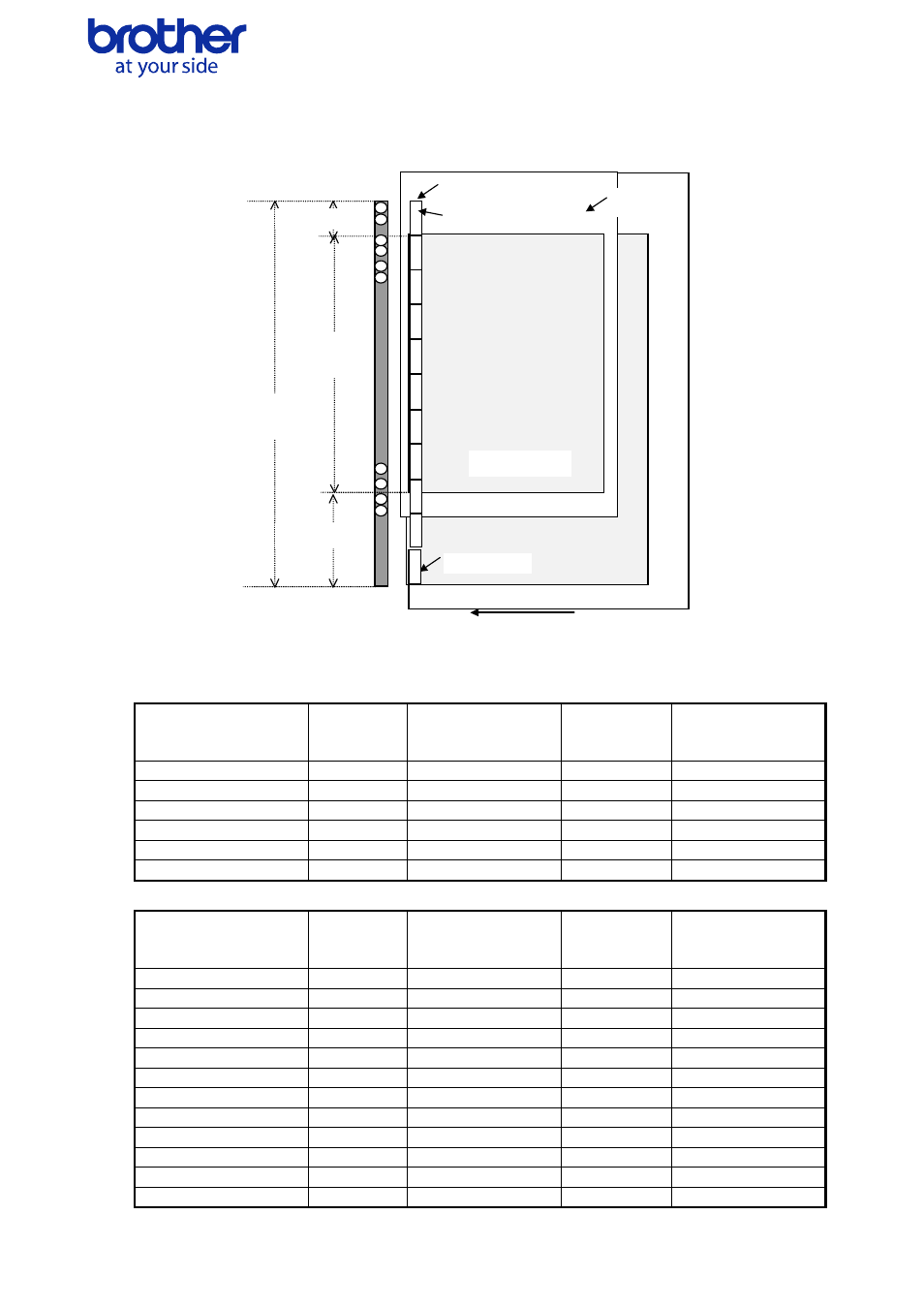

3.2.5. Raster line arrangement
0 pin
First byte
Left and right
margins
Last byte
Raster line
Feeding direction
Print area
Pins on print head
Number of
print area pins
Number of pins for
right margin
Total
number of
pins
Number of pins for
left margin
QL-500/550/560/570/580N/650TD/700: Total number of pins 720 pins
Continuous length tape:
Label Size Number of
Pins for Left
Margin
Number of Print Area
Pins
Number of
Pins for Right
Margin
Number of Raster
Graphics Transfer
Bytes
12mm 585 106 29 90
29mm 408 306 6 90
38mm 295 413 12 90
50mm 154 554 12 90
54mm 130 590 0 90
62mm 12 696 12 90
Die-cut labels:
Label Size Number of
Pins for Left
Margin
Number of Print Area
Pins
Number of
Pins for Right
Margin
Number of Raster
Graphics Transfer
Bytes
17 mm x 54 mm 555 165 0 90
17 mm x 87 mm 555 165 0 90
23 mm x 23 mm 442 236 42 90
29 mm x 90 mm 408 306 6 90
38 mm x 90 mm 295 413 12 90
39 mm x 48 mm 289 425 6 90
52 mm x 29 mm 142 578 0 90
62 mm x 29 mm 12 696 12 90
62 mm x 100 mm 12 696 12 90
12 mm Dia 513 94 113 90
24 mm Dia 442 236 42 90
58 mm Dia 51 618 51 90
