Royal Series Water Temperature Control Units Page 23

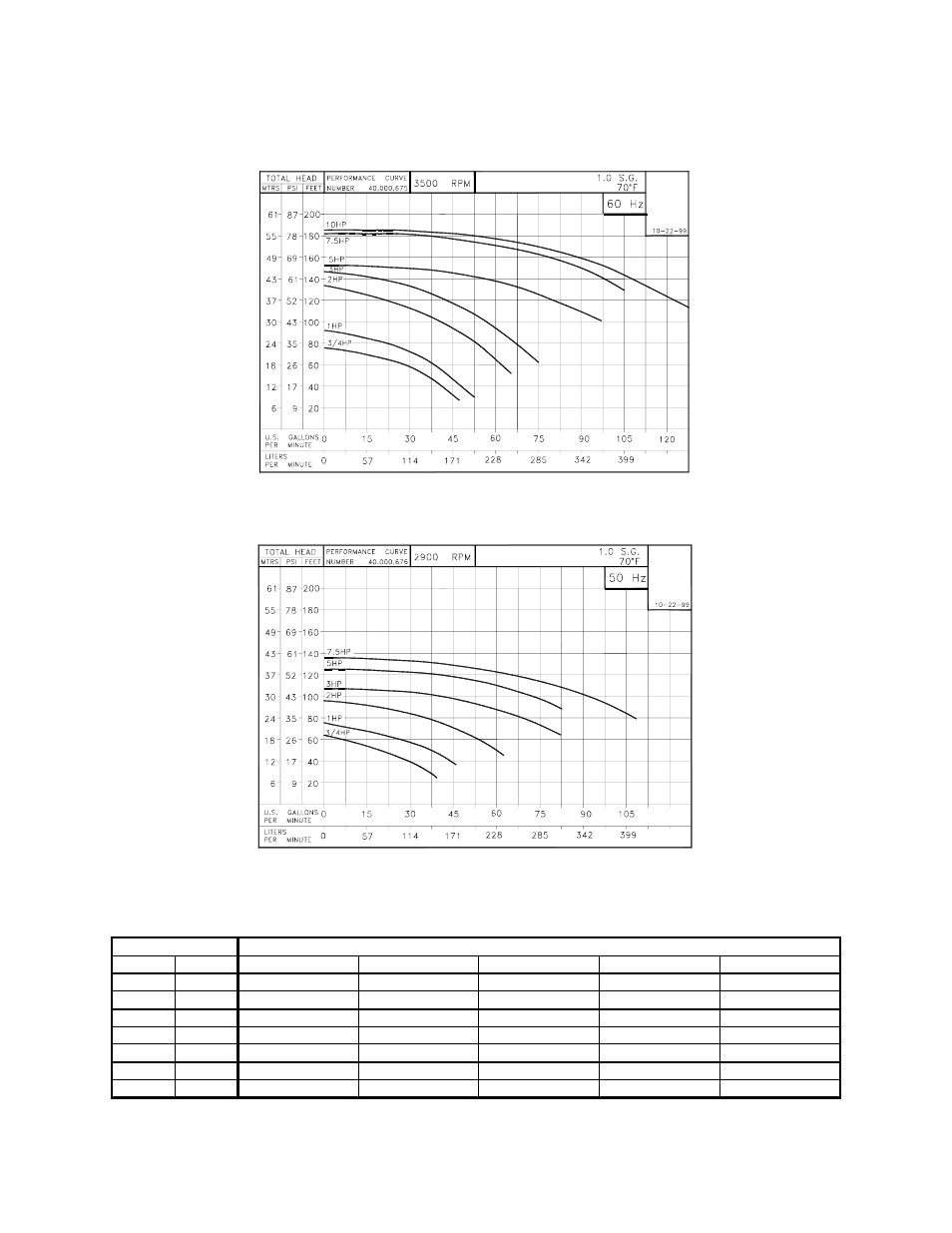

Figure 5
Pump Curves; 60 Hz
Pump Curves; 50 Hz
• Consult Factory for 10 hp Curves
Figure 6
Pressure Drops
Model Pressure drop flow and loss
hp kW 9 kW htr flow gpm flow lpm loss psi loss kPa
0.75 hp 0.56 kW 12.7 amps 30.0 gpm 113.6 lpm 0.0 psi 0.0 kPa
1.00 hp 0.75 kW 13.1 amps 35.0 gpm 132.5 lpm 1.0 psi 6.9 kPa
2.00 hp 1.50 kW 14.7 amps 50.0 gpm 189.3 lpm 1.5 psi 10.3 kPa
3.00 hp 2.24 kW 16.1 amps 60.0 gpm 227.1 lpm 2.0 psi 13.8 kPa
5.00 hp 3.73 kW 18.9 amps 75.0 gpm 283.9 lpm 2.5 psi 17.2 kPa
7.50 hp 5.60 kW 22.3 amps 90.0 gpm 340.7 lpm 5.0 psi 34.4 kPa
10.00 hp 7.46 kW 26.0 amps 120.0 gpm 454.2 lpm 5.0 psi 34.4 kPa
