Sterlco SGBD Series Batch Gravimetric Blenders User Manual
Page 88
BLN1-600
Chapter 7: Appendix
88 of 110

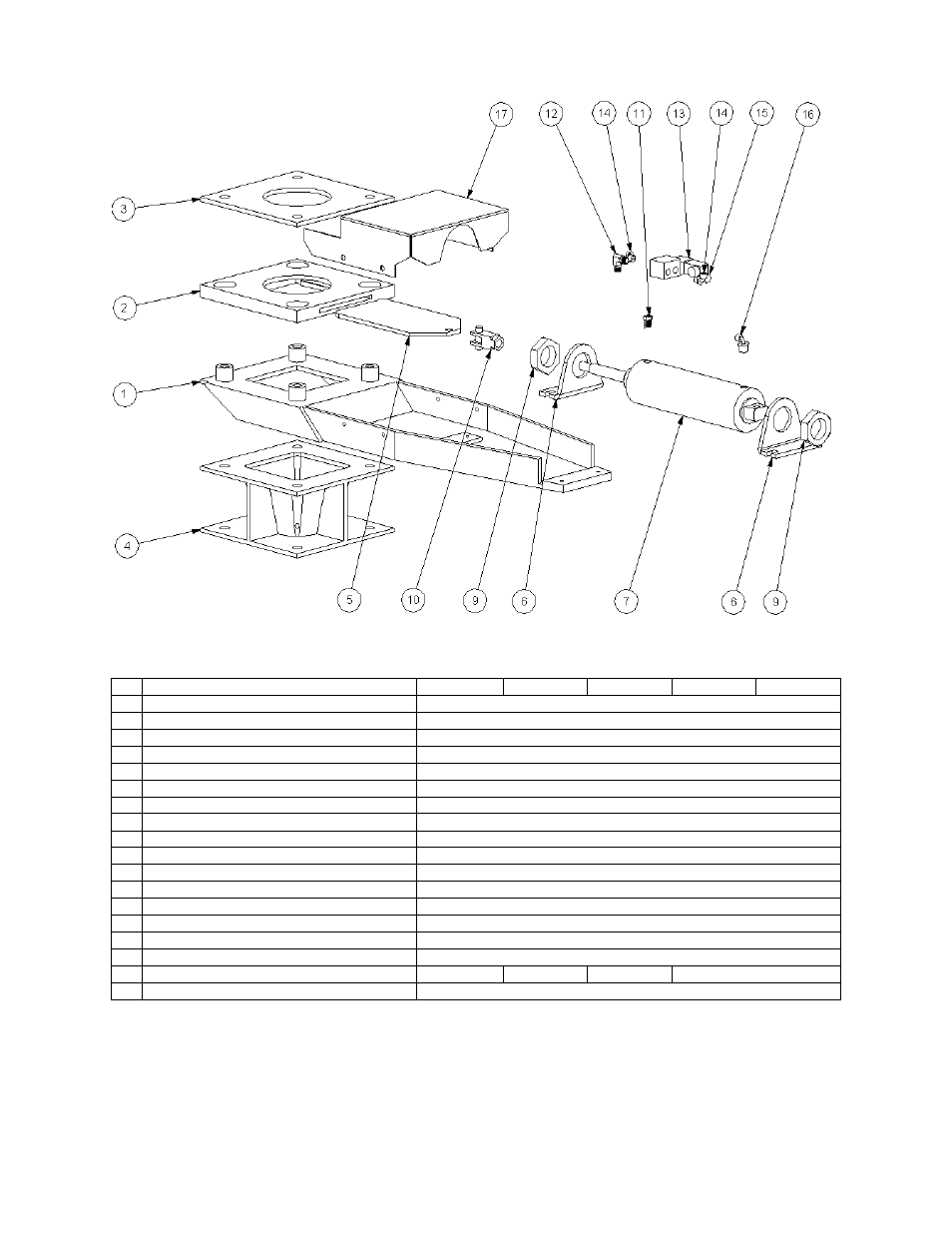

Knife Gate Sub-assembly HD (Optional)
Figure 62: Typical Slide Gate (below mixer) Assembly Parts List
#
DESCRIPTION
500
900
2500
4000
6000
1
BASE FRAME
07990
2
MOLDED THROAT
53413
3
SPACER PLATE
08286
4
FLANGE ADAPTER
08292
5
KNIFE BLADE
10644
6
MOUNTING BRACKET – AIR CYLINDER
33088
7
AIR CYLINDER
33091
8
-
-
9
MOUNTING NUT – AIR CYLINDER
A0553239
10 CLEVIS – AIR CYLINDER
33090
11 BUSHING 1/4 - 1/8 NPT
35014
12 ELBOW 1/8 NPT
35118
13 SOLENOID 4-WAY 24VDC
33128
14 FITTING – 1/8 NPT X 1/4 TUBE
35086K
15 MUFFLER 1/8 NPT FLUSH
35157
16 FITTING – 1/4 NPT X 1/4 TUBE
35154
17 SAFETY SHIELD
A0770362
A0770363
A0770364
A0770365
18 STROKE LIMITER PIPE (NOT SHOWN)
07990B
