Sterlco SGBD Series Batch Gravimetric Blenders - Manual (Page 39)

BLN1-600 Chapter 3: Installation 39 of 110

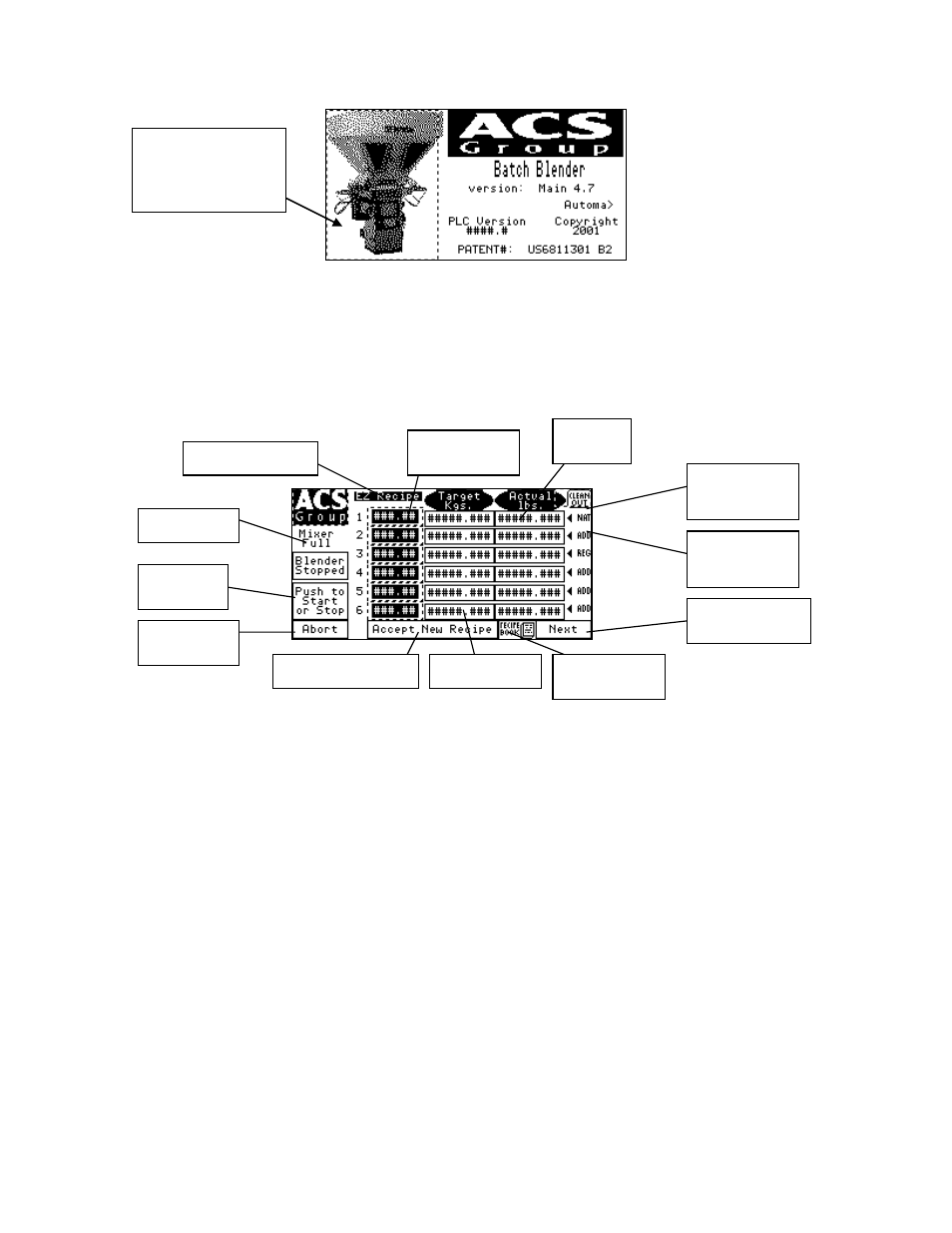

After powering up the blender the following screen will be shown:
Figure 26: Display Startup Screen
This screen displays the software version of both the PLC and the PanelView. The Controller
will stay on this screen for about 10 seconds or you can touch the picture of the blender to
quickly skip to the Recipe Screen (Next Screen in sequence). The software versions are also
available on the Panel View Configuration Screen.
Figure 27: Display Main (Recipe) Screen
To access the Setup Menu to change the Recipe Mode and other controller features, refer to
the following pages of this manual.
Controller Set-up
This section describes the proper setup of the Slide Gate blending system control parameters.
These parameters are operator changeable; however, these items should only require setup
during the initial installation. Only authorized personnel should change them. For security
reasons, the menu that is used to access these parameters is password protected.
Many of the variables and setup parameters have been preset at the factory and do not need to
be changed. However, this section of the manual will address all of the blender setup
parameters that were available at the time of printing. The purpose of this is to familiarize the
reader with all the setup parameters and their usage.
A complete listing of all default values is provided at the end of this manual.
• It may take 45-50 seconds for the screen to appear.
Recipe Entry Mode
Mixer Status
Start/Stop
Blender
Immediately
Stop Blender
Accept New Recipe Target Weight Go To Recipe
Book
Go To Inventory
Screen
Feeder Type
Indicator
Indicator for
Timed Batch
Actual
Weight
New Recipe
Input
Touch here to skip
quickly to the
Recipe Screen (Next
Screen in sequence).
