Sterlco SGBD Series Batch Gravimetric Blenders User Manual
Page 29
BLN1-600
Chapter 2: Functional Description
29 of 110

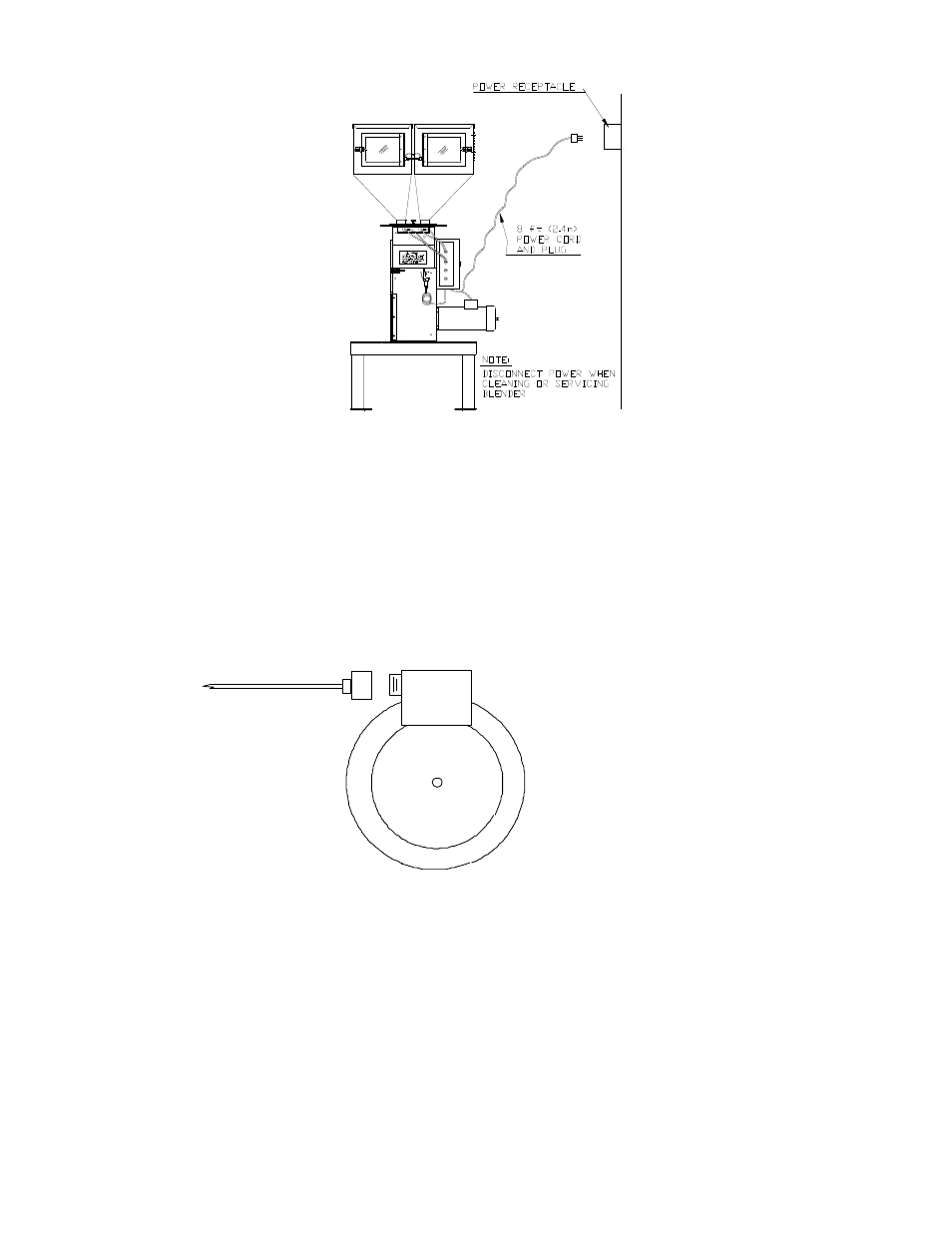

Figure 17: Electrical Disconnect Plug
Twist Cap Plug Connected to Each Feeder Auger Motor
The cap plug must be turned counter-clockwise to loosen and the female end of the cord
removed from the motor plug. This disables the motor from turning while the auger unit is
being serviced or cleaned. The motor cords are cut to length so they must be disconnected
before the auger can be removed from the housing. Disconnect plug before cleaning or
servicing motors or augers.
Figure 18: Twist Cap Plug
Motor
Unscrew and remove plug
from motor
