Mix Chamber
All of the batch blenders are equipped with an integral mix chamber. The mix chamber holds
multiple batches of material so any variations in a batch are averaged over time.

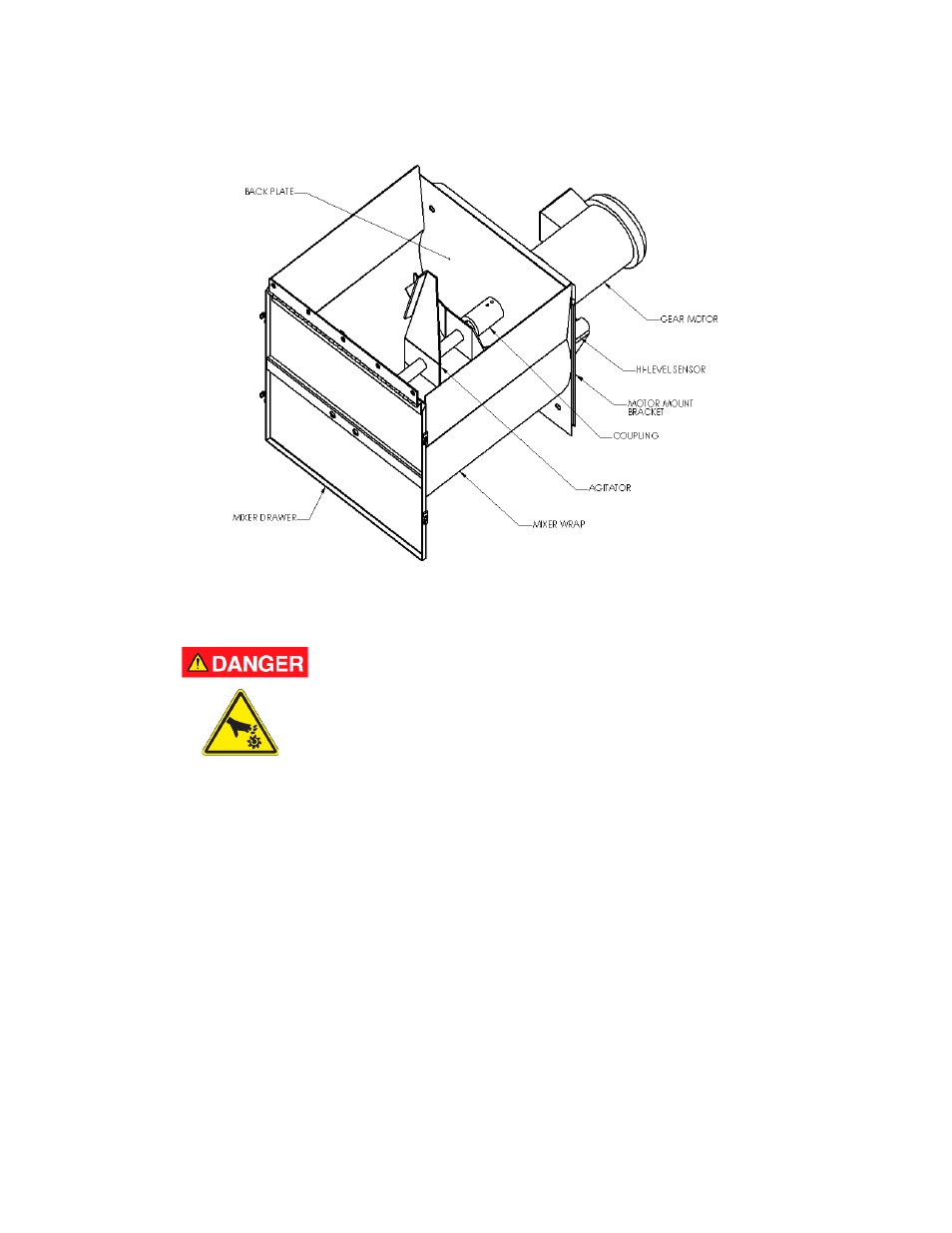

Figure 8: Typical Mixer Assembly
The mixer is designed to provide bi-directional mixing action and can be easily taken apart
for cleaning. This design is standard on all Slide Gate blenders.
Operator Control Panel Display
The operator control panel includes an 8 foot (2.4 m) cable and can be remote mounted (not
recommended) adjacent to the blender. The panel can be unplugged and removed if
necessary.
A programmable logic controller (PLC) controls the blender operation. This design provides
excellent blender performance along with an easily replaceable control panel in the unlikely
failure of any computer or electronic part.
The display menu format is very simple. After installation and setup, simply enter in the
recipe and start the blender. See figures 10, 11 and 12 for controller pushbutton &
touchscreen tags along with typical setup and operator screens.
If it is desired to have a local display and control of the blender closer to a remote operator
station, an optional remote mount operator panel is available.
Blades may be sharp!
