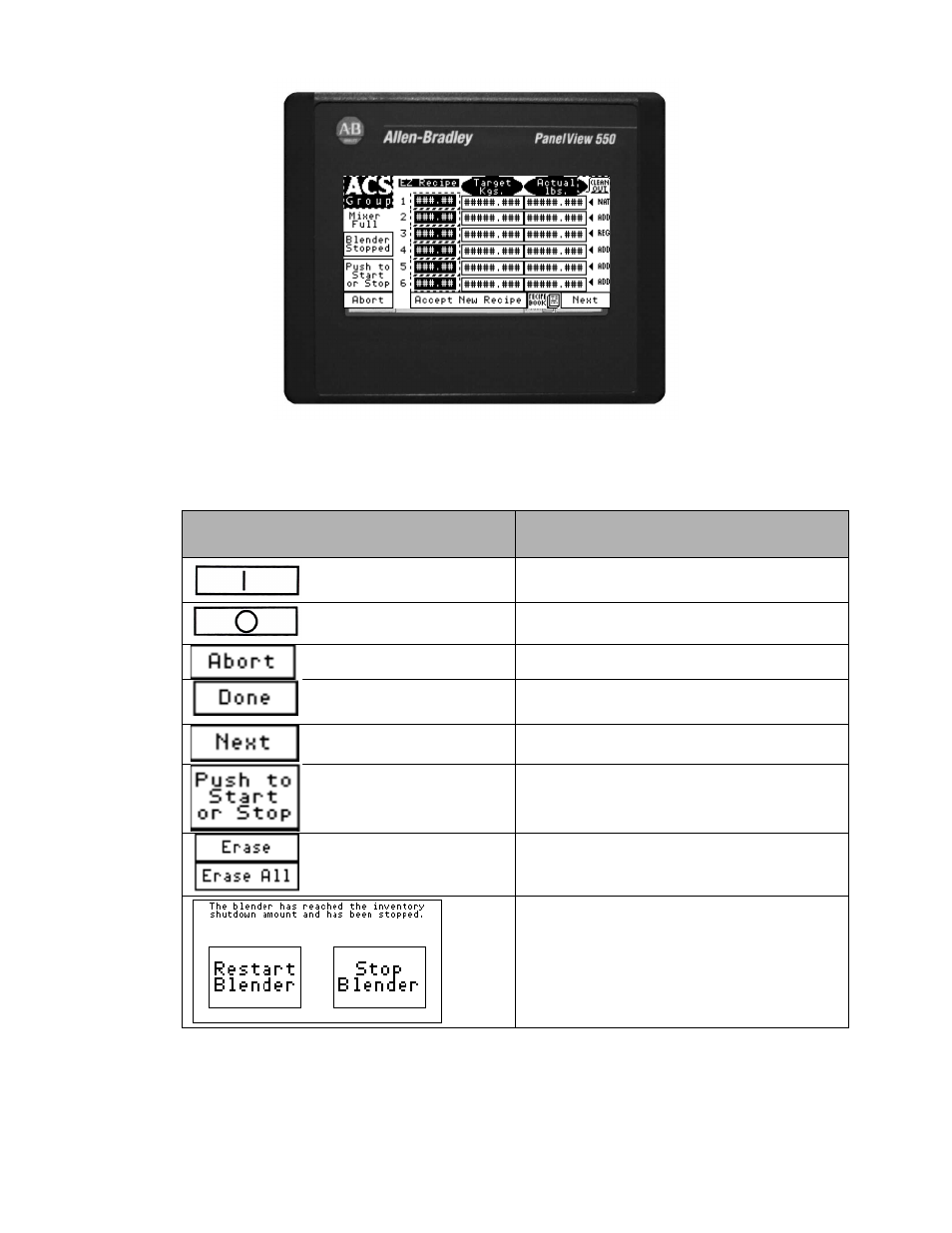

Figure 9: Typical Allen-Bradley Controller Touch Screen Display
Figure 10: Controller Pushbuttons & Touchscreen Tags
Button
Function
(Power On)
Turns power on to the blender controller.
(Found on the back of the controller.)
(Power Off)
Turns power off to the blender controller.
(Found on the back of the controller.)
Stops blender & restarts controller.
Press to move back one screen level in
controller function.
Move forward one screen level in controller
function.
Start (or stop) blender with current program
parameters.
Can erase current settings for one recipe or all
recipes.
Stops blender operation after current
inventory shutdown (if used) is completed
(This screen will be displayed.)
• Your touch-screen panel may differ slightly from shown.
•
