Sterlco SGBD Series Batch Gravimetric Blenders - Manual (Page 84)

BLN1-600 Chapter 7: Appendix 84 of 110
Hopper R.A.M. (Regrind Auger Metering) Sub-Assembly (Optional)

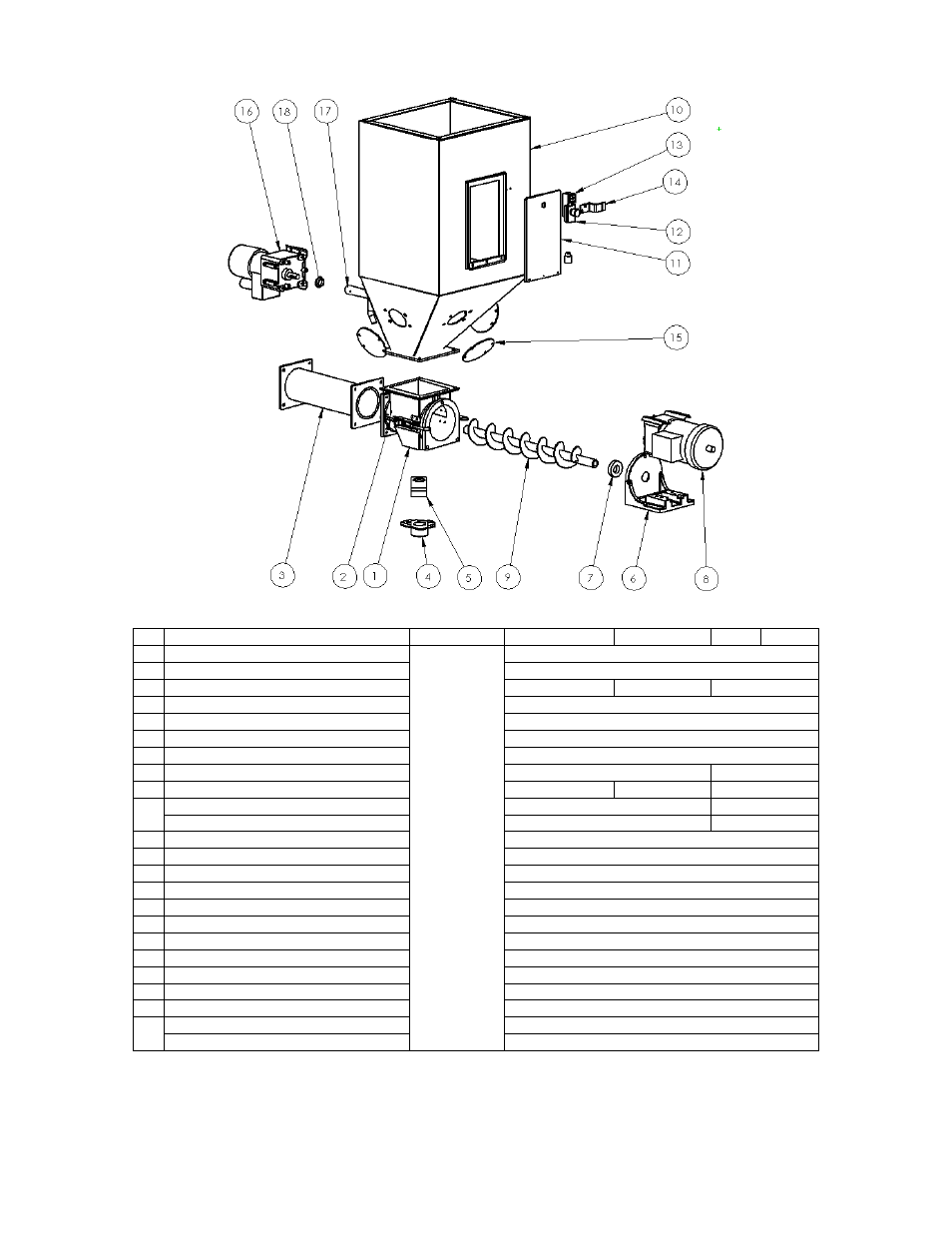

Figure 58: Typical R.A.M. Hopper Assembly Parts List
# DESCRIPTION 500 900 2500 4000 6000
1 THROAT
N/A
07822-1
2 CLAMP A0548808
3 FEEDER TUBE 872.00506.00 872.00426.00 872.00699.00
4 DRAIN HOUSING 08806A-HYD
5 DRAIN SLIDE GATE 08806B
6 MOTOR MOUNT BRACKET 08451
7 SEAL – AUGER - TEFLON 55372
8 MOTOR - AUGER 720.00004.00 720.00028.00
9 AUGER 872.00507.00 872.00421.00 872.00698.00
10
HOPPER 2.0 CU.FT. 872.00417.00 N/A
HOPPER 7.0 CU.FT. N/A 872.00418.00
11 DOOR A0770286
12 LATCH A0770076
13 SAFETY INTERLOCK SWITCH 717.00078.00
14 BRACKET – SAFETY SWITCH 872.00431.00
15 SIGHTGLASS 4.5” 832.00095.00
16 MOTOR – AGITATOR 51489
17 AGITATOR 10637
18 SEAL – AGITATOR - RUBBER 15286
19 RECEPTACLE – 3-PIN FEMALE 63119
20 CORD 3-PIN MALE 6 FT LONG 55196
21 STEADY STATE RELAY – 10 AMP 729.00183.00
22
GLASS FUSE – 3.0 AMP (115V UNIT) A0542207
GLASS FUSE – 1.5 AMP (230V UNIT) 725.00885.00
