1: General Description
3
the instrument’s microprocessor can use the results of the transit time calculations to compute the fluid flow
velocity. Once the flow velocity is known the volumetric flow can be easily calculated for a given pipe diameter.
The system can be set up to operate in one of four modes, determined mainly by the pipe diameter and the type
of transducer set in use. The diagram in Figure 1.1 illustrates the importance of applying the correct separation
distance between the transducers to obtain the strongest, and therefore most reliable, signal.
1.3 Supplied Hardware
The supplied UFC components are shown in Figure 1.2.

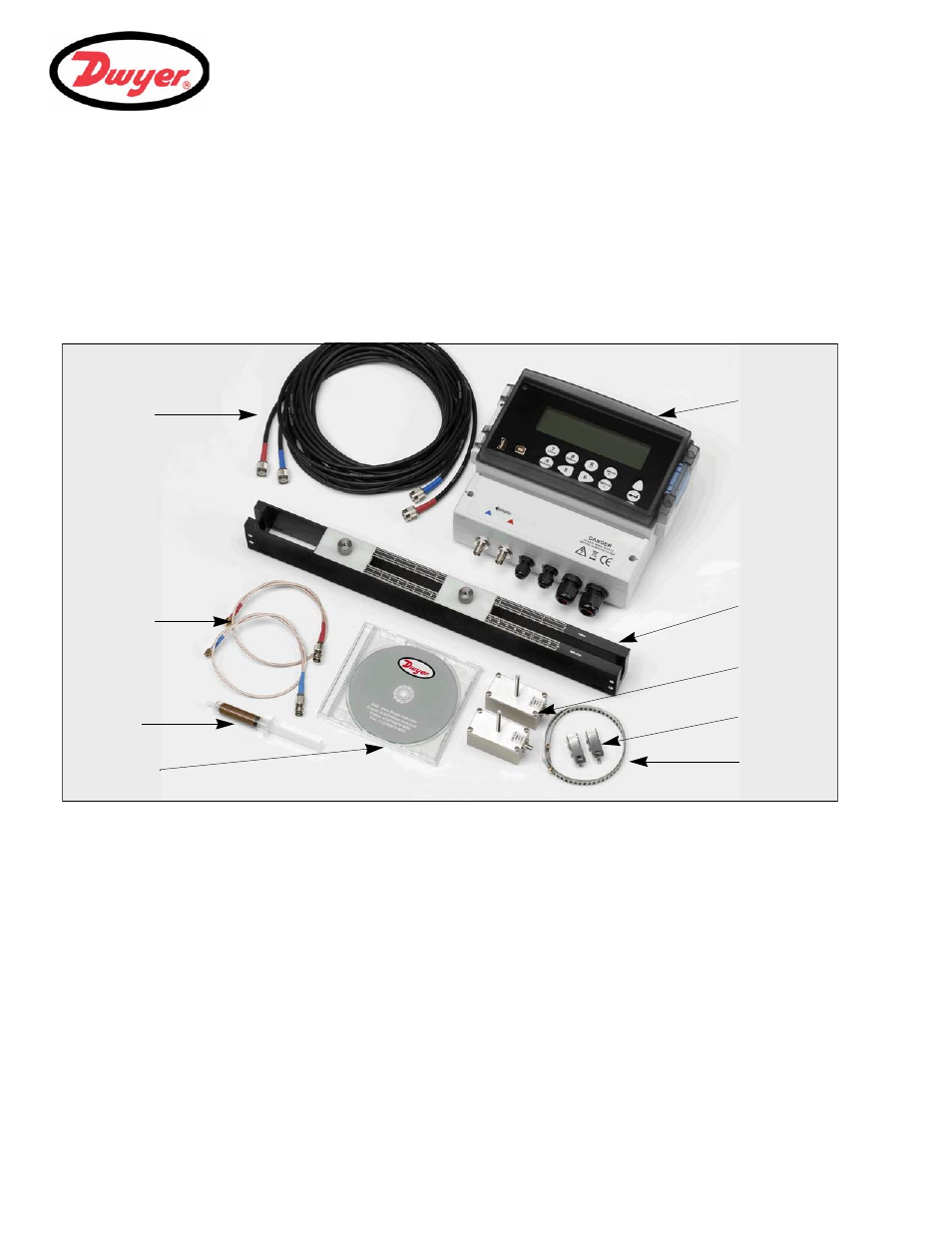

Figure 1.2 Standard UFC equipment
UFC Standard equipment
• Instrument with backlit graphic display.
• Transducer cables (x2) 16.5 feet (419 mm) in length.
• High temperature interface cables (x2).
• Transducers ‘A-ST’ x2 (UFC-A) for use with pipes ranging 0.5 to 4.5
inches (13 to 115 mm).
• Transducers ‘B-ST’ x2 (UFC-B) for use with pipes ranging 2 to 79 Inches (50 to 2000 mm).
• Transducer holder for use with ‘A’ or ‘B’ transducers.
• Steel bands used to secure the transducer holder to the pipe.
• Acoustic couplant applicator.
• USB Memory stick.
• User documentation.
UFC Optional equipment
• Transducer set 'D' can be used for monitoring pipes of 59 inches to 197 inches (1500 to 5000 mm) outside
diameter, over a temperature range -4°F to +176°F (-20°C to +80°C). This optional kit is supplied in a
Acoustic
Steel
Transducer
Transducers
(Sensors)
UFC
Instrument
Mounting
High
Transducer
Cables (x2)
User
Documentation
holder
Temperature
Interface
Cables (x2)
Couplant
Applicator
(Ax2, or Bx2)*
Clamps (x2)
Bands (x2)
