Pipe
Tee
½” male NPT
1/4” male NPT
Discharge Injection Fitting / Check Valve
Discharge Injection Fitting / Check Valve)
Pipe
Tee
Install
upward
for best
results
½” (1.3 cm)
Male NPT
½” (1.3 cm)
Male NPT
or
½” (1.3 cm)
Hose Barb
Suction Strainer
Injection Fitting and Strainer for ½” (1.3cm) I.D. Connection End Models
Suction Tubing and Strainer
Weight,
Ceramic
Suction Tubing, PVC
3/8" (.95 cm) OD X
1/4” (.64 cm) ID
Strainer,
Polypropylene
Duckbill - May reduce
calcium buildup when
injecting bleach.
Duckbill will add
additional back
pressure to pump (up
to 7 psi / .48 bar).
Remove duckbill to
reduce pressure or
when metering viscous
fluids.
Proper eye and skin protection must be worn when installing and servicing pump. ! CAUTION
This Pump Has Been Evaluated for Use with Water Only. ! CAUTION
PVDF
PVDF
O-Ring, Viton (optional EP)
O-Ring, T/FEP
(optional EP)
Spring, Hastelloy C-276
Ball, Ceramic
½” (1.3 cm)
Male NPT
or
½” (1.3cm)
Hose Barb
PVDF
PVDF
O-Ring, Viton
(optional EP)
Polypropylene
Removable
275 Micron
Filter
PVDF
Spring, Hastelloy C-276
PVDF
O-Ring, T/FEP (optional EP)
Ball, Ceramic
O-Ring, Viton (optional EP)
Duckbill, Santoprene
(optional)
PVDF
Flex-Pro
Injection Nose
may be trimmed
(removed) when
injecting into
small pipe.
Install upward
for best results
Injection Fitting and Strainer for 1/4” (.64cm) I.D. Connection End Models

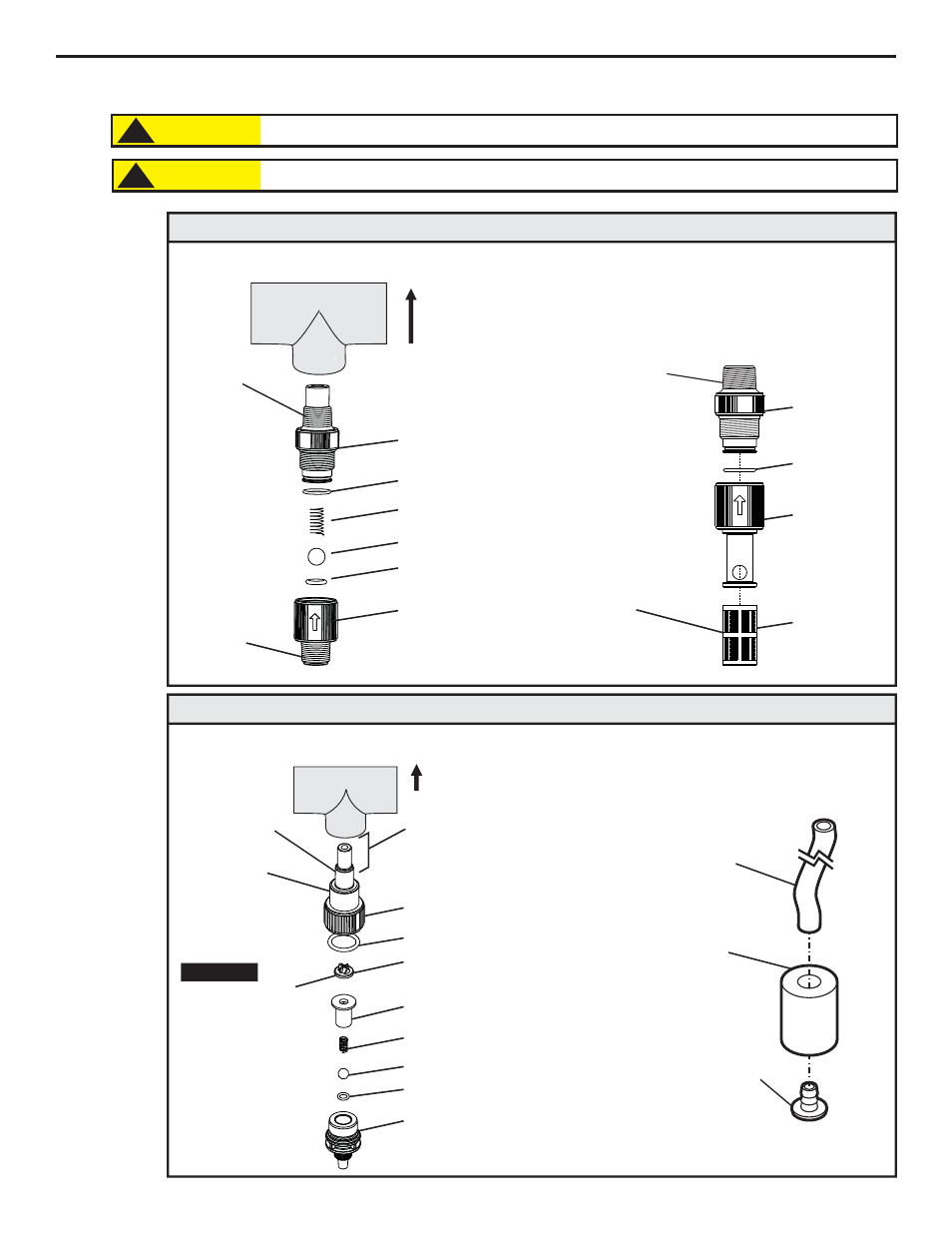

4.3 Installing Injection Fitting and Strainer
Important!
