Blue-White FLEX-PRO A2 ProSeries Peristaltic Pump - Manual (Page 23)

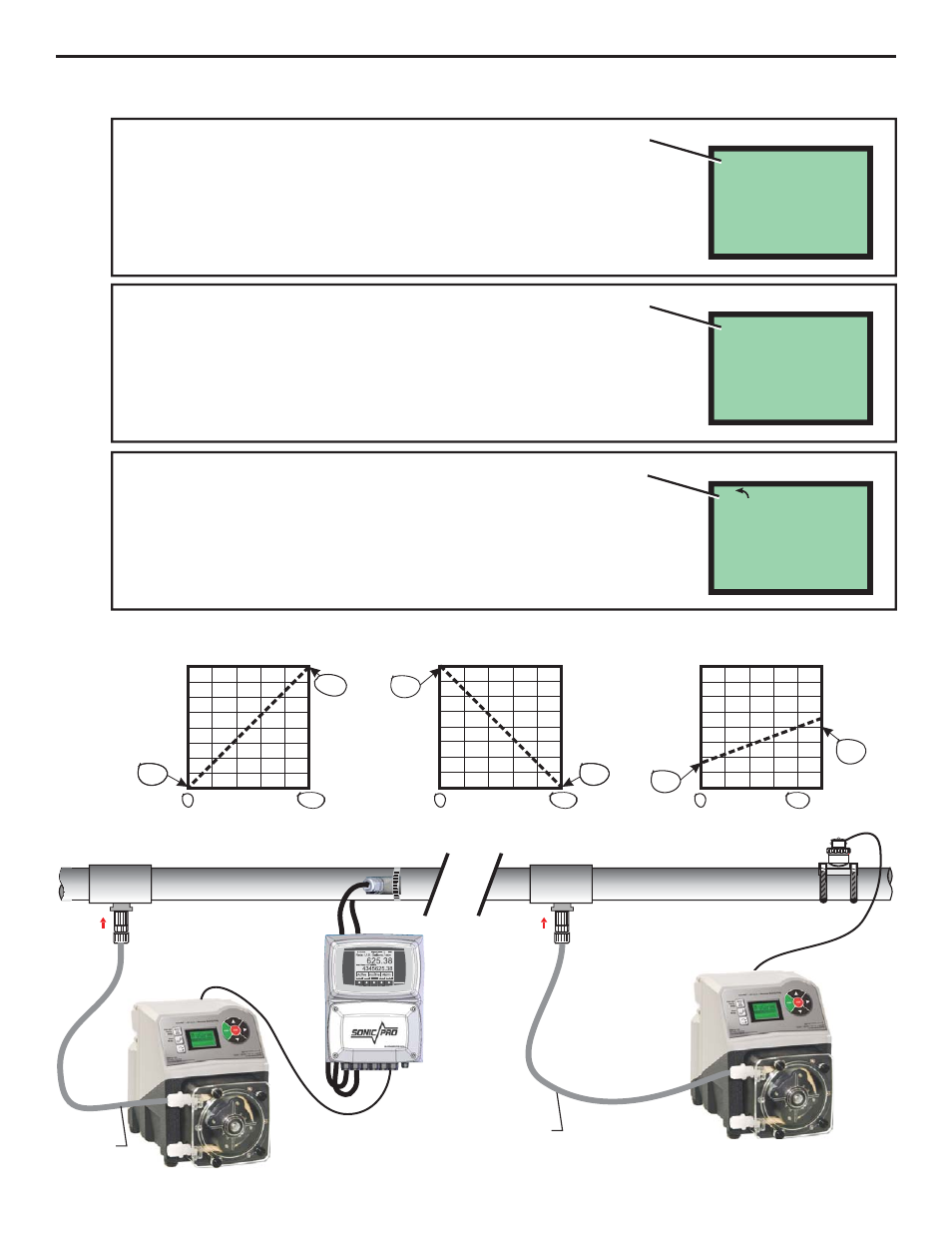

Page 23 Flex-Pro
Step 5
Pump speed at maximum Frequency will be displayed.
To increase value, press and release UP arrow.
To decrease value, press and release DOWN arrow.
To save value, press and release RIGHT arrow.
Mode 3
Step 7
To exit Setup, press and hold SELECT RUN MODE button
for a few seconds until you return to Run screen.
3
SPEED
Step 6
Maximum Frequency value will now be displayed.
To increase value, press and release UP arrow.
To decrease value, press and release DOWN arrow.
To save value, press and release RIGHT arrow.
1000
0.1
3
Mode 3
Mode 3
OFF
3
0%
Output
100%
Output
Hz
Hz
Injection
Point
S3 Series | Hybrid Ultrasonic Flowmeter NEMA 4X IP 66
Industries, Ltd. ProSeries by Blue-White Ind. TM Doppler /
Transit Time
Discharge
Line
Paddlewheel
Flow Sensor / Meter
Ultrasonic
Flow Meter
Injection
Point
Example #1, Ultrasonic flow meter Example #2, Paddlewheel flow meter
Discharge
Line
or
0 200 400 600 800 1000
0
25
50
75
100
Pump Motor Speed (%)
Frequency Input (Hz)
0 Hz = 0% Pump Output
1000 Hz = 100% Pump Output
0
25
50
75
100
0 Hz = 100% Pump Output
1000 Hz = 0% Pump Output
0
25
50
75
100
0 Hz = 20% Pump Output
800 Hz = 50% Pump Output
0%
Output
Pump Motor Speed (%)
Pump Motor Speed (%)
100%
Output
100%
Output
0%
Output
50%
Output
0 200 400 600 800 1000 0 200 400 600 800 1000
20%
Output
Frequency Input (Hz) Frequency Input (Hz)
Examples:
10.0 Mode 3 - Frequency Input (Hz) Operation - Continued
