6
Operating Instructions and Parts Manual SBS50 Boost
www.blueangelpumps.com
For Replacement Parts, call 1-888-636-6628
Please provide following information: Address parts correspondence to:
- Model number Blue Angel Pumps
- Serial number (if any) 101 Production Drive
- Part description and number as shown in parts list Harrison, OH 45030 U.S.A.

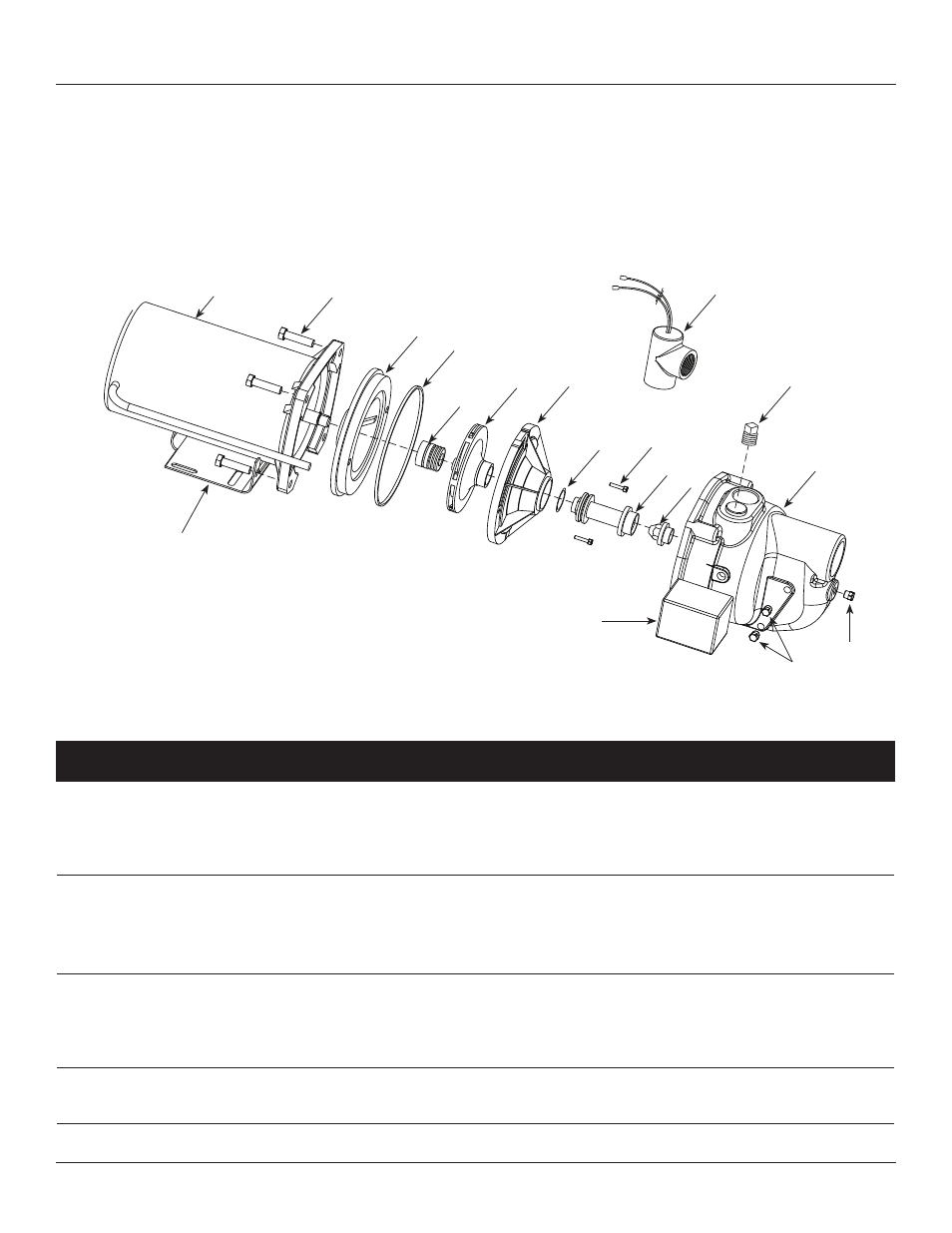

Ref.
No.
Description
Part
Numbers
Qty.
1 Motor 32059-001 1
2 Screw 16636-002
3 Seal plate 17145-001 1
4 • Square ring rubber gasket 17150-001 1
5 • Shaft seal assembly 56393 1
6 Impeller 23285-002 1
7 Diffuser 17148-001 1
8 Screw 67007-001
9 • O-ring 15557 1
10 Venturi 17151-002 1
11 Nozzle 15672 1
12 Pipe plug 3/4” 15921 1
13 Volute 56869-001 1
14 Pipe plug 1/4” NPT 16314-002 1
15 Pipe plug 1/8” NPT 15766-002 1
16 Base 23029-001 1
17 Pressure switch 30010-001 1
18 Flow switch 30048-001 1
• Repair kit (Includes #4, 5 and 9) 56874-001 1
17
16
15
14
13
12
11
10
9 8
7 6
5
4
3
2
1 18
