Blue Angel Pumps BEZJRPP50 - Manual

Rapid Restroom
331601-002 12/09
REMINDER: Keep your dated proof of purchase for warranty purposes! Attach it to this manual or file it for safekeeping.
Description
READ AND follow All INstRuctIoNs bEfoRE
bEgINNINg INstAllAtIoN
safety guidelines
This manual contains information that is very important
to know and understand. This information is provided for
SAFETY and to PREVENT EQUIPMENT PROBLEMS. To help
recognize this information, observe the following symbols.
Warning indicates a potentially
hazardous situation which, if not
avoided, could result in death or serious injury.
Caution indicates a potentially
hazardous situation which, if not
avoided, may result in minor or moderate injury.
Notice indicates important
information, that if not followed, may
cause damage to equipment.
NotE: Information that requires special attention.
cAlIfoRNIA pRoposItIoN 65
This product or its power cord may
contain chemicals known to the State
of California to cause cancer and birth defects or other
reproductive harm. Wash hands after handling.
• Be sure the floor is level within 1/8 in. for the
length and width of the tank
• Use soapy water to lubricate all seals to aid
installation
• Test unit before mounting toilet. Check On/Off
levels of switch.
• Do not over torque mounting screws
• Refer to owner’s manual for pump performance
and operation.
• If a built-in installation is to be used, locate tank
in an area that will allow access to the pump
and switch.
• For electrical information refer to local codes.
The toilet will not flush unless it is properly
vented.
sAVE tHEsE INstRuctIoNs
Installation procedures
unit Inspection
Inspect your unit very carefully before installing. Make
sure there are no punctures in the tank.
unit location
Once the unit has been inspected and cleared of any
transportation damage, select a location for installation
which is readily accessible to the existing discharge and
vent lines; as well as access to a 120 V AC grounded
3-prong receptacle.
Pump must be plugged into an
outlet receptacle that includes a
Ground Fault Circuit Interrupter (GFCI). In the event of
current leakage, a GFCI will trip, thus reducing the risk of
serious injury or death from electrical shock.
unit Installation
Inspect your system carefully before
installation; make sure there are no punctures in the tank.
During assembly, make sure no
screws, nails or other sharp objects puncture the tank.
1. If a built in installation is to be done, locate the
system in an area that will allow access to the pump
and switch after installation.
2. Determine the orientation of the toilet on the tank,
after determining the orientation install the brass
closet bolts provided (Figures 1 and 2).
Installation Instructions EXJRpp
The Professional’s Line
Please read and save these instructions. Read carefully before attempting to assemble, install, oper-
ate or maintain the product described. Protect yourself and others by observing all safety information.
Failure to comply with instructions could result in personal injury and/or property damage! Retain
instructions for future reference.
© 2009 Blue Angel ™ Pumps For parts, product & service information
visit www.waynewatersystems.com
see warranty on page 5 for important information about commercial use of this product

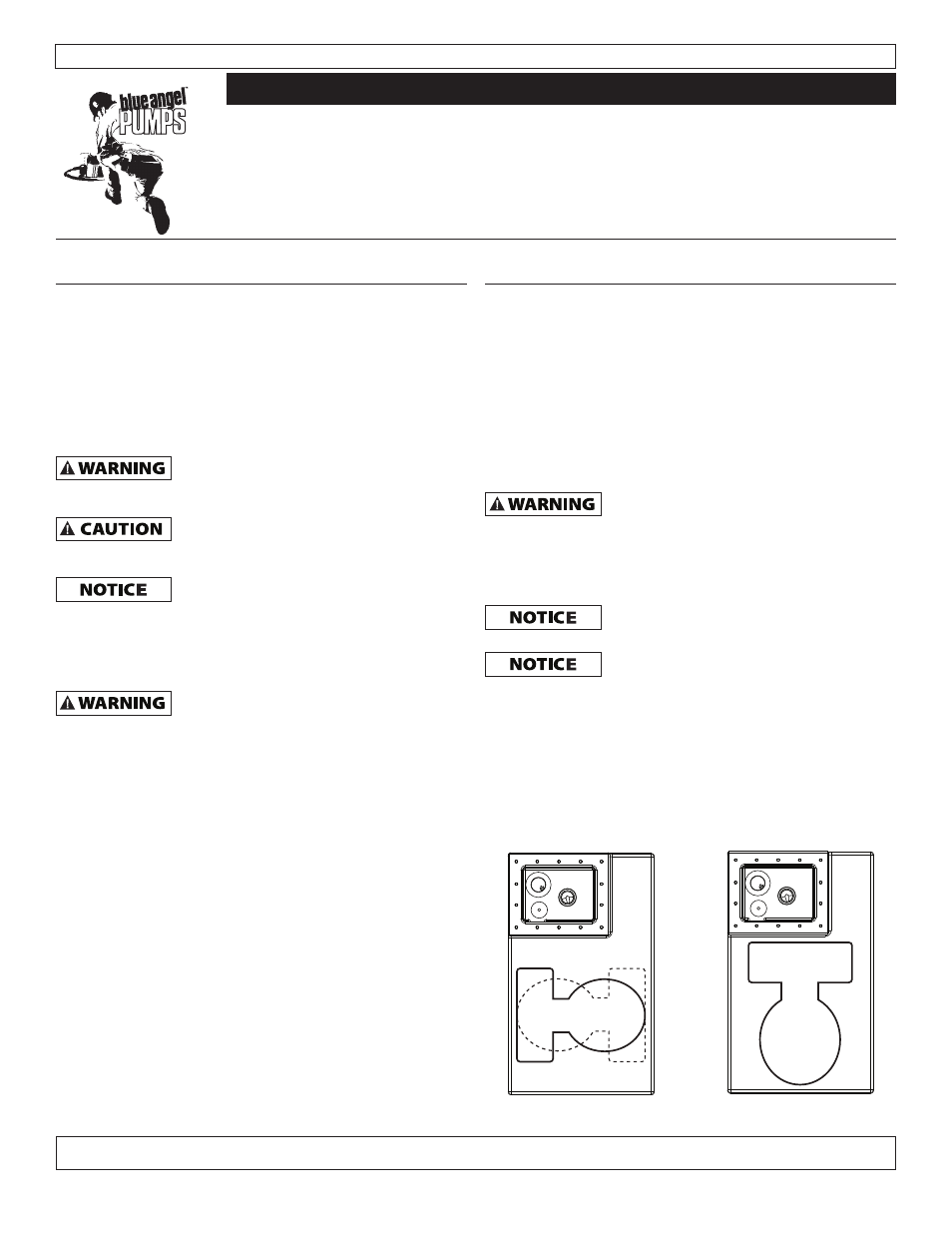

figure 1: toilet position figure 2: toilet position
