dIMenSIonS
DIMENSIONS
C B
A

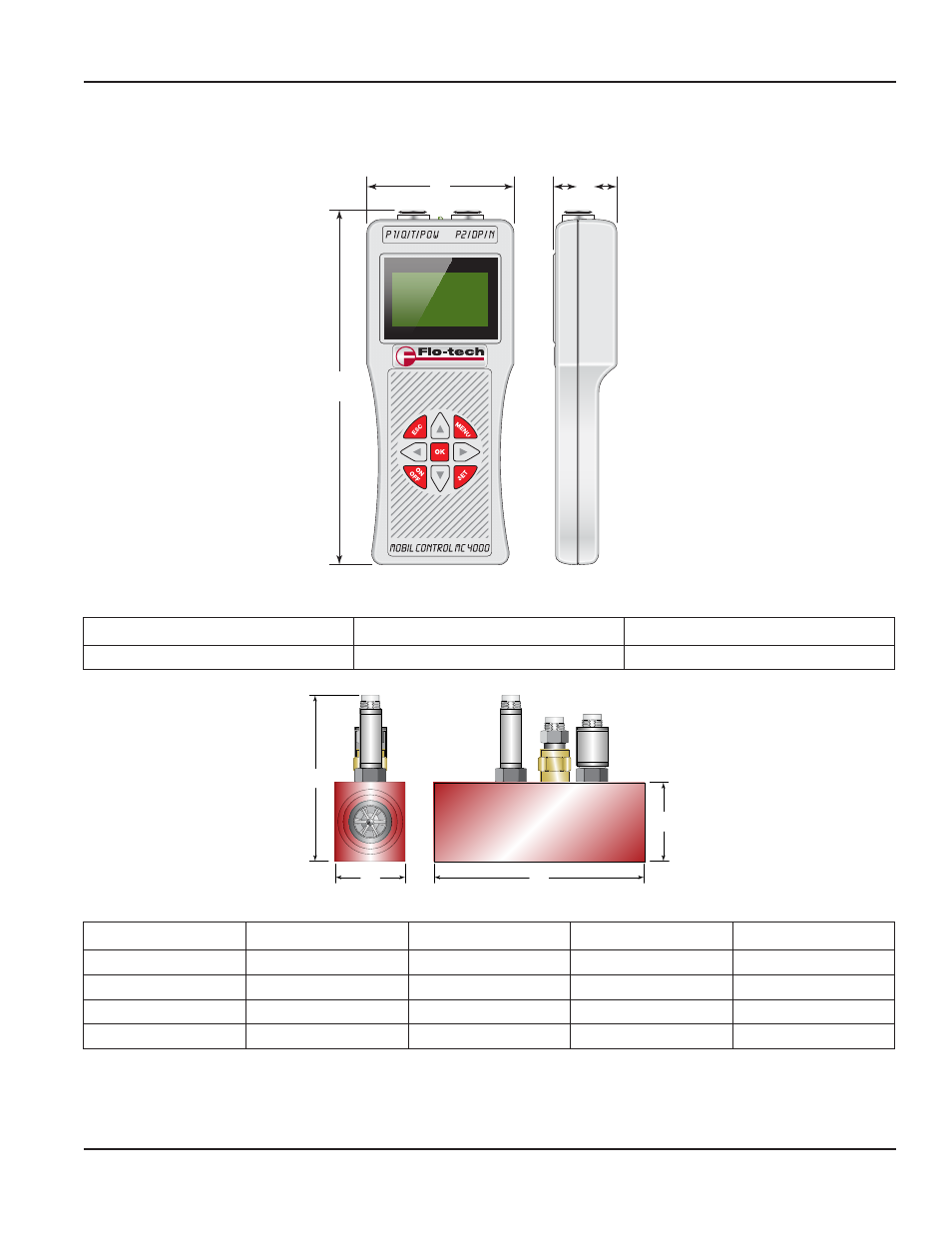

Figure 3: MC4000 monitor
A B C
8 70 in (221 mm) 3 62 in (92 mm) 1 62 in (41 mm)
B A
C
D
Figure 4: MC4000 sensor arrays
SERIES A B C D
SAE 8 (G 1/4) 1 23 in (31 2 mm) 4 72 in (120 0 mm) 1 47 in (37 3 mm) 3 91 in (99 3 mm)
SAE 12 (G 3/4) 1 50 in (37 6 mm) 5 08 in (129 0 mm) 1 80 in (45 7 mm) 4 24 in (107 7 mm)
SAE 16 (G 1) 1 96 in (50 3 mm) 5 87 in (149 0 mm) 2 20 in (56 0 mm) 4 64 in (117 9 mm)
SAE 20 (G 1–1/4) 2 46 in (62 5 mm) 6 81 in (173 0 mm) 2 48 in (63 0 mm) 4 92 in (125 0 mm)
