West Control Solutions MRC 8000 User Manual
Page 34

34
PAL1
dAL1
bAL1
PAL2
dAL2
SoP
tunE
bAL2
Pb1
Pb2
rSEt
ArSt
rAtE
Ct1
Ct2
SEnS
A
A
FoP
LIMIT SETPOINT OPERATION
The instrument must be in the Operate mode to allow setpoint value to be displayed and
adjusted. In the Operate mode, to view the setpoint, press and release the UP or DOWN key.
The displayed value is the setpoint. To change the setpoint value, press and hold the
appropriate key. Press and hold the UP key to increase the setpoint or press and hold the
DOWN key to decrease the setpoint. The setpoint will change slowly at first then faster as the
key is held.
To reset the limit output, press the RESET key after the limit condition has been cleared.
NOTE: The setpoint cannot be changed if the Limit setpoint has been exceeded.

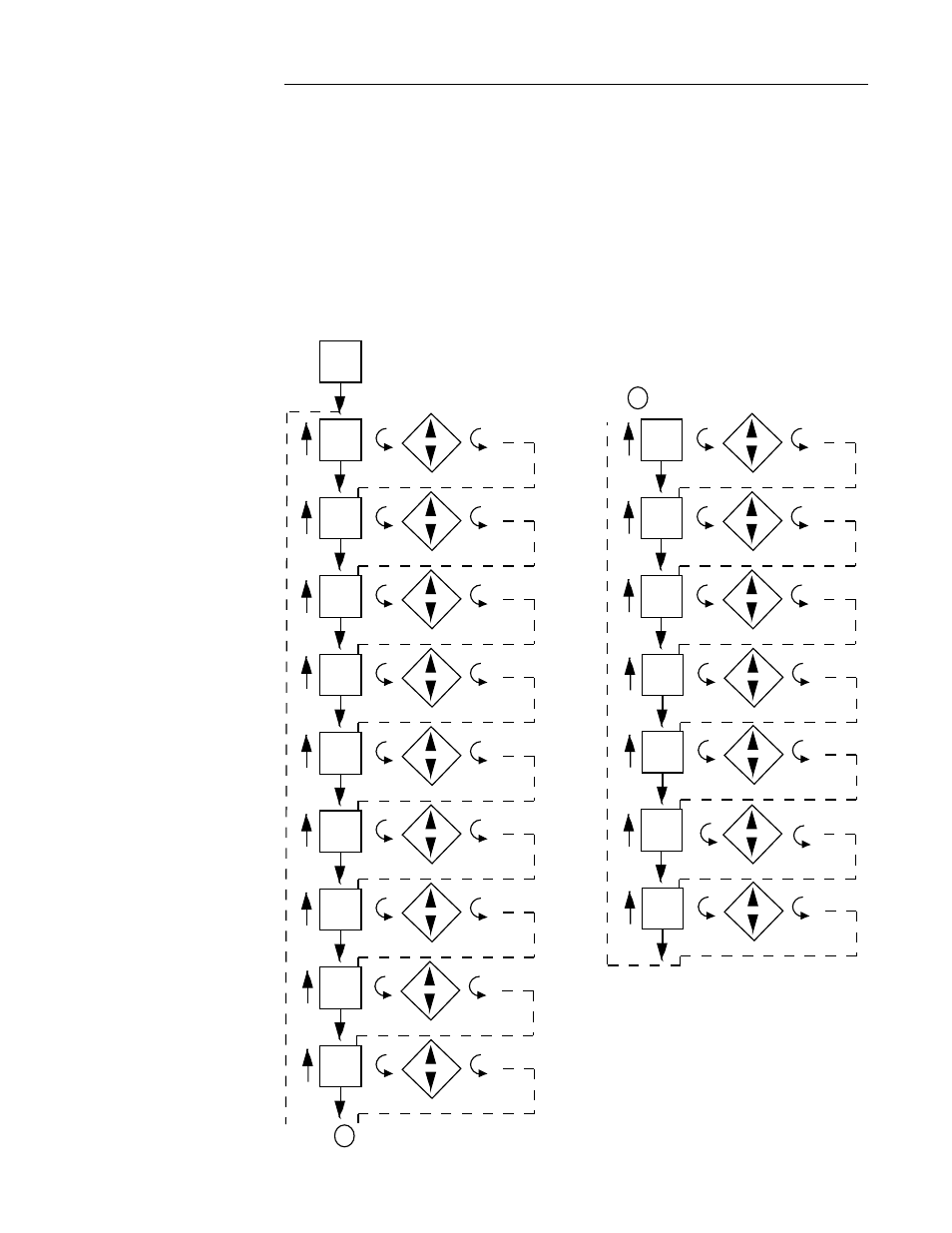

TUNE MODE FLOW CHART (APPLIES TO RECORDING CONTROLLERS)
