Connecting the probe to meter, 5 connecting the probe to meter – Thermo Fisher Scientific EcoScan Salt 6 User Manual
Page 12
Instruction Manual Salt 6
8
3.5
Connecting the Probe to Meter
1)
To connect electrode into meter, align the connector slots with the
posts of meter’s socket and rotate connector clockwise until it locks.
2)
To remove, simply rotate the connector in anti-clockwise direction
until it unlocks, and slide the connector off the socket.
3)
Insert the mini phono jack of temperature sensor into the socket on
the meter as shown in Figure below.
4)
Unplug the phono jack when not in use or when you want to
measure Conductivity or TDS without any temperature
compensation (Manual Temperature Compensation, see Section
5.2).
CAUTION: Do not pull or force on the probe cord or the probe
wires might disconnect.
NOTE: Keep connectors clean. Do not touch connector with
soiled hands.

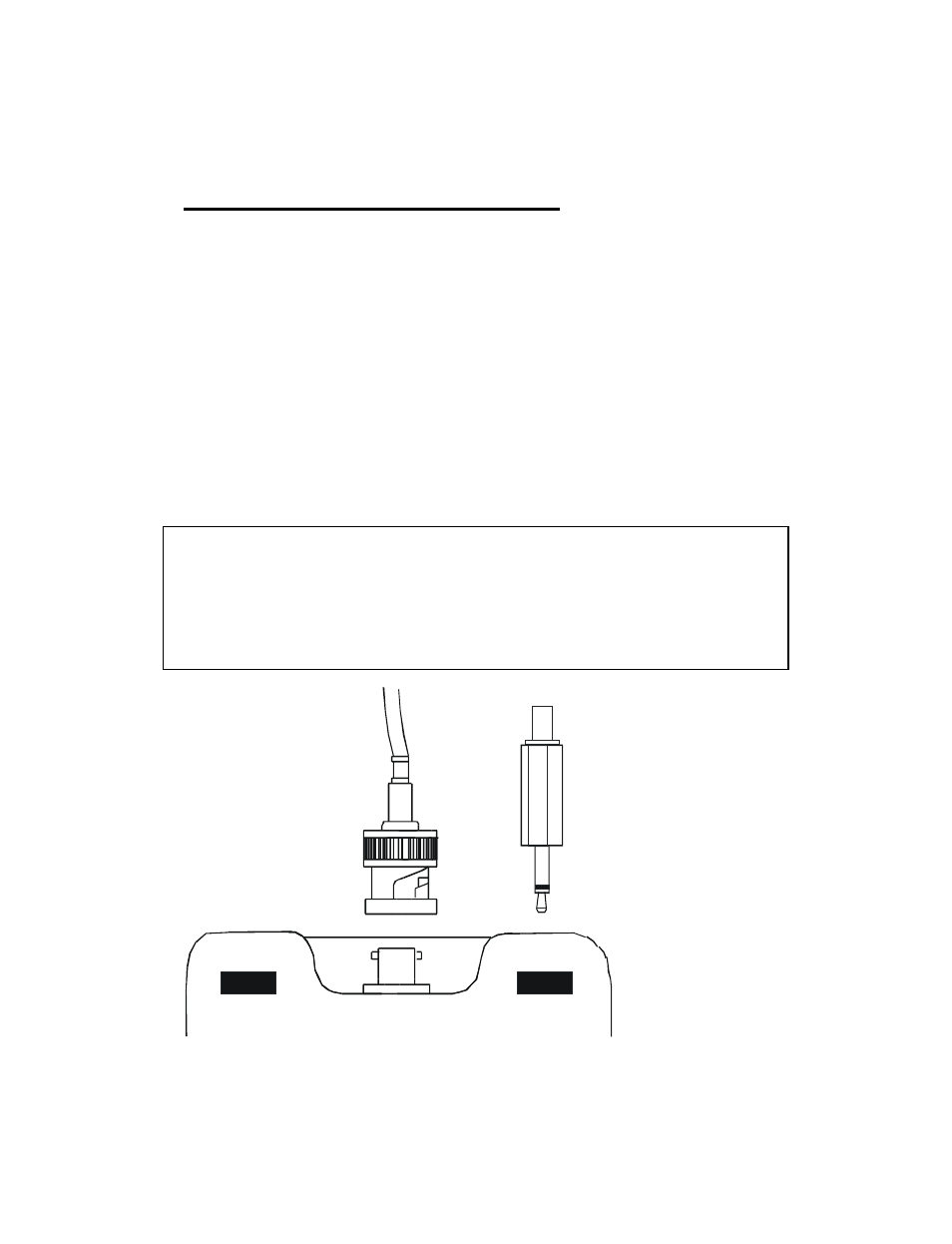

BNC connector for
conductivity probe
Phono jack for
Temperature probe
Connection for Conductivity & Temperature Probes
