User’s Manual
8

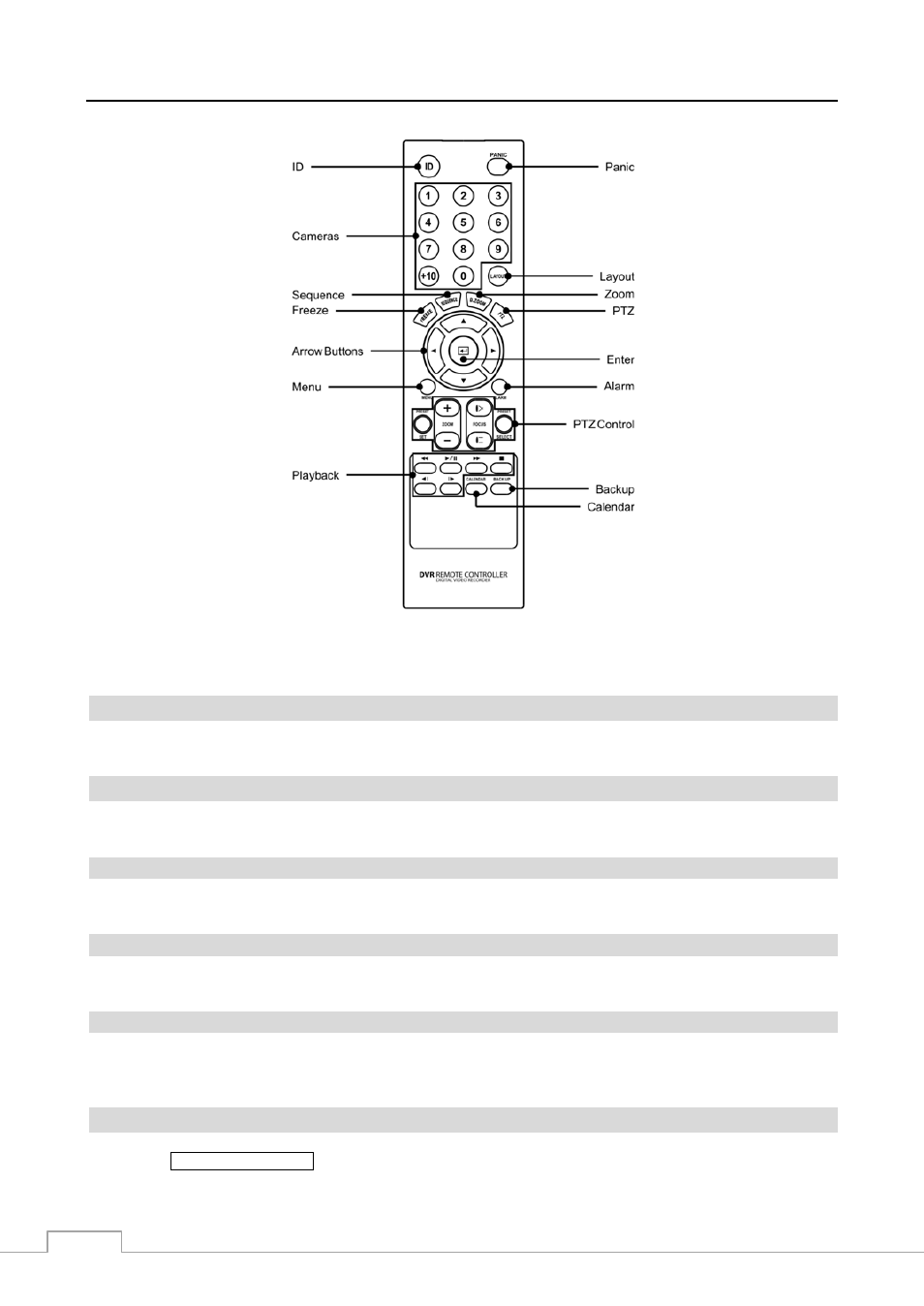

Figure 4 — Infrared remote control.
NOTE: For simplicity, the button descriptions in this manual refer to the front panel buttons.
Power LED
The Power LED is lit when the unit is On.
Network LED
The Network LED is lit when the unit is connected to a network via Ethernet.
HDD LED
The HDD LED flickers when the DVR is recording or searching video on the hard disk drive.
Alarm Out LED
The Alarm Out LED is lit when alarm output or internal buzzer is activated.
Camera Buttons (1 to 16)
Pressing the individual camera buttons will cause the selected camera to display full screen. Buttons 1 to 9 are also
used to enter passwords.
LAYOUT/SEQUENCE Button
Pressing the
LAYOUT/SEQUENCE
button toggles between different display formats. The available formats are: PIP,
2x2, 1+5, 1+7, 3x3 and 4x4.
