Chapter 2
Installing the E5810A
Installing and Configuring Agilent IO Libraries Suite
4
Specify the TCPIP interface that you wish to use to host this remote
interface, in the
TCPIP interface ID:
field. This must be an interface that
is already configured on your system; by default, a LAN interface
named
TCPIP0
is configured when you start or refresh Connection
Expert. To change timeouts and protocol properties for your remote
interface, you must change the properties of this TCPIP interface.
5
If your E5810 is on a different subnet from your client PC
, type the
hostname or IP address of the E5810 in the
Remote RS-232 Serial
Interface
dialog box. Change the value in the
Interface name on remote
host:
field, if necessary, to match the
RS-232 SICL Interface Name
displayed on the E5810
Welcome
page.
If your E5810 is on the same subnet as your client PC
, click
Find
Interfaces...

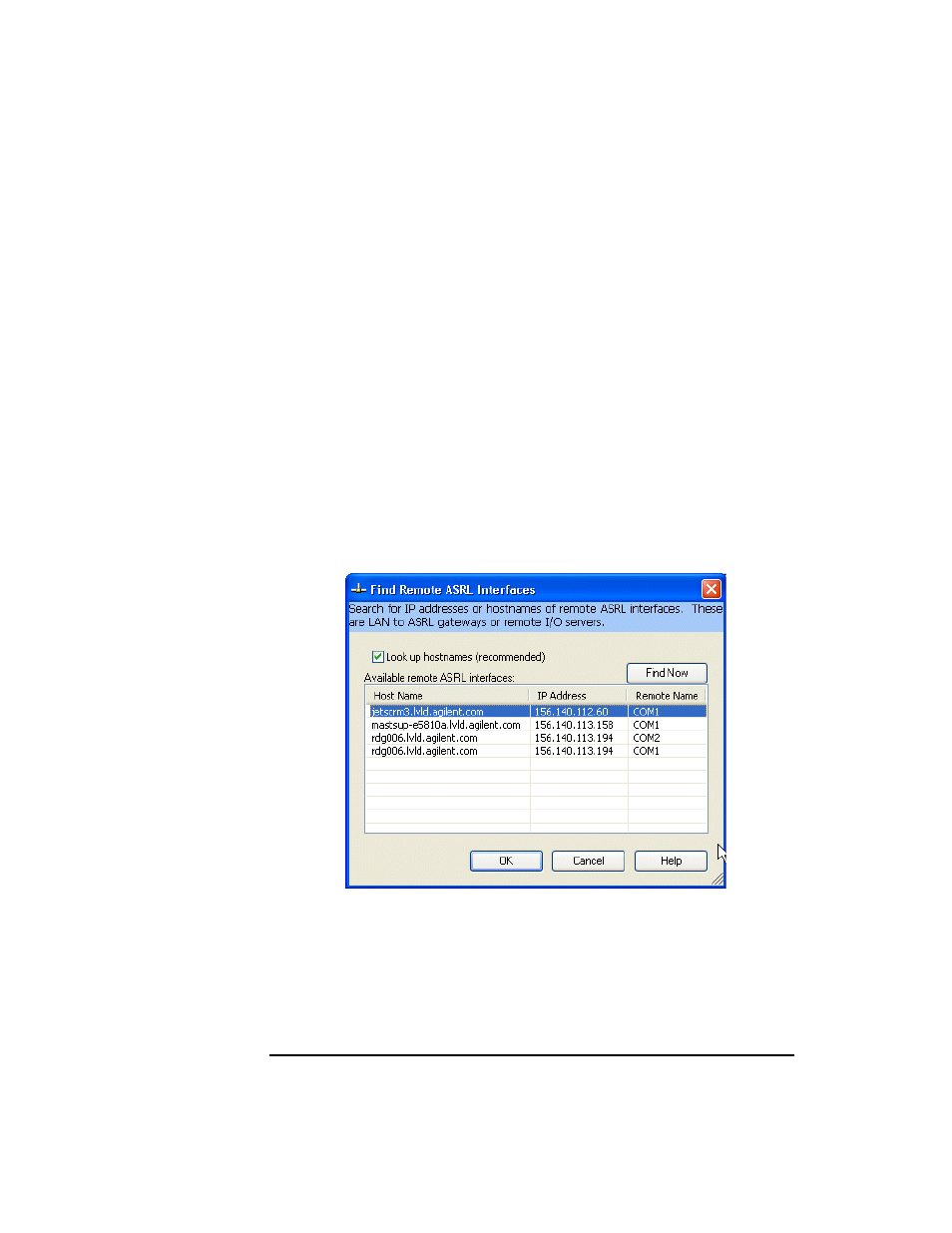

. Then, in the
Find Remote ASRL Interfaces
dialog, click
Find Now
, select your E5810 from the list, and click
OK
to return to the
Remote RS-232 Serial Interface
dialog box.
6
In the
Remote RS-232 Serial Interface
dialog box, click
Test connection
to
check connectivity to your E5810. If the test is successful, you will see
the message
The interface was successfully opened
. Click
OK
to close
the dialog box. You will see the new remote serial interface in the
Connection Expert’s explorer view.
