Installing the E5810A
Configuring the E5810A on a Local Network
Connecting the E5810A to a Local Network
This section shows how to connect the E5810 to a Local network using an
Ethernet hub/switch or a crossover cable.
E5810 Hub/Switch
Connections
This figure shows typical E5810 Ethernet hub or switch connections. Since
the E5810 has no AC Power switch, the Mains disconnect for the E5810 is
to unplug the AC power cord from the AC outlet.
Ethernet Hub/Switch
1. Connect LAN patch
cables (do NOT use
crossover cables)
4. Connect to AC Power

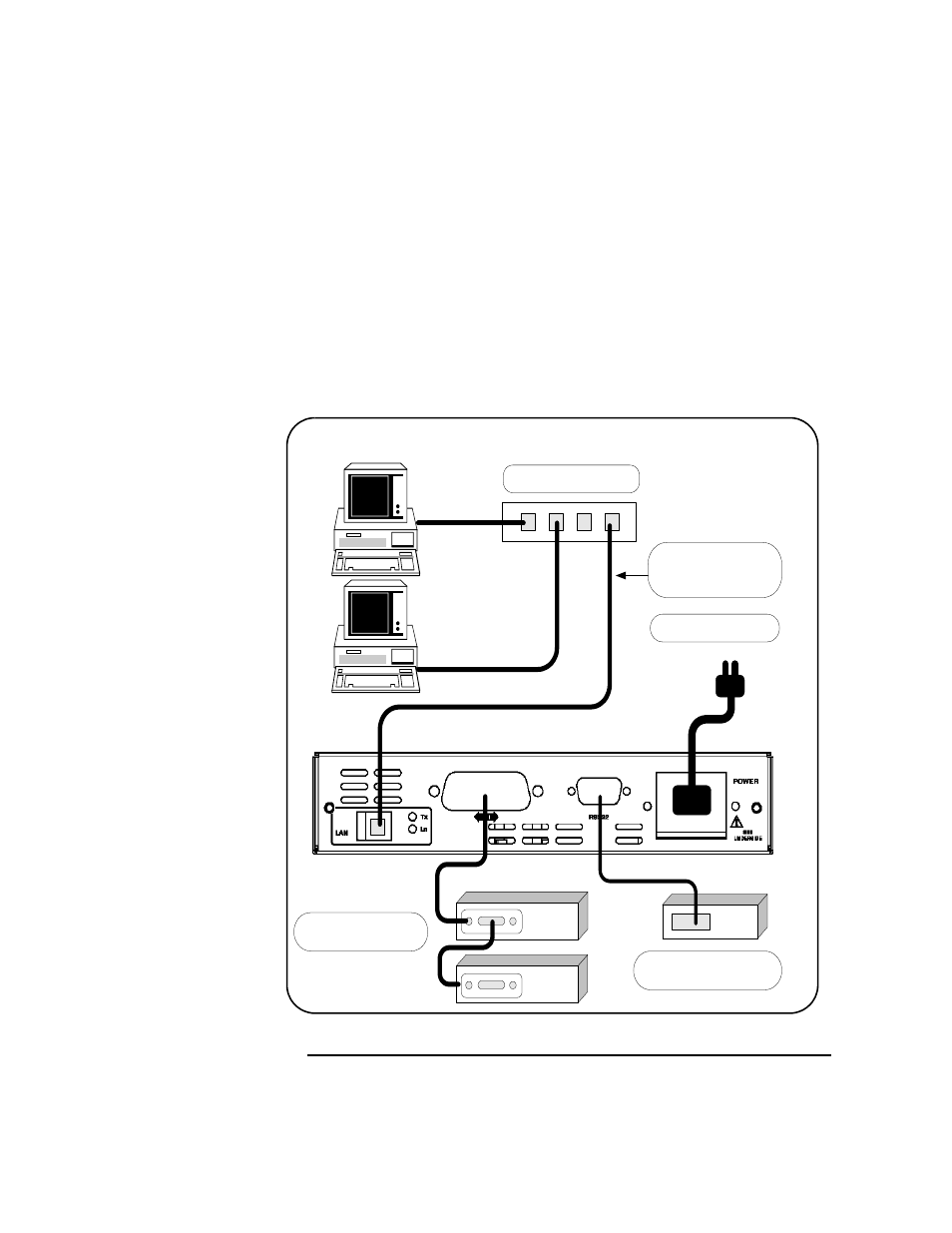

Typical Local Network Connections (Hub/Switch) (Two PCs)
2. Connect GPIB Cable
to GPIB Instrument(s)
3. Connect RS-232 Cable
to RS-232 Instrument
GPIB
GPIB
